FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

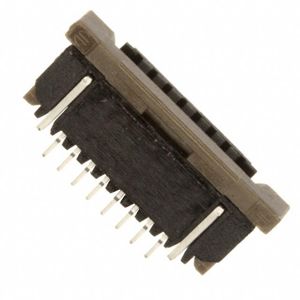

SFW8R-4STE1LF
CONN FFC FPC TOP 8POS 1.00MM R/A

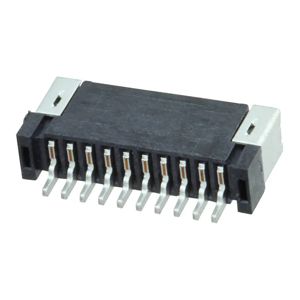

FC1-10-02-T-WT-TR
1MM SINGLE ROW CONNECTOR

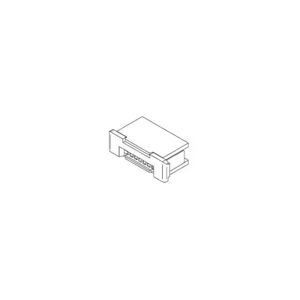

52043-1619
1.0 FPC ZIF RA HSG ASSY 16CKT

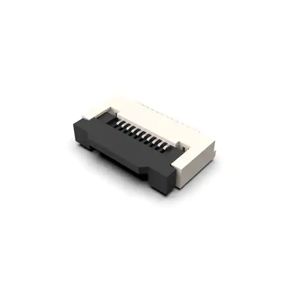

FFC2B35-10-T
10W,0.5MM FFC CON,R/A,BOTTOM CON

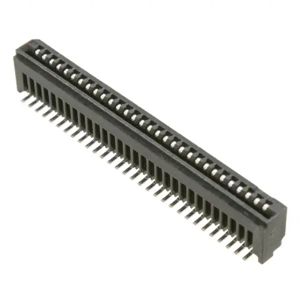

30FMN-BMT-A-TF(LF)(SN)
CONN FFC VERT 30POS 1.00MM SMD

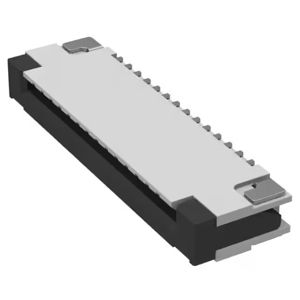

CF07141U0R0-NH
CF07 SERIES 1.00MM(.039") ZIF SI

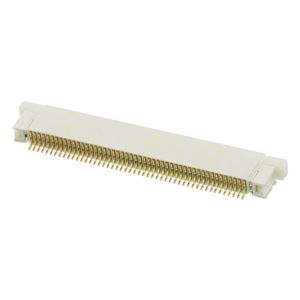

4-1734839-9
CONN FPC TOP 49POS 0.50MM R/A

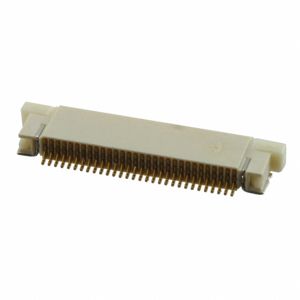

3-1734839-0
CONN FPC TOP 30POS 0.50MM R/A

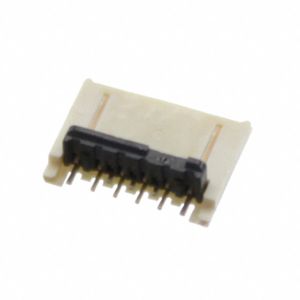

FH64MA-7S-0.25SHW(99)
CONN FPC 0.25MM SMD R/A 7POS

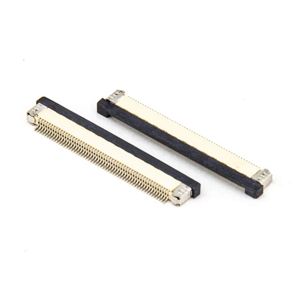

2345-C30TD2T
FFC/FPC SOCKET, .5MM PITCH, 30 P

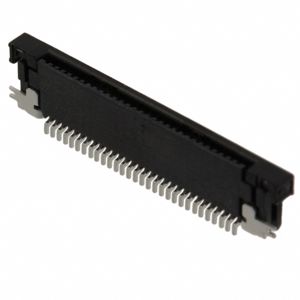

SFV30R-1STE1HLF
CONN FFC BOTTOM 30POS 0.50MM R/A

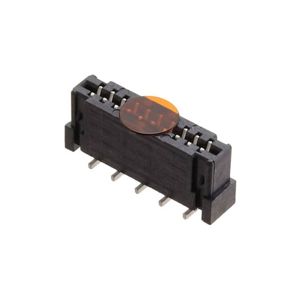

FC1-10-01-T-K-TR
1MM SINGLE ROW CONNECTOR

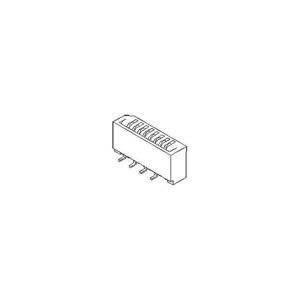

52808-2571
1.0 FFC NON ZIFHSGASSY25CKTW/TPE
501912-2790
CONN FPC BOTTOM 27POS 0.30MM R/A

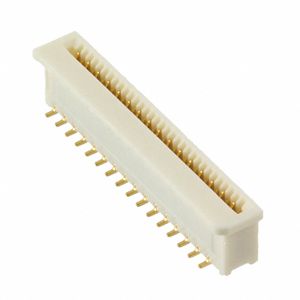

0781271328
CONN FFC VERT 32POS 0.50MM SMD

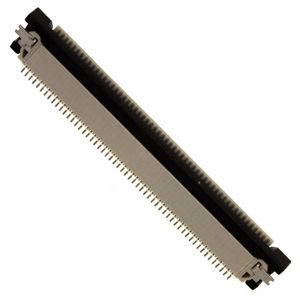

62684-5521N0ALF
CONN FPC TOP 55POS 0.50MM R/A

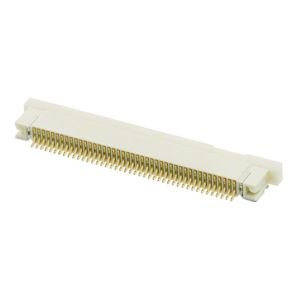

4-1734592-3
CONN FPC BOTTOM 43POS 0.50MM R/A

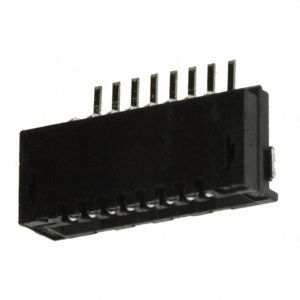

046232108103800+
CONN FFC FPC TOP 8POS 1.00MM R/A

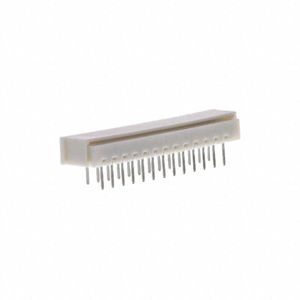

0039532264
CONN FFC TOP 26POS 1.25MM R/A

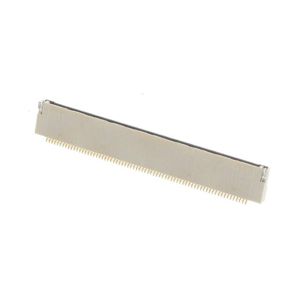

046288070000846+
0.5MM PITCH - 70 POS - RIGHT ANG
