FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

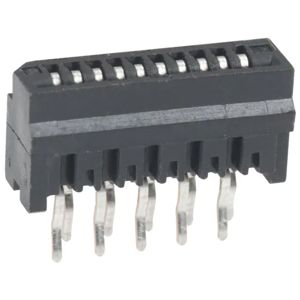

HLW10S-2C7LF
CONN FFC FPC VERT 10POS 1MM PCB

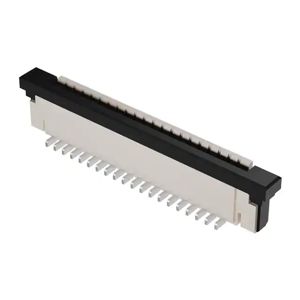

FFC3A20-06-T
06W, 1MM FFC CON, VERT, H5.5MM,
0527460433
CONN FFC BOTTOM 4POS 0.50MM R/A

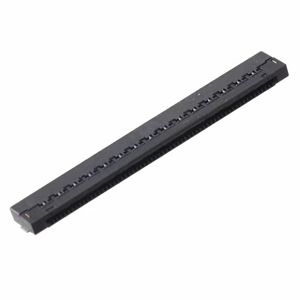

5033666011
CONN FFC BOTTOM 60POS 0.50MM R/A

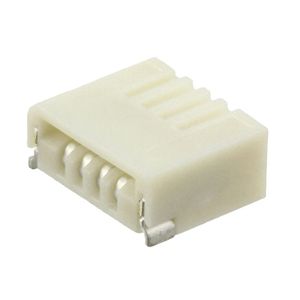

1735360-4
CONN FFC BOTTOM 4POS 1.00MM R/A

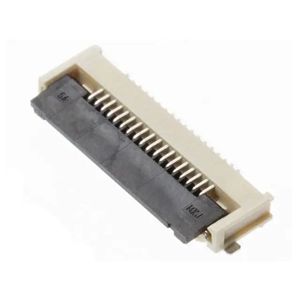

5052781033
0.5 FFC ZIF BTM CONT EMBT PKG 10

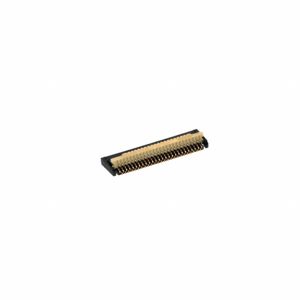

AYF215135A
CONN FPC 51POS 0.2MM SMD R/A

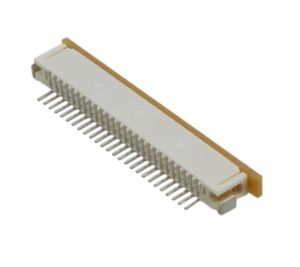

0522712679
CONN FPC BOTTOM 26POS 1.00MM R/A

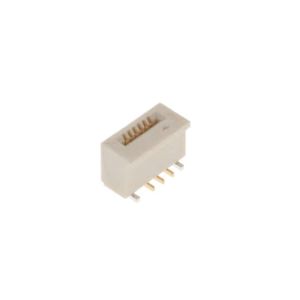

F31K-1A7H1-11006
FLEX CONNECTOR, 0.50MM PITCH, HE

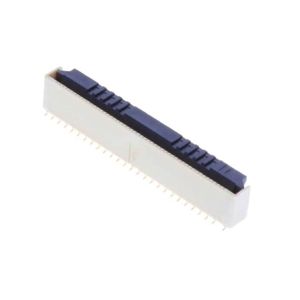

TF38-50S-0.5SV(830)
CONN FFC 50POS 0.50MM SMD
5-487508-7
CONN FFC FPC TOP 8POS 2.54MM R/A

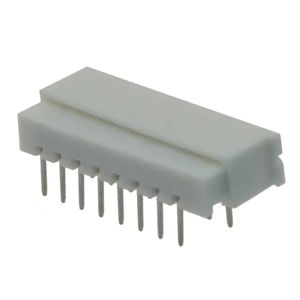

0039532164
CONN FFC TOP 16POS 1.25MM R/A

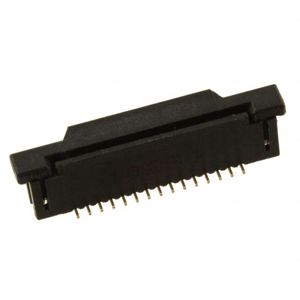

1-1734248-5
CONN FPC VERT 15POS 1.00MM SMD

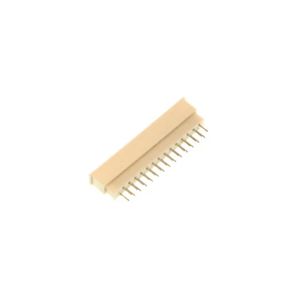

0039532285
CONN FFC VERT 28POS 1.25MM PCB

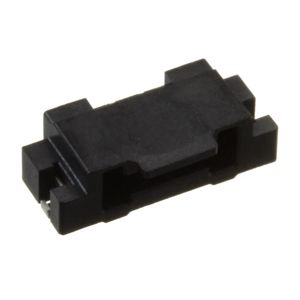

5051470290
CONN FPC BOTTOM 2POS 2MM SMD R/A

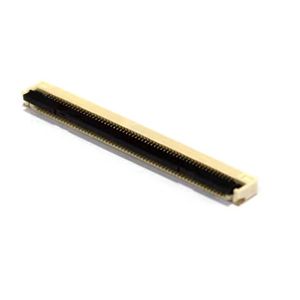

PF050-L60B-C21
FPC/FFC 0.5PITCH 60PIN H=2.1MM N

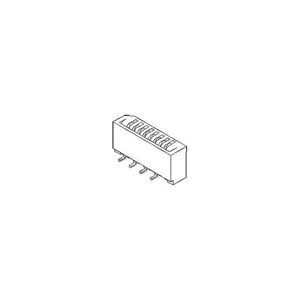

52808-1770
1.0 FFC NONZIFSMTSTHSGASSY17CKTE

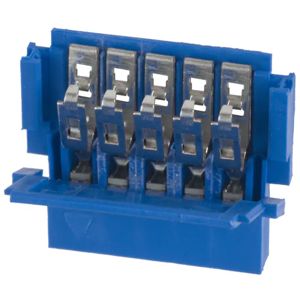

65801-005LF
CONN FFC FPC RCPT 5POS 2.54MM

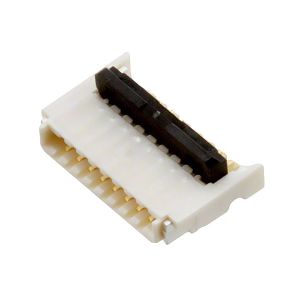

5034800800
CONN FFC FPC 8POS 0.50MM R/A

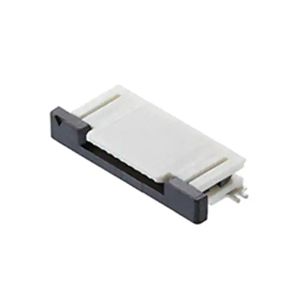

0527451833
CONN FFC TOP 18POS 0.50MM R/A
