FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

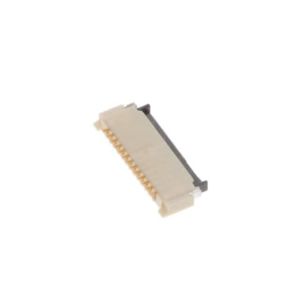

046809613110846+
0.5MM PITCH - 13 POS - RT ANGLE

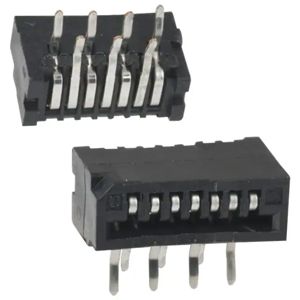

HLW7R-2C7LF
CONN FFC FPC TOP 7POS 1.00MM R/A

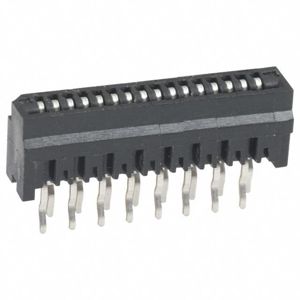

HLW16S-2C7LF
CONN FFC FPC VERT 16POS 1MM PCB

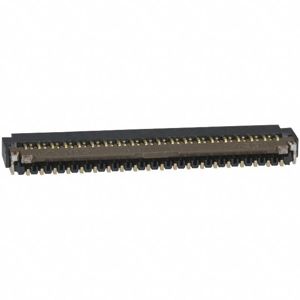

FH26W-39S-0.3SHW(60)
CONN FPC/FFC 39POS .3MM

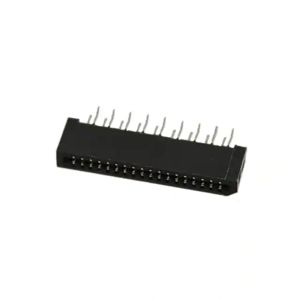

PCB-C-18-T-20
FPC/FFC CONNECTOR, LIF TYPE, 1.0

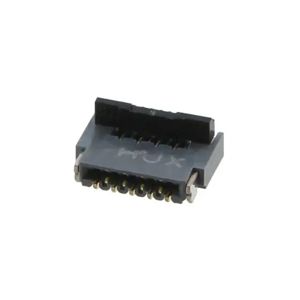

FH35C-9S-0.3SHW(50)
CONN FPC 9POS 0.30MM R/A

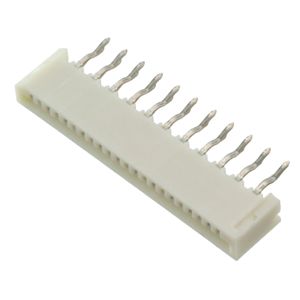

0528062210
CONN FPC VERT 22POS 1.00MM PCB

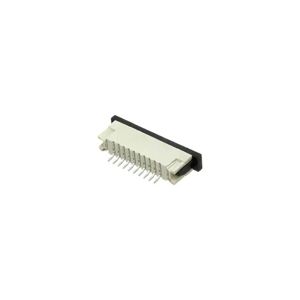

ZF1-10-01-T-WT-TR
ZERO INSERTION FORCE 1MM ASSY

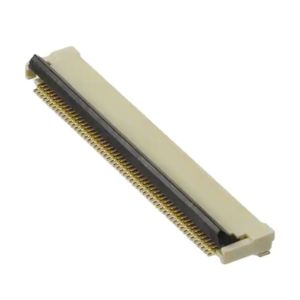

XF2M-5415-1AH
CONN FPC 54POS 0.50MM R/A
PCB-C-09-T-20
FPC/FFC CONNECTOR, LIF TYPE, 1.0

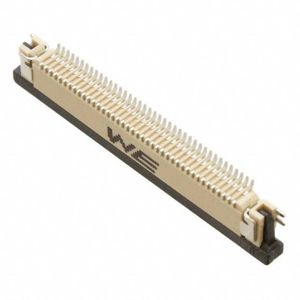

68714014522
CONN FPC BOTTOM 40POS 0.50MM R/A

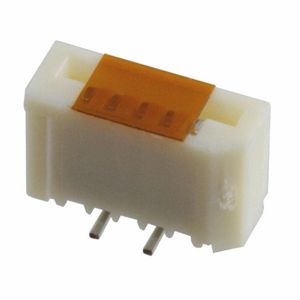

0528080571
CONN FFC FPC VERT 5POS 1MM SMD

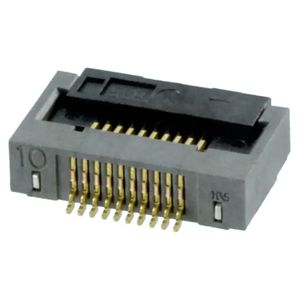

FH28-10S-0.5SH(11)
CONN FFC BOTTOM 10POS 0.50MM R/A

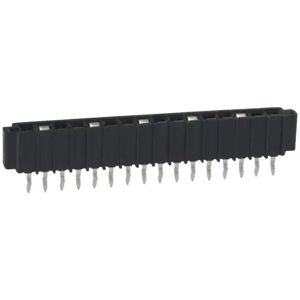

6-520315-6
CONN FFC VERT 16POS 2.54MM PCB

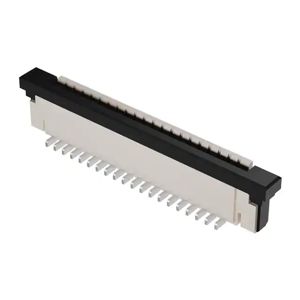

FFC3A20-09-T
09W, 1MM FFC CON, VERT, H5.5MM,

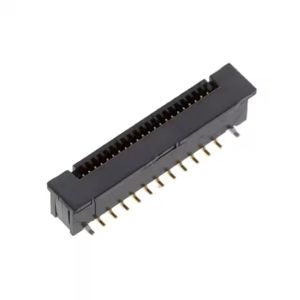

62674-221121ALF
CONN FFC VERT 22POS 0.50MM SMD

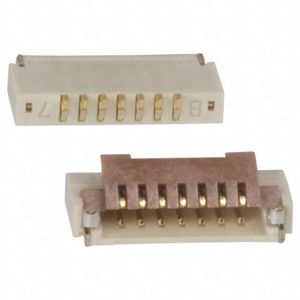

FH19C-7S-0.5SH(10)
CONN FFC BOTTOM 7POS 0.50MM R/A

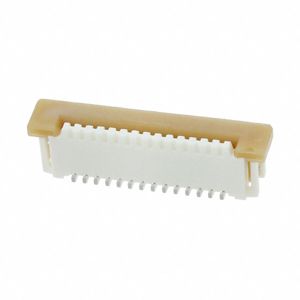

0526101434
CONN FPC VERT 14POS 1.00MM SMD

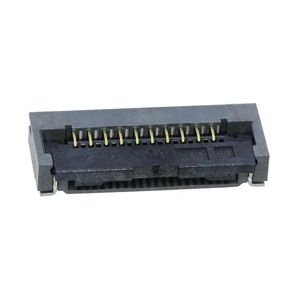

FH28D-20(10)SB-1SH(98)
CONN FFC BOTTOM 20POS 1.00MM R/A

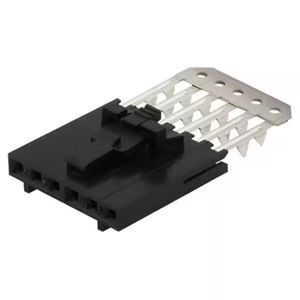

15-47-4163
SL FFC/FPC OPT G FEMALE 15 SAU 1
