FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

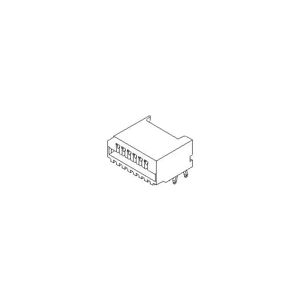

52044-2145
21CKT 1.25 FFC CONN ASSY

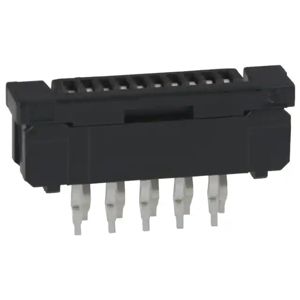

SLW10S-1C7LF
CONN FFC FPC VERT 10POS 1MM PCB

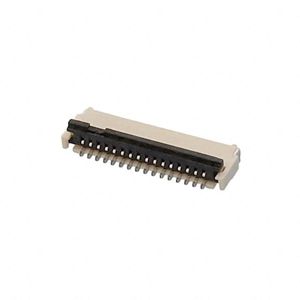

687116182122
CONN FFC FPC 16POS 0.5MM R/A

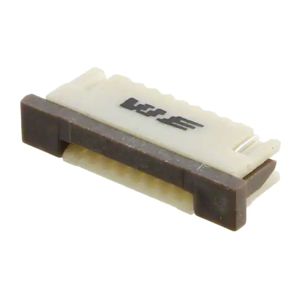

68610814422
CONN FPC BOTTOM 8POS 1.00MM R/A

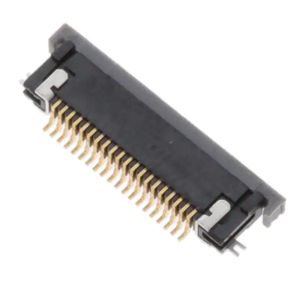

SFV20R-3STBE1HLF
CONN FPC BOTTOM 20POS 0.50MM R/A

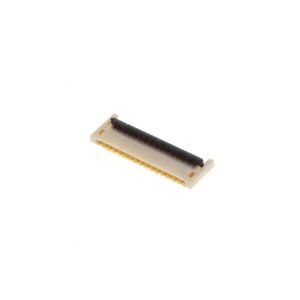

046293631005829+
0.3MM PITCH - 31 POS - RT ANGLE

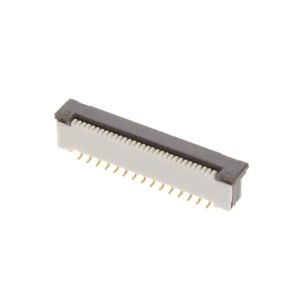

046214030010846+
0.5MM PITCH - 30 POS - VERTICAL

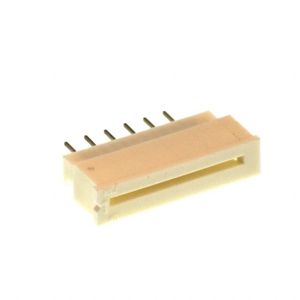

0039532125
CONN FFC VERT 12POS 1.25MM PCB

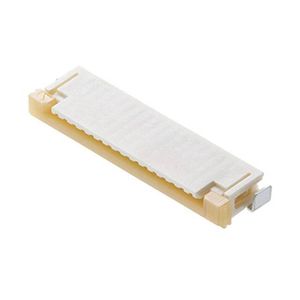

52207-2160
1.0 FPC ZIF SMT HSG ASSY 21CKT E

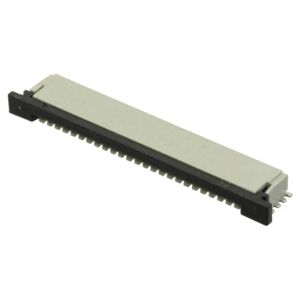

2-84952-4
CONN FPC BOTTOM 24POS 1.00MM R/A

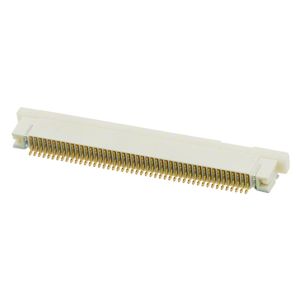

4-1734592-7
CONN FPC BOTTOM 47POS 0.50MM R/A

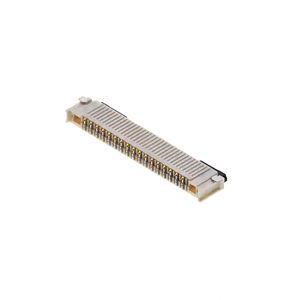

2005280170
1.0 FPC ZIF BTM CONT EMBT PKG 17

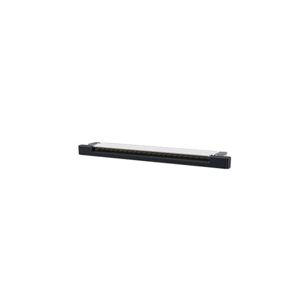

F52Q-1A7H1-11004
FLEX CONNECTOR, 1.00MM PITCH, HE

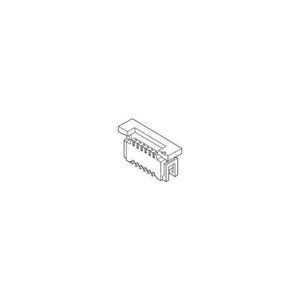

52610-1133
1.0 FPC ZIF SMT ST 11CKT EMBSTP

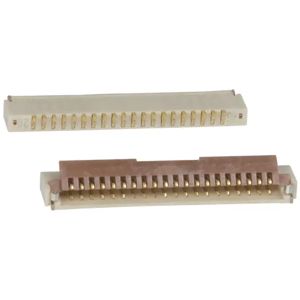

FH19C-20S-0.5SH(10)
CONN FFC BOTTOM 20POS 0.50MM R/A

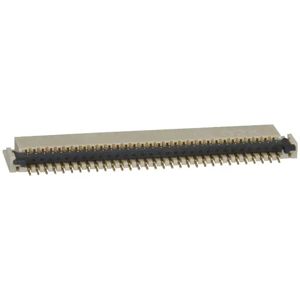

FH23-61S-0.3SHAW(05)
CONN FPC BOTTOM 61POS 0.30MM R/A

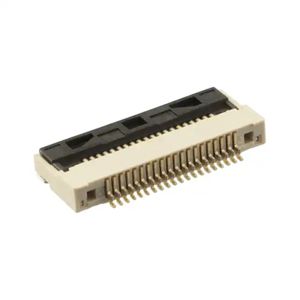

046288020000846+
CONN FFC BOTTOM 20POS 0.50MM R/A

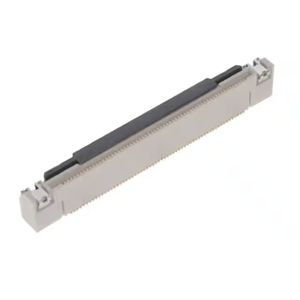

046810660002846+
CONNECTOR 6810 SERIES
3-1735042-0
CONN FFC FPC VERT 30POS 1MM SMD

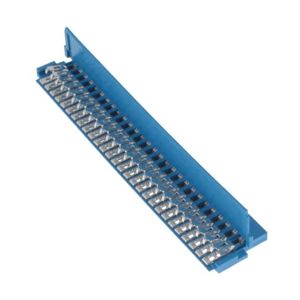

65801-028LF
CONN FFC FPC RCPT 28POS 2.54MM
