FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

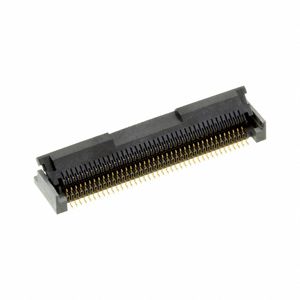

FH30-80S-0.3SHW(05)
CONN FPC BOTTOM 80POS 0.30MM R/A
CF25141D0R0-10-NH
CF25 SERIES 1.00MM(.039") ZIF ON

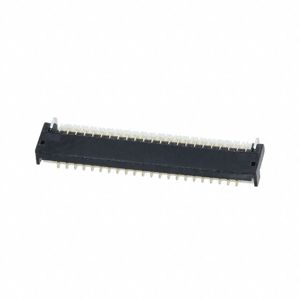

1-2040832-8
CONN FPC BOTTOM 45POS 0.25MM RA

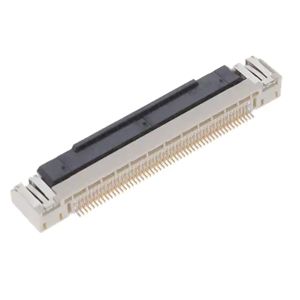

046810650021846+T
FPC 0.5MM

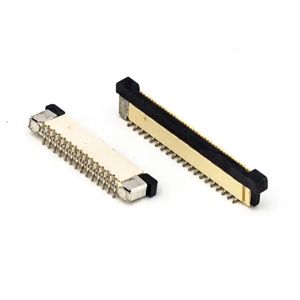

2345-C40TD3AT-P
FFC/FPC SOCKET, .5MM PITCH, 40 P

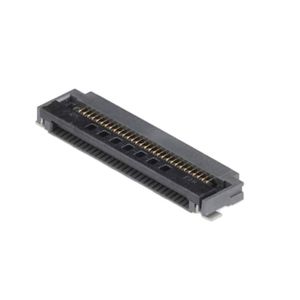

FH52E-30S-0.5SH(99)
CONN FFC 30POS 0.5MM SMD

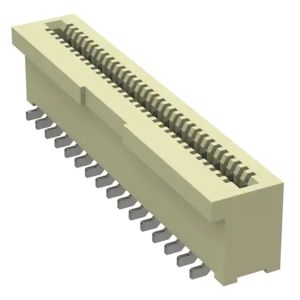

CF24322V0R0-NH
CF24 SERIES 0.50MM(.020") LIF TO
5025985193
CONN FPC 51POS 0.30MM R/A

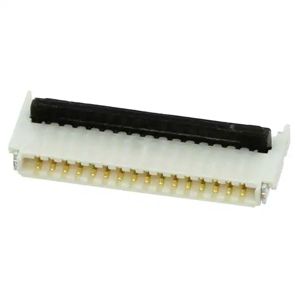

5034801600
CONN FFC FPC 16POS 0.50MM R/A

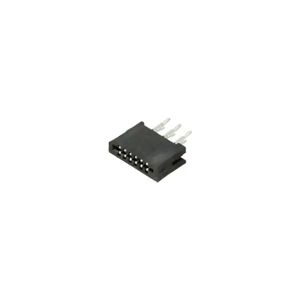

PCB-C-06-T-20
FPC/FFC CONNECTOR, LIF TYPE, 1.0

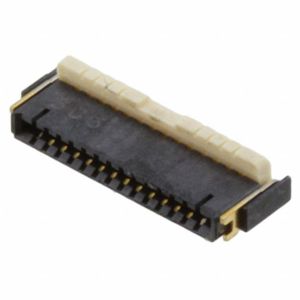

AYF531265T
CONN FPC 12POS 0.50MM R/A

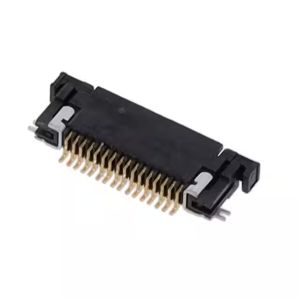

SFV16R-2STBE1HLF
CONN FFC TOP 16POS 0.5MM SMD R/A

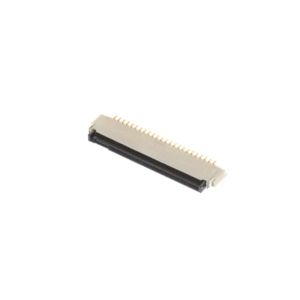

046809624210846+
0.5MM PITCH - 24 POS - RT ANGLE
PF018-C17B-N07
[FJ] FPC 0.175PITCH 17PIN H=0.65

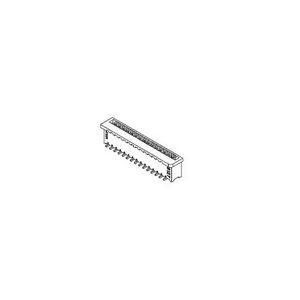

78127-1268
0.5 FPC CONN. VERTICAL SMT NON-Z

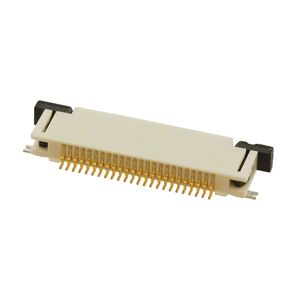

0524352471
CONN FFC TOP 24POS 0.50MM R/A

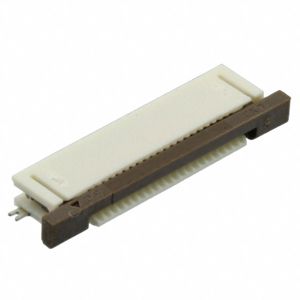

0524372271
CONN FFC BOTTOM 22POS 0.50MM R/A

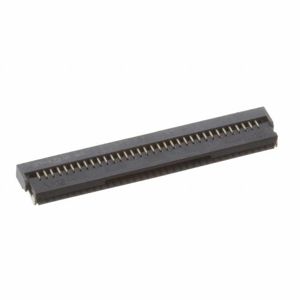

FH65-34S-0.5SH(99)
CONN FFC/FPC 34POS 0.50MM SMD R/

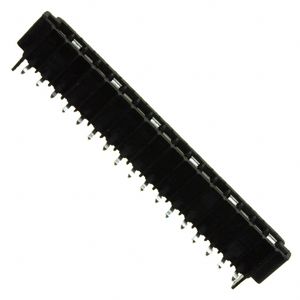

6-487508-8
CONN FFC TOP 17POS 2.54MM R/A

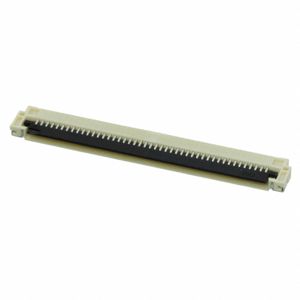

0512964533
CONN FFC BOTTOM 45POS 0.50MM R/A
