Optics - Light Pipes: Illuminating Solutions for Optoelectronic Applications
Definition:
Light pipes, a specialized category within Optoelectronics, are optical components designed to efficiently transmit and distribute light from a source to a desired location. These devices utilize principles of total internal reflection (TIR) to guide light with minimal loss, making them ideal for applications requiring precise illumination, signal indication, or aesthetic lighting. Light pipes are commonly constructed from high-quality materials like acrylic, polycarbonate, or glass, ensuring durability and optical clarity.
Types of Light Pipes:
1. Rigid Light Pipes: Solid, straight, or bent rods used for direct light transmission in industrial equipment, automotive dashboards, and medical devices.
2. Flexible Light Pipes: Bendable optical fibers or tubes suited for complex routing in confined spaces, such as consumer electronics or aerospace systems.
3. Surface-Mount (SMD) Light Pipes: Compact, PCB-mounted solutions for LED indicators in electronics, appliances, and control panels.
4. Custom Light Pipes: Tailored shapes (e.g., diffused, tapered) for specialized applications like backlighting or decorative lighting.
Purchasing Recommendations:
- Material Selection: Choose acrylic for cost-effective clarity or polycarbonate for impact resistance in harsh environments.
- Length/Diameter Matching: Ensure compatibility with your light source (e.g., LED size) and installation space.
- Light Diffusion Needs: Opt for frosted or textured finishes if uniform illumination is required.
- Industry Standards: Verify IP ratings for moisture/dust resistance in outdoor or industrial use.
- Supplier Expertise: Partner with manufacturers offering prototyping support for custom geometries.
Light pipes bridge functionality and design in optoelectronic systems selecting the right type enhances visibility, energy efficiency, and user experience.
Filter and sort
Categories

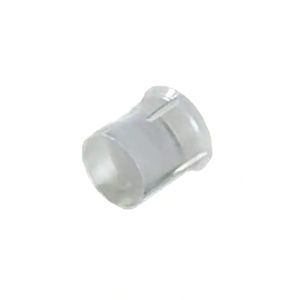

PLPC3-188
LIGHT PIPE PNL MNT 3MM RND .188"

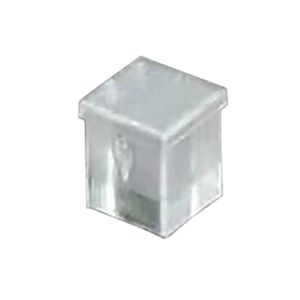

PLPQ2-9MM-FF
LIGHT PIPE PNL 2MM SQUARE 9MM

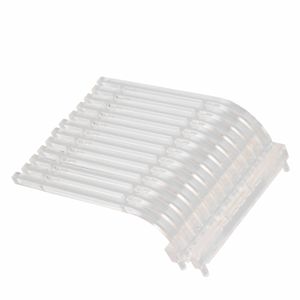

5151045F
LIGHT PIPE 12 ELEMENT RJ45

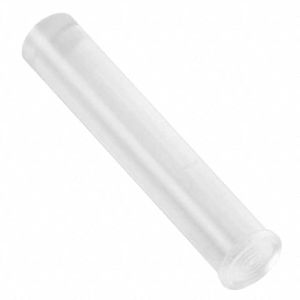

LPC_092_CTP
LIGHT PIPE ROUND 4MM CLEAR

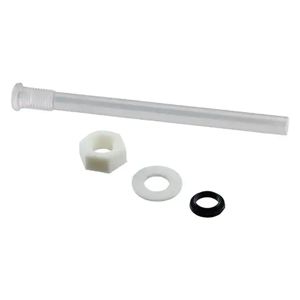

PLTR5-72MM-PR1
LIGHT PIPE RIGID SINGLE 5MM

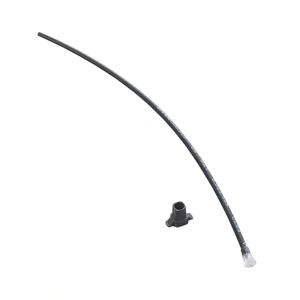

SZ1-10.00-O170-F4P
FLEXIBLE LIGHT PIPE, ZERO LIGHT

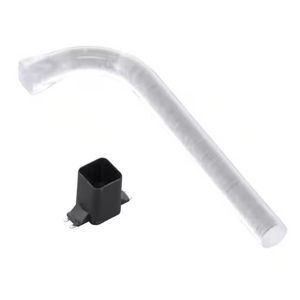

LPR5-0800-2000F-R480
RED/630NM

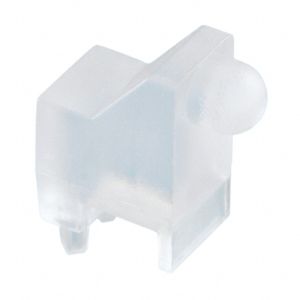

SLP3-400-100-R
LIGHT PIPE RIGID CLEAR 3MM
PLTR5-1000-PR1
LIGHT PIPE RIGID SINGLE 5MM

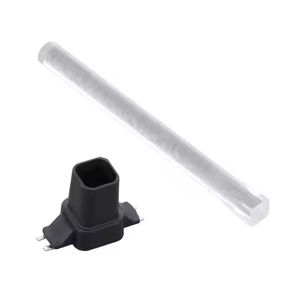

LPV3-1500F-RG
RED 640NM/GREEN 520NM

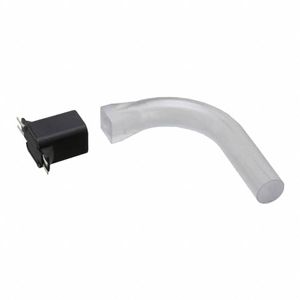

LPR5-0800-1000D-W305
WHITE/9800 K
5151158130FGREY
LIGHT PIPE ACT 2.5MM DIA 13MM

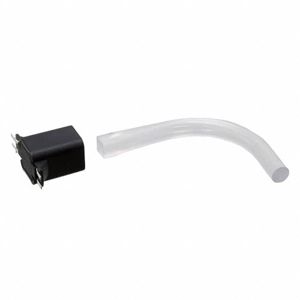

LPR3-1000-0700F-RB
RED 650NM/BLUE 465NM
SZ1-6.00-RGB-F4PD
FLEXIBLE LIGHT PIPE, ZERO LIGHT

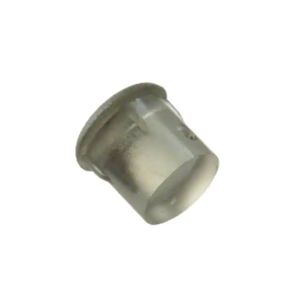

PLP2-3MM-S
LIGHT PIPE PNL MNT 3MM LONG

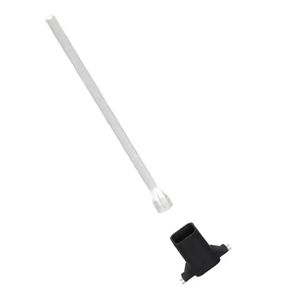

LPV2-2000F-A220
AMBER/610NM

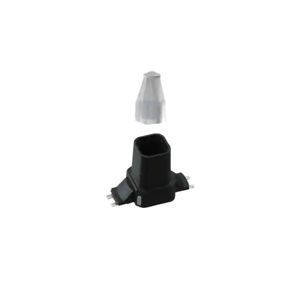

LPV2-0350D-RGB
RED 643NM/GREEN 515NM/BLUE 460NM

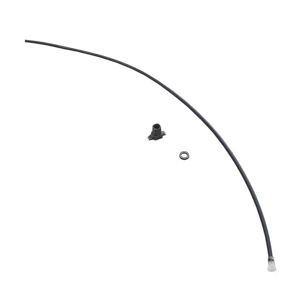

SZ1-10.00-OY-F4P54
FLEXIBLE LIGHT PIPE, ZERO LIGHT

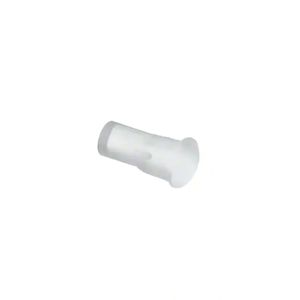

51513010500F
LIGHTPIPE PNL MT FLAT 0.500"

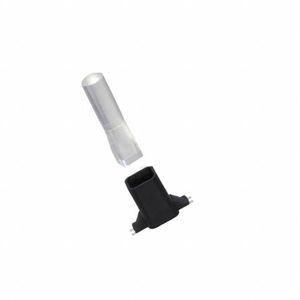

LPV3-0600D-A220
AMBER/610NM
