Optics - Light Pipes: Illuminating Solutions for Optoelectronic Applications
Definition:
Light pipes, a specialized category within Optoelectronics, are optical components designed to efficiently transmit and distribute light from a source to a desired location. These devices utilize principles of total internal reflection (TIR) to guide light with minimal loss, making them ideal for applications requiring precise illumination, signal indication, or aesthetic lighting. Light pipes are commonly constructed from high-quality materials like acrylic, polycarbonate, or glass, ensuring durability and optical clarity.
Types of Light Pipes:
1. Rigid Light Pipes: Solid, straight, or bent rods used for direct light transmission in industrial equipment, automotive dashboards, and medical devices.
2. Flexible Light Pipes: Bendable optical fibers or tubes suited for complex routing in confined spaces, such as consumer electronics or aerospace systems.
3. Surface-Mount (SMD) Light Pipes: Compact, PCB-mounted solutions for LED indicators in electronics, appliances, and control panels.
4. Custom Light Pipes: Tailored shapes (e.g., diffused, tapered) for specialized applications like backlighting or decorative lighting.
Purchasing Recommendations:
- Material Selection: Choose acrylic for cost-effective clarity or polycarbonate for impact resistance in harsh environments.
- Length/Diameter Matching: Ensure compatibility with your light source (e.g., LED size) and installation space.
- Light Diffusion Needs: Opt for frosted or textured finishes if uniform illumination is required.
- Industry Standards: Verify IP ratings for moisture/dust resistance in outdoor or industrial use.
- Supplier Expertise: Partner with manufacturers offering prototyping support for custom geometries.
Light pipes bridge functionality and design in optoelectronic systems selecting the right type enhances visibility, energy efficiency, and user experience.
Filter and sort
Categories

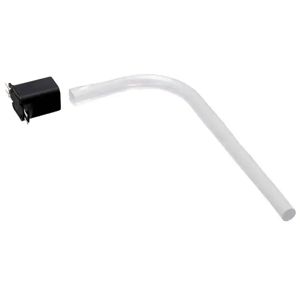

LPR3-1000-2000F-RY
RED 640NM/YELLOW 572NM

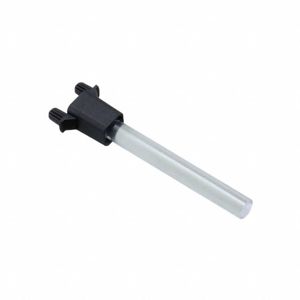

LPV4-1500FP
LIGHT PIPE RIGID 3.91MM DIA

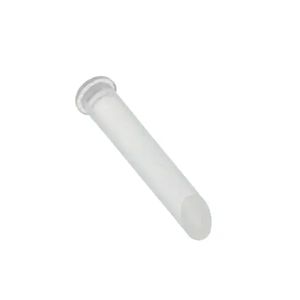

51513610625F
5MM PANEL MOUNT RIGHT ANGLE FLAT

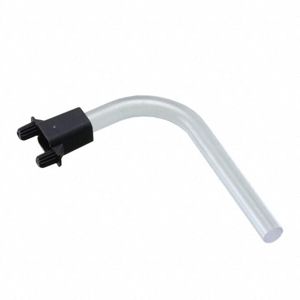

LPR4-1000-1000FP
LIGHT PIPE RIGID RA 3.91MM DIA

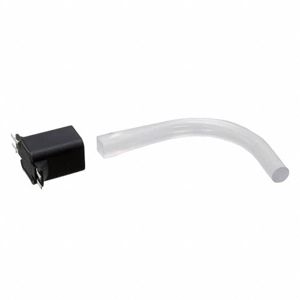

LPR3-1000-0700F-OY
ORANGE 590NM/YELLOW 572NM

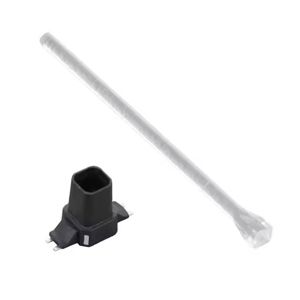

LPV2-2000D-RG
RED 640NM/GREEN 520NM

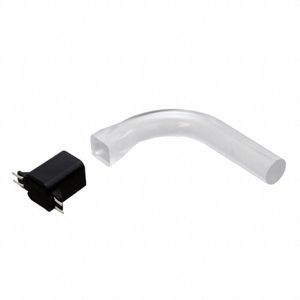

LPR5-0800-1000F-RGB
RED 643NM/GREEN 515NM/BLUE 460NM
LPV4-1500D-OY
ORANGE 590NM/YELLOW 572NM

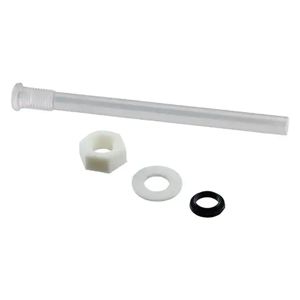

PLTR5-40MM-PR1
LIGHT PIPE RIGID SINGLE 5MM

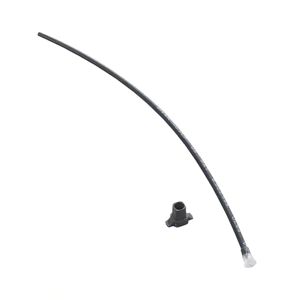

SZ1-6.00-Y50-F4P
FLEXIBLE LIGHT PIPE, ZERO LIGHT

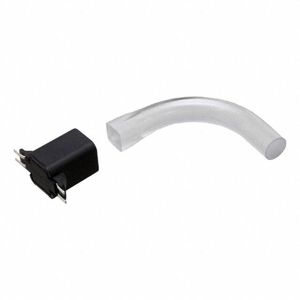

LPR4-0800-0700D-RW
RED 630NM/WHITE 7700 K

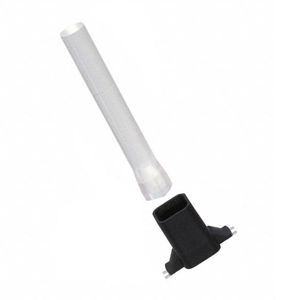

LPV4-1250F-W305
WHITE/9800 K

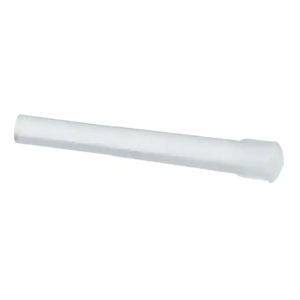

51513020800F
LIGHTPIPE PNL MT CONVEX 0.800"

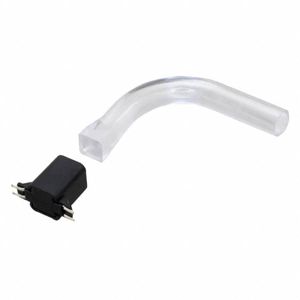

LPR5-1000-1000D-RG
RED 640NM/GREEN 520NM

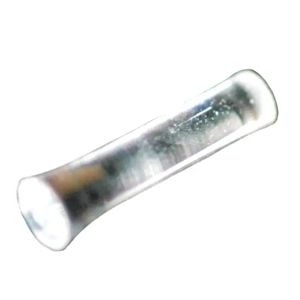

5151027F
LIGHT PIPE 1.1MM ROUND PANEL MT

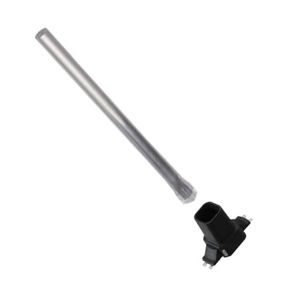

LPV3-2000F-RGB
RED 643NM/GREEN 515NM/BLUE 460NM

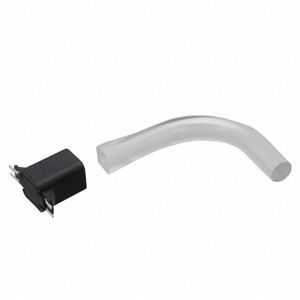

LPR4-1000-0700F-O170
ORANGE/590NM

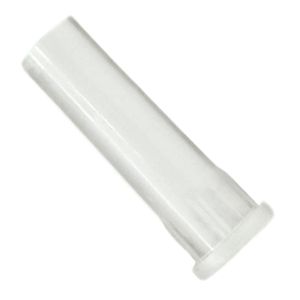

51513510500F
5MM PMVLPFLAT

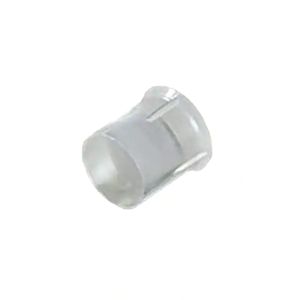

PLPC1-313
LIGHT PIPE PNL MNT 1MM RND .313"

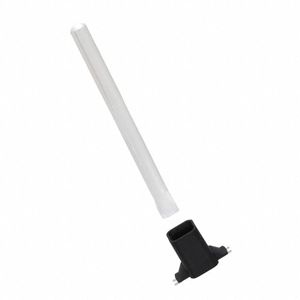

LPV4-2000D-B150
BLUE/465NM
