PMIC - Voltage Reference: Precision Power Management Components
Definition & Functionality
PMIC - Voltage References are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to generate a stable, precise DC voltage regardless of variations in input voltage, load conditions, or temperature. These components serve as critical "voltage standards" for analog and mixed-signal circuits, ensuring accuracy in applications like data converters, sensors, and power supplies.
Types & Key Variations
1. Series Voltage References: Provide a fixed output with low dropout voltage, ideal for battery-powered devices.
2. Shunt Voltage References: Operate like precision Zener diodes, suited for high-accuracy, low-current systems.
3. Adjustable Voltage References: Allow output customization via external resistors, offering design flexibility.
4. Bandgap References: Leverage semiconductor bandgap properties for ultra-stable outputs across temperature ranges.
5. Buried Zener References: Deliver the highest precision (e.g., 0.04%) for metrology or medical equipment.
Selection Guidelines
- Accuracy & Tolerance: Prioritize < 1% tolerance for precision systems (e.g., ADCs).
- Temperature Coefficient (TempCo): Choose <10ppm/ C for environments with thermal fluctuations.
- Noise Performance: Opt for low-noise (<10 Vpp) designs in sensitive analog circuits.
- Package & Power: Match SOT-23 (portable) or SOIC (industrial) packages to your PCB constraints.
- Long-Term Stability: Critical for automotive/industrial apps; verify datasheet aging specs (e.g., 50ppm/1000hr).
Why It Matters
Voltage References are the unsung heroes of reliable electronics, minimizing drift and noise in power rails. From IoT sensor calibration to aerospace systems, selecting the right type ensures optimal performance and longevity. Partner with trusted suppliers (e.g., Texas Instruments, Analog Devices) to source certified components with traceable quality data.
Filter and sort
Categories
LM4050AIX3-2.5-T
PRECISION MICROPOWER SHUNT VREF
LM385BMX-1.2/NOPB
IC VREF SHUNT 1% 8SOIC
LM385BXZ/NOPB
IC VREF SHUNT ADJ 1% TO92-3
LM4040CEX3-3.0+T
IC VREF SHUNT 0.5% SC70-3
AD586MNZ
IC VREF SERIES 0.04% 8DIP
LM4041CIM3-ADJ/NOPB
IC VREF SHUNT ADJ 0.5% SOT23-3
LM336Z-5.0/T7
VOLTAGE REFERENCE
REF5030AIDGKR
IC VREF SERIES 0.1% 8VSSOP
LT6656BIS6-2.048#TRMPBF
IC VREF SERIES 0.1% TSOT23-6
TL431AIDBVR
IC VREF SHUNT ADJ 1% SOT23-5

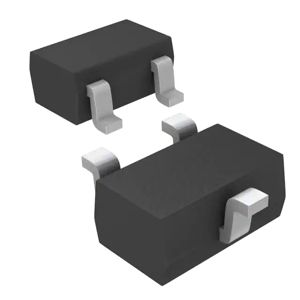

MAX6138CEXR21+T
IC VREF SHUNT 2.048V SC70
LM4040DIX3-2.1+T
IC VREF SHUNT 2.048V SC70
LM4132EMFX-3.0/NOPB
IC VREF SERIES 0.5% SOT23-5

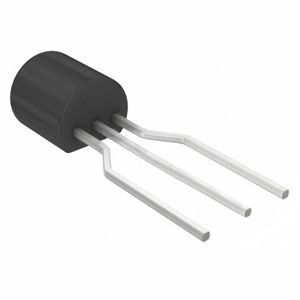

AZ431BZ-ATRG1
IC VREF SHUNT ADJ 0.8% TO92

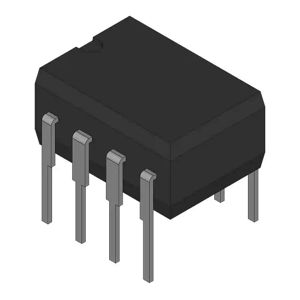

REF01CZ
10V VOLTAGE REFERENCE
LT1461ACS8-2.5#TRPBF
IC VREF SERIES 0.04% 8SOIC

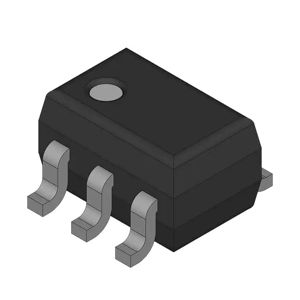

LM4041DIM7X-1.2
IC VREF SHUNT 1% SC70-5

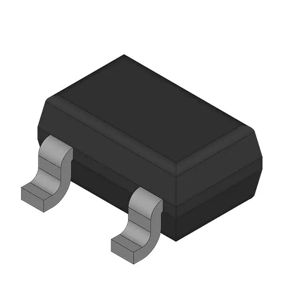

LM4040AEX3-2.5+
LM4040 IMPROVED PRECISION MICROP

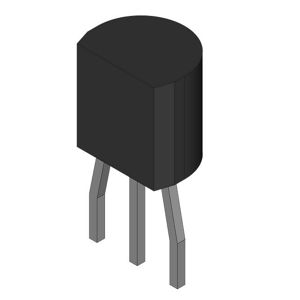

LM285AXZ-1.2
VOLTAGE REFERENCE

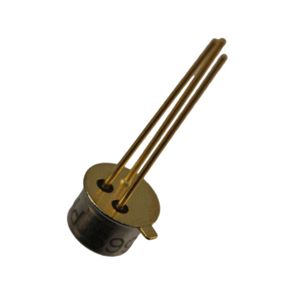

AD580UH
IC VREF SERIES 0.4% TO52-3
