PMIC - Voltage Reference
PMIC - Voltage Reference: Precision Power Management Components
Definition & Functionality
PMIC - Voltage References are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to generate a stable, precise DC voltage regardless of variations in input voltage, load conditions, or temperature. These components serve as critical "voltage standards" for analog and mixed-signal circuits, ensuring accuracy in applications like data converters, sensors, and power supplies.
Types & Key Variations
1. Series Voltage References: Provide a fixed output with low dropout voltage, ideal for battery-powered devices.
2. Shunt Voltage References: Operate like precision Zener diodes, suited for high-accuracy, low-current systems.
3. Adjustable Voltage References: Allow output customization via external resistors, offering design flexibility.
4. Bandgap References: Leverage semiconductor bandgap properties for ultra-stable outputs across temperature ranges.
5. Buried Zener References: Deliver the highest precision (e.g., 0.04%) for metrology or medical equipment.
Selection Guidelines
- Accuracy & Tolerance: Prioritize < 1% tolerance for precision systems (e.g., ADCs).
- Temperature Coefficient (TempCo): Choose <10ppm/ C for environments with thermal fluctuations.
- Noise Performance: Opt for low-noise (<10 Vpp) designs in sensitive analog circuits.
- Package & Power: Match SOT-23 (portable) or SOIC (industrial) packages to your PCB constraints.
- Long-Term Stability: Critical for automotive/industrial apps; verify datasheet aging specs (e.g., 50ppm/1000hr).
Why It Matters
Voltage References are the unsung heroes of reliable electronics, minimizing drift and noise in power rails. From IoT sensor calibration to aerospace systems, selecting the right type ensures optimal performance and longevity. Partner with trusted suppliers (e.g., Texas Instruments, Analog Devices) to source certified components with traceable quality data.
Filter and sort
Categories
ADR280AKS-REEL7
IC VREF SERIES PREC 1.2V SC-70-3
LT1019IN8-2.5#PBF
IC VREF SERIES 0.2% 8DIP
LT1460EIS8-2.5#PBF
IC VREF SERIES 0.125% 8SOIC

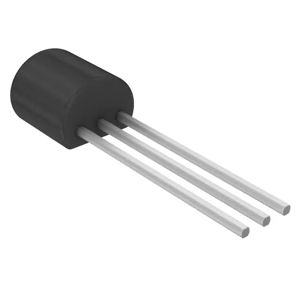

TL1431AIZ-AP
IC VREF SHUNT ADJ 0.25% TO92-3

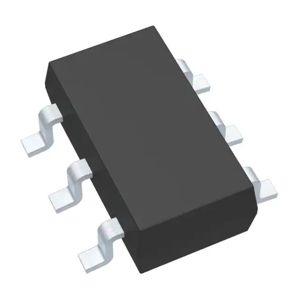

MAX6070BAUT25/V+T
IC VREF SERIES 0.08% SOT23-6
LT1004CS8-1.2#TRPBF
IC VREF SHUNT 0.3% 8SOIC

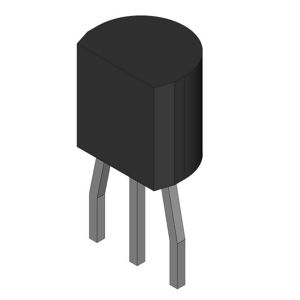

LM431ACZ/NOPB
LM431 2%, 1%, OR 0.5% ACCURACY,

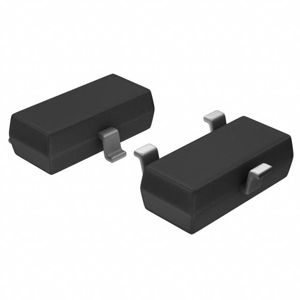

MAX6062AEUR+T
IC VREF SERIES 0.24% SOT23-3

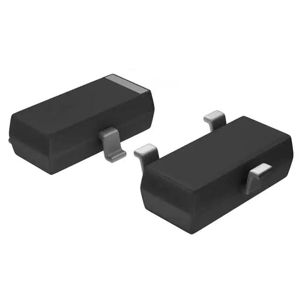

AD1582ART-R2
IC VREF SERIES PREC 2.5V SOT23-3
LM4040D20IDBZR
IC VREF SHUNT 1% SOT23-3
LM4051AIM3X-ADJ/NOPB
IC VREF SHUNT ADJ 0.1% SOT23-3
LM4050BEM3X-2.5/NOPB
IC VREF SHUNT 0.2% SOT23-3
LM4050CIM3-4.1/NOPB
IC VREF SHUNT 0.5% SOT23-3

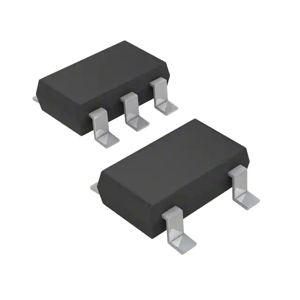

ADR392AUJZ-REEL7
IC VREF SERIES 0.15% TSOT5
LM4132CMFX-2.0/NOPB
IC VREF SERIES 0.2% SOT23-5
MAX6071BAUT30+T
IC VREF SERIES 0.08% SOT23-6
REF194ESZ-REEL
IC VREF SERIES 0.04% 8SOIC

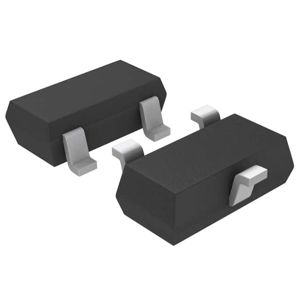

LT1460JCS3-5#TRPBF
IC VREF SERIES 0.4% SOT23-3
ADR4540CRZ-R7
IC VREF SERIES 0.02% 8SOIC
MAX6241BCPA
IC VREF SERIES 0.1% 8DIP
