PMIC - Voltage Reference
PMIC - Voltage Reference: Precision Power Management Components
Definition & Functionality
PMIC - Voltage References are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to generate a stable, precise DC voltage regardless of variations in input voltage, load conditions, or temperature. These components serve as critical "voltage standards" for analog and mixed-signal circuits, ensuring accuracy in applications like data converters, sensors, and power supplies.
Types & Key Variations
1. Series Voltage References: Provide a fixed output with low dropout voltage, ideal for battery-powered devices.
2. Shunt Voltage References: Operate like precision Zener diodes, suited for high-accuracy, low-current systems.
3. Adjustable Voltage References: Allow output customization via external resistors, offering design flexibility.
4. Bandgap References: Leverage semiconductor bandgap properties for ultra-stable outputs across temperature ranges.
5. Buried Zener References: Deliver the highest precision (e.g., 0.04%) for metrology or medical equipment.
Selection Guidelines
- Accuracy & Tolerance: Prioritize < 1% tolerance for precision systems (e.g., ADCs).
- Temperature Coefficient (TempCo): Choose <10ppm/ C for environments with thermal fluctuations.
- Noise Performance: Opt for low-noise (<10 Vpp) designs in sensitive analog circuits.
- Package & Power: Match SOT-23 (portable) or SOIC (industrial) packages to your PCB constraints.
- Long-Term Stability: Critical for automotive/industrial apps; verify datasheet aging specs (e.g., 50ppm/1000hr).
Why It Matters
Voltage References are the unsung heroes of reliable electronics, minimizing drift and noise in power rails. From IoT sensor calibration to aerospace systems, selecting the right type ensures optimal performance and longevity. Partner with trusted suppliers (e.g., Texas Instruments, Analog Devices) to source certified components with traceable quality data.
Filter and sort
Categories
REF198ESZ-REEL7
IC VREF SERIES 0.05% 8SOIC
LM4050BIM3X-2.0/NOPB
IC VREF SHUNT 0.2% SOT23-3
LT1461CCS8-2.5#TRPBF
IC VREF SERIES 0.08% 8SOIC
LM4121AIM5X-ADJ/NOPB
IC VREF SERIES ADJ 0.2% SOT23-5
AD586KRZ
IC VREF SERIES 0.1% 8SOIC

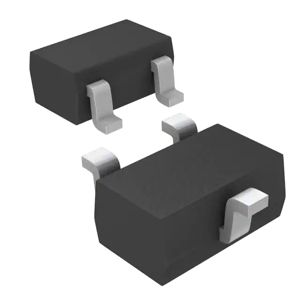

LM4050BEX3-5.0+T
IC VREF SHUNT 5V SC70

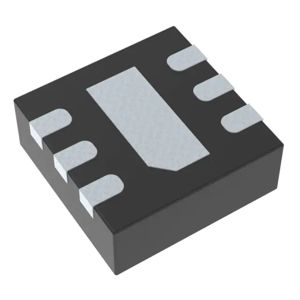

LT6656AIDC-2.048#TRMPBF
IC VREF SERIES 0.1% 6DFN
LM4040QDEM3-2.5/NOPB
IC VREF SHUNT 1% SOT23-3
ATL432BQDBZR
IC VREF SHUNT ADJ 0.5% SOT23-3

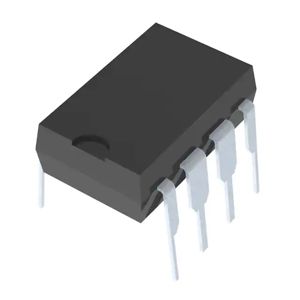

REF02CPZ
IC VREF SERIES 1% 8DIP
AZ431BN-ATRG1
IC VREF SHUNT ADJ 0.8% SOT23

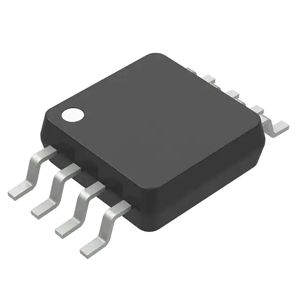

TL431AIDMR2
IC VREF SHUNT ADJ 1% MICRO8

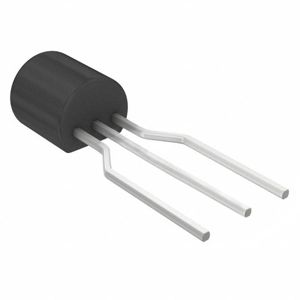

TL431AILPRPG
IC VREF SHUNT ADJ 1% TO92-3
ADR4550BRZ-R7
IC VREF SERIES 0.02% 8SOIC
LT1460MHS8-2.5#PBF
IC VREF SERIES 0.2% 8SOIC

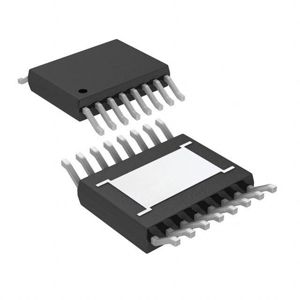

LT6658AIMSE-3#TRPBF
IC VREF SERIES 6V 0.05% 16MSOP

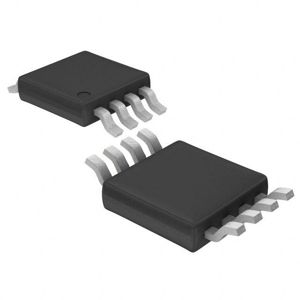

LTC6655CHMS8-2.048#PBF
IC VREF SERIES 0.05% 8MSOP
LT6658AHMSE-3#TRPBF
IC VREF SERIES 6V 0.05% 16MSOP

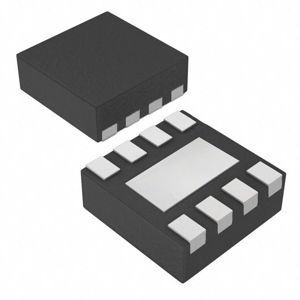

MCP1501T-30E/RW
IC VREF SERIES 0.1% 8WDFN
LT1634BCMS8-2.5#PBF
IC VREF SHUNT 0.05% 8MSOP
