PMIC - Voltage Reference
PMIC - Voltage Reference: Precision Power Management Components
Definition & Functionality
PMIC - Voltage References are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to generate a stable, precise DC voltage regardless of variations in input voltage, load conditions, or temperature. These components serve as critical "voltage standards" for analog and mixed-signal circuits, ensuring accuracy in applications like data converters, sensors, and power supplies.
Types & Key Variations
1. Series Voltage References: Provide a fixed output with low dropout voltage, ideal for battery-powered devices.
2. Shunt Voltage References: Operate like precision Zener diodes, suited for high-accuracy, low-current systems.
3. Adjustable Voltage References: Allow output customization via external resistors, offering design flexibility.
4. Bandgap References: Leverage semiconductor bandgap properties for ultra-stable outputs across temperature ranges.
5. Buried Zener References: Deliver the highest precision (e.g., 0.04%) for metrology or medical equipment.
Selection Guidelines
- Accuracy & Tolerance: Prioritize < 1% tolerance for precision systems (e.g., ADCs).
- Temperature Coefficient (TempCo): Choose <10ppm/ C for environments with thermal fluctuations.
- Noise Performance: Opt for low-noise (<10 Vpp) designs in sensitive analog circuits.
- Package & Power: Match SOT-23 (portable) or SOIC (industrial) packages to your PCB constraints.
- Long-Term Stability: Critical for automotive/industrial apps; verify datasheet aging specs (e.g., 50ppm/1000hr).
Why It Matters
Voltage References are the unsung heroes of reliable electronics, minimizing drift and noise in power rails. From IoT sensor calibration to aerospace systems, selecting the right type ensures optimal performance and longevity. Partner with trusted suppliers (e.g., Texas Instruments, Analog Devices) to source certified components with traceable quality data.
Filter and sort
Categories
REF192FSZ
IC VREF SERIES 0.2% 8SOIC
MCP1541-I/TO
IC VREF SERIES 1% TO92-3
REF195GRUZ
IC VREF SERIES 0.2% 8TSSOP
TL4050B41QDCKR
IC VREF SHUNT 0.2% SC70-5
LT1790BIS6-4.096#TRPBF
IC VREF SERIES 0.1% TSOT23-6
REF194GSZ
IC VREF SERIES 0.22% 8SOIC
MAX6138AEXR30-T
VOLTAGE REFERENCE
LM4050AEX3-5.0+T
IC VREF SHUNT 5V SC70
LM4040BEX3-5.0
PRECISION MICROPOWER SHUNT VREF
REF194GSZ-REEL7
IC VREF SERIES 0.22% 8SOIC
LM4040AIM3X-2.5/NOPB
IC VREF SHUNT 0.1% SOT23-3
RC0431AST
VOLTAGE REFERENCE, BIPOLAR
LM4030AMF-4.096/NOPB
IC VREF SHUNT 0.05% SOT23-5
TLV431BQDBZRQ1
IC VREF SHUNT ADJ 0.5% SOT23-3
LT1461AIS8-2.5#PBF
IC VREF SERIES 0.04% 8SOIC
AN431BN-ATRG1
IC VREF SHUNT ADJ 1% SOT23-3
LM4040CIZ-10.0/NOPB
IC VREF SHUNT 0.5% TO92-3
TL431BCP
IC VREF SHUNT ADJ 0.5% 8DIP
LT1389BCS8-4.096#PBF
IC VREF SHUNT 0.075% 8SOIC

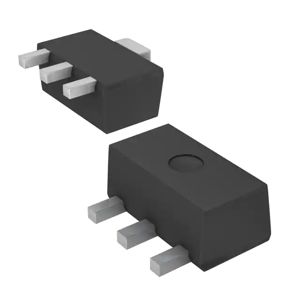

AS431BRTR-E1
IC VREF SHUNT ADJ 1% SOT89-3
