PMIC - Voltage Reference
PMIC - Voltage Reference: Precision Power Management Components
Definition & Functionality
PMIC - Voltage References are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to generate a stable, precise DC voltage regardless of variations in input voltage, load conditions, or temperature. These components serve as critical "voltage standards" for analog and mixed-signal circuits, ensuring accuracy in applications like data converters, sensors, and power supplies.
Types & Key Variations
1. Series Voltage References: Provide a fixed output with low dropout voltage, ideal for battery-powered devices.
2. Shunt Voltage References: Operate like precision Zener diodes, suited for high-accuracy, low-current systems.
3. Adjustable Voltage References: Allow output customization via external resistors, offering design flexibility.
4. Bandgap References: Leverage semiconductor bandgap properties for ultra-stable outputs across temperature ranges.
5. Buried Zener References: Deliver the highest precision (e.g., 0.04%) for metrology or medical equipment.
Selection Guidelines
- Accuracy & Tolerance: Prioritize < 1% tolerance for precision systems (e.g., ADCs).
- Temperature Coefficient (TempCo): Choose <10ppm/ C for environments with thermal fluctuations.
- Noise Performance: Opt for low-noise (<10 Vpp) designs in sensitive analog circuits.
- Package & Power: Match SOT-23 (portable) or SOIC (industrial) packages to your PCB constraints.
- Long-Term Stability: Critical for automotive/industrial apps; verify datasheet aging specs (e.g., 50ppm/1000hr).
Why It Matters
Voltage References are the unsung heroes of reliable electronics, minimizing drift and noise in power rails. From IoT sensor calibration to aerospace systems, selecting the right type ensures optimal performance and longevity. Partner with trusted suppliers (e.g., Texas Instruments, Analog Devices) to source certified components with traceable quality data.
Filter and sort
Categories
MAX6350CSA+
IC VREF SERIES 0.02% 8SOIC
TL431IP
IC VREF SHUNT ADJ 2.2% 8DIP
LM4050BIM3-4.1
IC VREF SHUNT 0.2% SOT23-3
LM385BYM-1.2/NOPB
IC VREF SHUNT 1% 8SOIC
TL1431CDR
IC VREF SHUNT ADJ 0.4% 8SOIC
LM4041DIM3X-1.2/NOPB
IC VREF SHUNT 1% SOT23-3

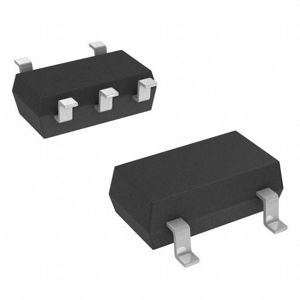

LM4041BECT-1.2
IC VREF SHUNT 0.2% SOT323-5
MAX6150ESA
IC VREF SERIES 1% 8SOIC
MAX874ESA+
VOLTAGE REFERENCE

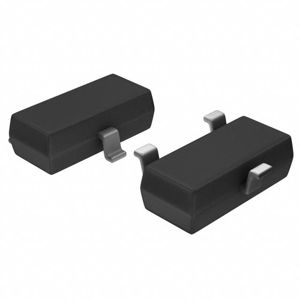

MAX6001EUR+T
IC VREF SERIES 1% SOT23-3

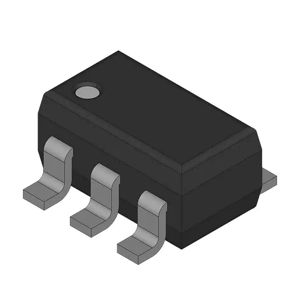

MAX6037AAUK25
LOW-POWER, FIXED REFERENCE

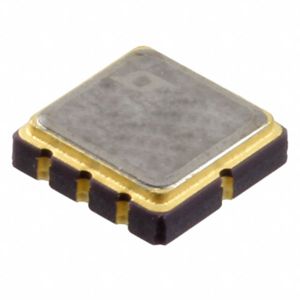

LTC6652AHLS8-5#PBF
IC VREF SERIES 0.05% 8CLCC

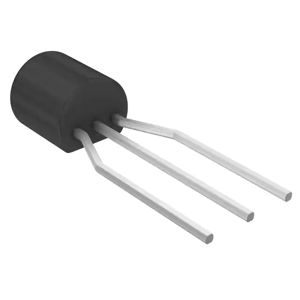

TLVH431AILPR
IC VREF SHUNT ADJ 1% TO92-3
TL432AIDBZR
IC VREF SHUNT ADJ 1% SOT23-3
LT6656BCS6-2.5#TRMPBF
IC VREF SERIES 0.1% TSOT23-6
TLVH432BQDBZR
IC VREF SHUNT ADJ 0.5% SOT23-3
LM4040CIM3-2.0/NOPB
IC VREF SHUNT 0.5% SOT23-3
LM385AMX-2.5
VOLTAGE REFERENCE
LT1004IDG4-2-5
IC VREF SHUNT 0.8% 8SOIC
LT1021DCS8-5#TRPBF
IC VREF SERIES 1% 8SOIC
