PMIC - Voltage Reference
PMIC - Voltage Reference: Precision Power Management Components
Definition & Functionality
PMIC - Voltage References are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to generate a stable, precise DC voltage regardless of variations in input voltage, load conditions, or temperature. These components serve as critical "voltage standards" for analog and mixed-signal circuits, ensuring accuracy in applications like data converters, sensors, and power supplies.
Types & Key Variations
1. Series Voltage References: Provide a fixed output with low dropout voltage, ideal for battery-powered devices.
2. Shunt Voltage References: Operate like precision Zener diodes, suited for high-accuracy, low-current systems.
3. Adjustable Voltage References: Allow output customization via external resistors, offering design flexibility.
4. Bandgap References: Leverage semiconductor bandgap properties for ultra-stable outputs across temperature ranges.
5. Buried Zener References: Deliver the highest precision (e.g., 0.04%) for metrology or medical equipment.
Selection Guidelines
- Accuracy & Tolerance: Prioritize < 1% tolerance for precision systems (e.g., ADCs).
- Temperature Coefficient (TempCo): Choose <10ppm/ C for environments with thermal fluctuations.
- Noise Performance: Opt for low-noise (<10 Vpp) designs in sensitive analog circuits.
- Package & Power: Match SOT-23 (portable) or SOIC (industrial) packages to your PCB constraints.
- Long-Term Stability: Critical for automotive/industrial apps; verify datasheet aging specs (e.g., 50ppm/1000hr).
Why It Matters
Voltage References are the unsung heroes of reliable electronics, minimizing drift and noise in power rails. From IoT sensor calibration to aerospace systems, selecting the right type ensures optimal performance and longevity. Partner with trusted suppliers (e.g., Texas Instruments, Analog Devices) to source certified components with traceable quality data.
Filter and sort
Categories
LM4050QCEM3X2.5/NOPB
IC VREF SHUNT 0.5% SOT23-3
TLVH431CLPE3
IC VREF SHUNT ADJ 1.5% TO92-3
LM4132AMF-3.0/NOPB
IC VREF SERIES 0.05% SOT23-5
ADR423ARM
IC VREF SERIES PREC 3V 8-MSOP
TL4050B41QDBZR
IC VREF SHUNT 0.2% SOT23-3
LM4040C50IDBZT
IC VREF SHUNT 0.5% SOT23-3

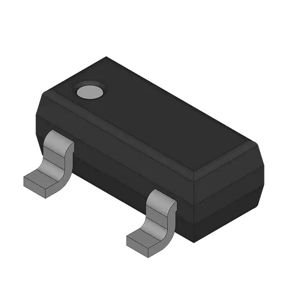

LM4040DIM3-2.5 TS
PRECISION MICROPOWER SHUNT VOLTA
MAX6126AASA50+T
IC VREF SERIES 0.02% 8SOIC

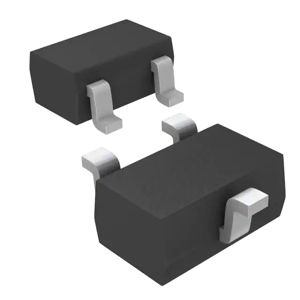

LM4040CIX3-5.0+T
IC VREF SHUNT 0.5% SC70-3
ISL21090BFB850Z-TK
IC VREF SERIES 0.025% 8SOIC

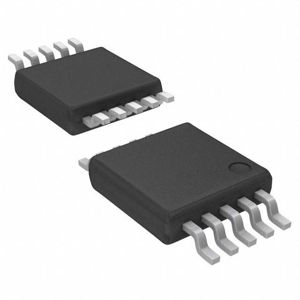

MAX6072AAUB41+
IC VREF SERIES 0.05% 10UMAX

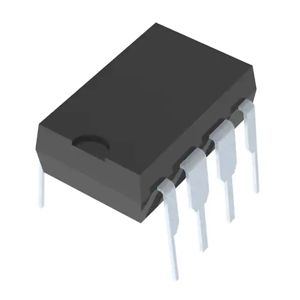

REF03GP
IC VREF SERIES PREC 2.5V 8DIP
LM4040BIM3-2.5/NOPB
IC VREF SHUNT 0.2% SOT23-3

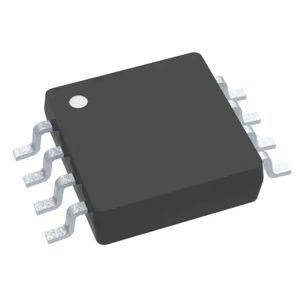

REF6041IDGKT
IC VREF SERIES 0.05% 8VSSOP

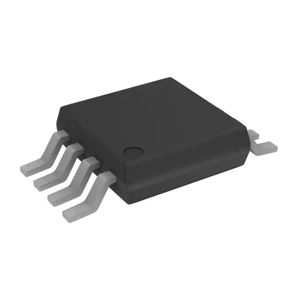

ADR3525WARMZ-R7
IC VREF SERIES 0.1% 8MSOP

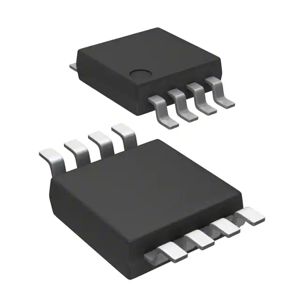

MAX6126B41+
IC VREF SERIES 0.1% 8UMAX
ADR225HRZN
IC VREF SERIES 0.4% 8SOIC

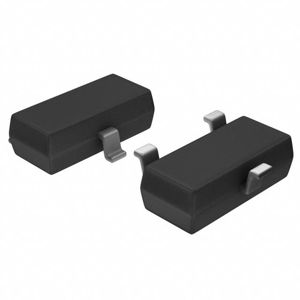

LM4040AIM3-4.1+T
