PMIC - Voltage Reference
PMIC - Voltage Reference: Precision Power Management Components
Definition & Functionality
PMIC - Voltage References are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to generate a stable, precise DC voltage regardless of variations in input voltage, load conditions, or temperature. These components serve as critical "voltage standards" for analog and mixed-signal circuits, ensuring accuracy in applications like data converters, sensors, and power supplies.
Types & Key Variations
1. Series Voltage References: Provide a fixed output with low dropout voltage, ideal for battery-powered devices.
2. Shunt Voltage References: Operate like precision Zener diodes, suited for high-accuracy, low-current systems.
3. Adjustable Voltage References: Allow output customization via external resistors, offering design flexibility.
4. Bandgap References: Leverage semiconductor bandgap properties for ultra-stable outputs across temperature ranges.
5. Buried Zener References: Deliver the highest precision (e.g., 0.04%) for metrology or medical equipment.
Selection Guidelines
- Accuracy & Tolerance: Prioritize < 1% tolerance for precision systems (e.g., ADCs).
- Temperature Coefficient (TempCo): Choose <10ppm/ C for environments with thermal fluctuations.
- Noise Performance: Opt for low-noise (<10 Vpp) designs in sensitive analog circuits.
- Package & Power: Match SOT-23 (portable) or SOIC (industrial) packages to your PCB constraints.
- Long-Term Stability: Critical for automotive/industrial apps; verify datasheet aging specs (e.g., 50ppm/1000hr).
Why It Matters
Voltage References are the unsung heroes of reliable electronics, minimizing drift and noise in power rails. From IoT sensor calibration to aerospace systems, selecting the right type ensures optimal performance and longevity. Partner with trusted suppliers (e.g., Texas Instruments, Analog Devices) to source certified components with traceable quality data.
Filter and sort
Categories

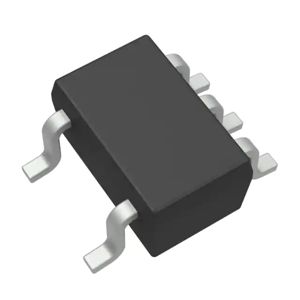

LM4040D10IDCKR
IC VREF SHUNT 1% SC70-5

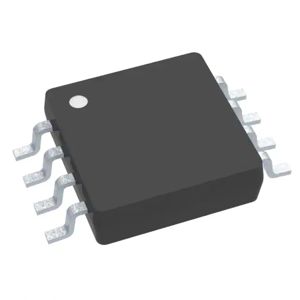

REF5030AIDGKT
IC VREF SERIES 0.1% 8VSSOP

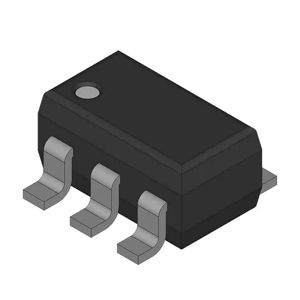

LM4120IM5-5.0
IC VREF SERIES 0.5% SOT23-5

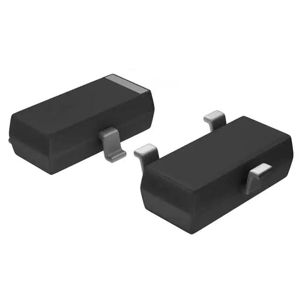

ADR5043BRTZ-REEL7
IC VREF SHUNT 0.1% SOT23-3

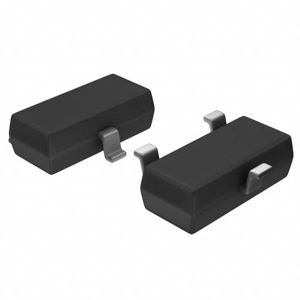

LM4040BIM3-4.1+T
IC VREF SHUNT 4.096V SOT23
LM236AM-2.5
VOLTAGE REFERENCE
LT6654AIS6-3.3#TRMPBF
IC VREF SERIES 0.05% TSOT23-6

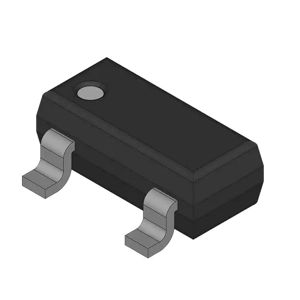

MAX6018AEUR21
VOLTAGE REFERENCE
LM4040BIM3-3.0+T
IC VREF SHUNT 3V SOT23-3
ADR4533ARZ-R7
IC VREF SERIES 0.04% 8SOIC

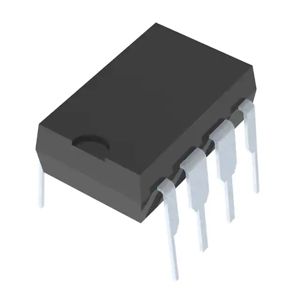

AD586KNZ
IC VREF SERIES 0.1% 8DIP
MAX6071AAUT30/V+T
IC VREF SERIES 0.04% SOT23-6

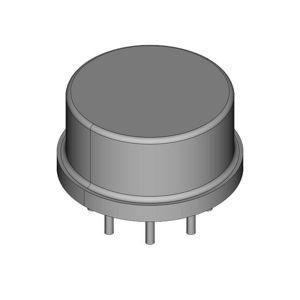

LM169H
VOLTAGE REFERENCE

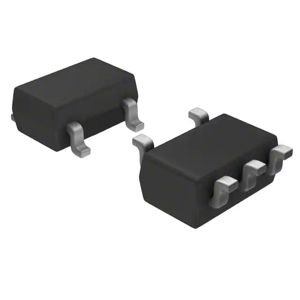

MAX6037AAUK25+T
IC VREF SERIES 0.2% SOT23-5

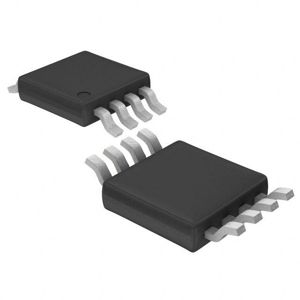

LTC6655LNCHMS8-2.5#TRPBF
IC VREF SERIES 0.05% 8MSOP

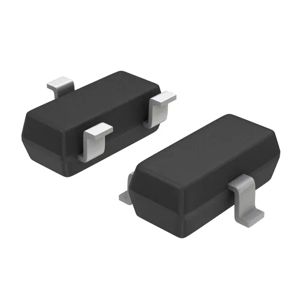

CAT8900B260TBGT3
IC VREF SERIES 0.04% SOT23-3
ADR421ARMZ
IC VREF SERIES 0.12% 8MSOP
MAX6064AEUR+T
IC VREF SERIES 0.2% SOT23-3
MAX6018BEUR21+T
IC VREF SERIES 0.4% SOT23-3
ISL21090BFB875Z-TK
IC VREF SERIES 0.035% 8SOIC
