Definition & Purpose
Rectangular Connectors - Headers, Male Pins are a critical subset of Connectors and Interconnects, designed to establish robust, standardized electrical connections between printed circuit boards (PCBs), modules, or devices. These components feature a male pin interface that inserts into corresponding female sockets (receptacles), ensuring secure signal transmission or power delivery in compact, high-density layouts. Widely used in industrial, automotive, and consumer electronics, they excel in applications demanding precision, durability, and repeatable mating cycles.
Key Product Types
1. Single/Double-Row Headers: Low-profile options for space-constrained designs, available in through-hole (THT) or surface-mount (SMT) configurations.
2. Shrouded/Box Headers: Incorporate protective housings to prevent misalignment and enhance mechanical stability in harsh environments.
3. High-Current Headers: Engineered with thicker pins (e.g., 2.54mm pitch) to support power-intensive applications.
4. Right-Angle & Vertical Headers: Offer flexible PCB layout options for optimized airflow and wire routing.
5. Custom Pin-Count Solutions: Tailored configurations (e.g., 4-pin to 40-pin) to match specific circuit requirements.
Purchasing Recommendations
- Pitch & Size: Verify pin spacing (e.g., 1.27mm, 2.54mm) and row count to ensure compatibility with existing receptacles.
- Material: Prioritize high-temperature plastics (e.g., PBT) and gold-plated pins for corrosion resistance in demanding conditions.
- Current Rating: Select headers rated 3A/pin for power applications to avoid overheating.
- Compliance: Check for UL, IEC, or RoHS certifications to meet industry safety standards.
- Supplier Evaluation: Partner with vendors offering IP67-rated options for moisture-prone environments and sample/testing support.
Ideal for prototyping and mass production, these connectors balance cost-efficiency with long-term reliability critical for IoT devices, robotics, and automotive control systems. Always cross-reference datasheets to align with your project s mechanical and electrical parameters.
Filter and sort
Categories
55447-1270
MINI MI2 1-ROW WAFER ASSY 12CKT
929647-07-19-EU
CONN HEADER VERT 19POS 2.54MM
TSM-130-01-S-DH-LC
CONN HEADER SMD R/A 60POS 2.54MM
TSM-130-02-T-SH-P
CONN HEADER SMD R/A 30POS 2.54MM
ZSS-104-06-T-D-1000
CONN HDR .100" 8POS
802-10-066-65-001101
CONN HEADER VERT 66POS 2.54MM

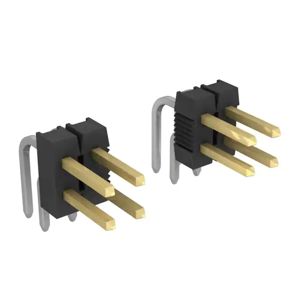

4-103149-0-28
CONN HEADER R/A 56POS 2.54MM

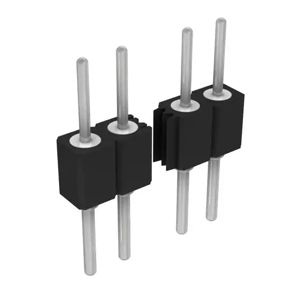

350-80-163-00-006101
CONN HEADER VERT 63POS 2.54MM

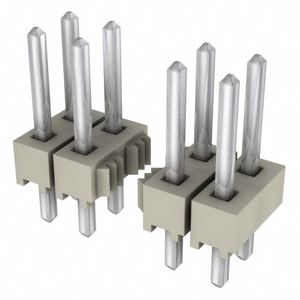

HTSW-121-07-T-D
CONN HEADER VERT 42POS 2.54MM

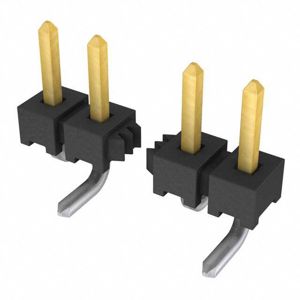

TMM-126-01-L-S-SM-P-TR
2MM TERMINAL STRIP

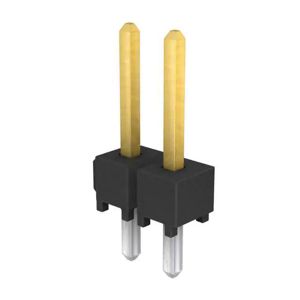

TSW-102-07-L-S
CONN HEADER VERT 2POS 2.54MM

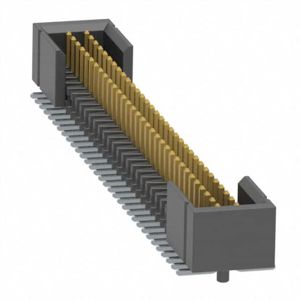

FTMH-132-02-F-DV-ES-A-P-TR
CONN HEADER SMD 64POS 1MM

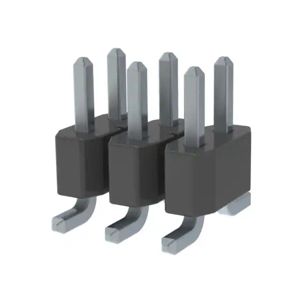

TSM-103-04-T-DV-P-TR
CONN HEADER SMD 6POS 2.54MM

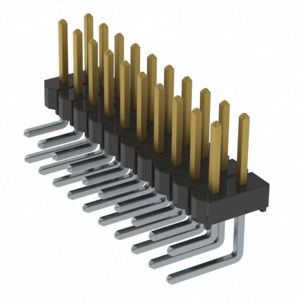

HTSW-110-08-F-D-RA
CONN HEADER R/A 20POS 2.54MM

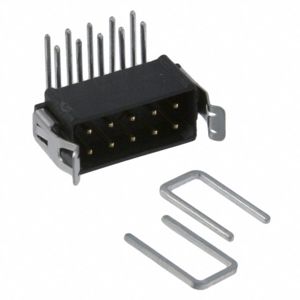

M80-8661022
CONN HEADER R/A 10POS 2MM

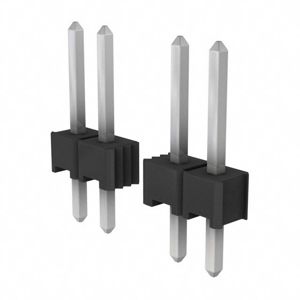

4-103327-0-17
CONN HEADER VERT 17POS 2.54MM

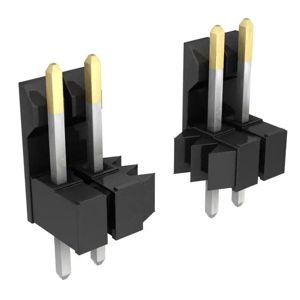

0422271043
CONN HEADER VERT 8POS 2.54MM

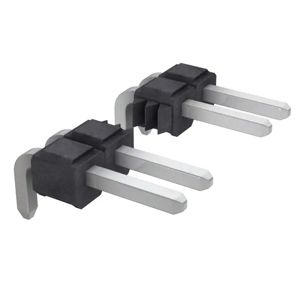

929835-01-18-RK
CONN HEADER R/A 18POS 2.54MM

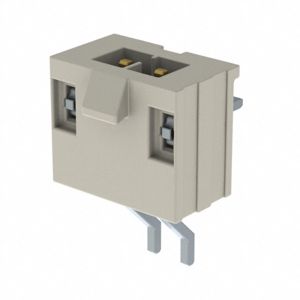

IPL1-102-02-L-SH-K
CONN HEADER SMD R/A 2POS 2.54MM

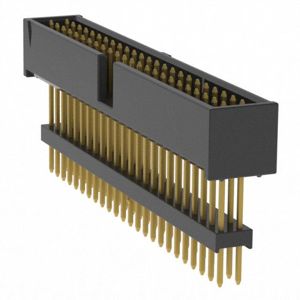

ZSS-124-04-G-D-790-LL
CONN HDR .100" 48POS
