Definition & Purpose
Rectangular Connectors - Headers, Male Pins are a critical subset of Connectors and Interconnects, designed to establish robust, standardized electrical connections between printed circuit boards (PCBs), modules, or devices. These components feature a male pin interface that inserts into corresponding female sockets (receptacles), ensuring secure signal transmission or power delivery in compact, high-density layouts. Widely used in industrial, automotive, and consumer electronics, they excel in applications demanding precision, durability, and repeatable mating cycles.
Key Product Types
1. Single/Double-Row Headers: Low-profile options for space-constrained designs, available in through-hole (THT) or surface-mount (SMT) configurations.
2. Shrouded/Box Headers: Incorporate protective housings to prevent misalignment and enhance mechanical stability in harsh environments.
3. High-Current Headers: Engineered with thicker pins (e.g., 2.54mm pitch) to support power-intensive applications.
4. Right-Angle & Vertical Headers: Offer flexible PCB layout options for optimized airflow and wire routing.
5. Custom Pin-Count Solutions: Tailored configurations (e.g., 4-pin to 40-pin) to match specific circuit requirements.
Purchasing Recommendations
- Pitch & Size: Verify pin spacing (e.g., 1.27mm, 2.54mm) and row count to ensure compatibility with existing receptacles.
- Material: Prioritize high-temperature plastics (e.g., PBT) and gold-plated pins for corrosion resistance in demanding conditions.
- Current Rating: Select headers rated 3A/pin for power applications to avoid overheating.
- Compliance: Check for UL, IEC, or RoHS certifications to meet industry safety standards.
- Supplier Evaluation: Partner with vendors offering IP67-rated options for moisture-prone environments and sample/testing support.
Ideal for prototyping and mass production, these connectors balance cost-efficiency with long-term reliability critical for IoT devices, robotics, and automotive control systems. Always cross-reference datasheets to align with your project s mechanical and electrical parameters.
Filter and sort
Categories

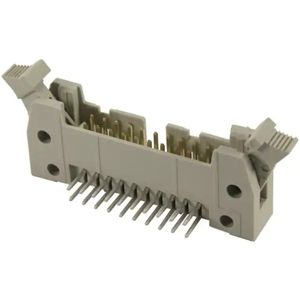

09185165913
CONN HEADER R/A 16POS 2.54MM

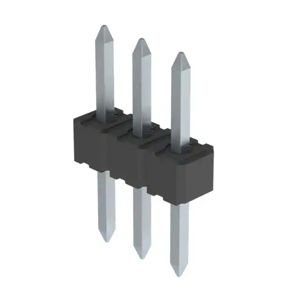

0022284030
CONN HEADER VERT 3POS 2.54MM

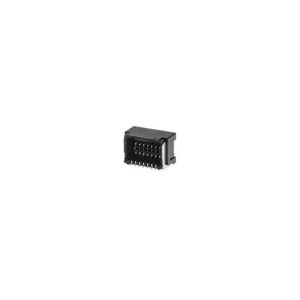

505448-2071
EMBOSSED PKG FOR 505448 20P BLAC
800-80-037-66-001101

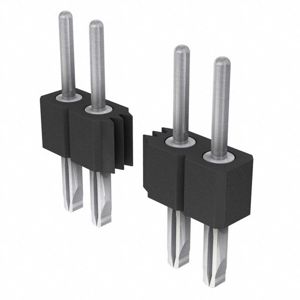

CONN HEADER VERT 37POS 2.54MM

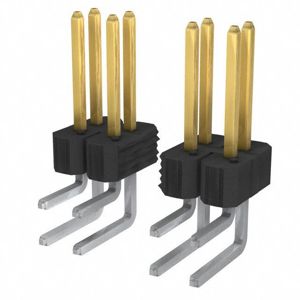

68022-240HLF
CONN HEADER R/A 40POS 2.54MM

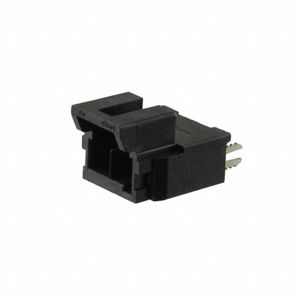

1722871302
CONN HEADER VERT 2POS 3.5MM

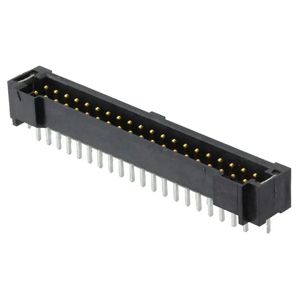

T2M-120-01-L-D-TH-WT
CONN HEADER VERT 40POS 2MM
850-10-045-40-251101
CONN HEADER SMD R/A 45POS 1.27MM

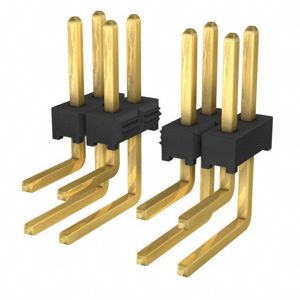

TMM-105-01-G-D-RE
2MM TERMINAL STRIP

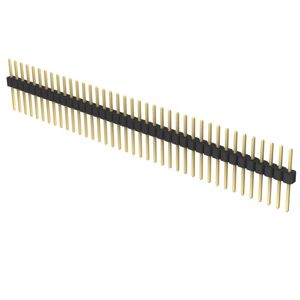

PRPC039SACN-RC
CONN HEADER VERT 39POS 2.54MM

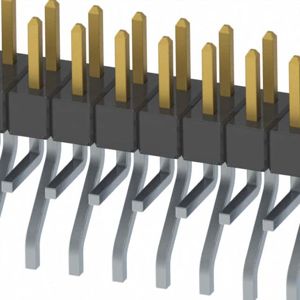

MMT-126-01-S-MT-P
CONN HEADER SMD R/A 52POS 2MM

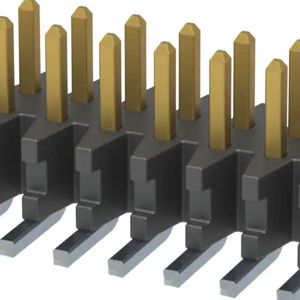

FTMH-113-03-L-DV-TR
CONN HEADER SMD 26POS 1MM

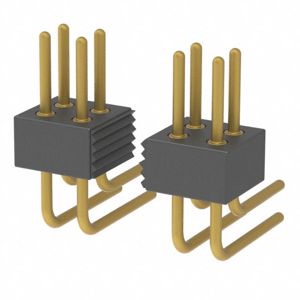

852-10-094-20-001000
CONN HEADER R/A 94POS 1.27MM

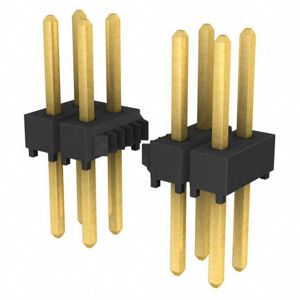

TSW-148-23-G-D
CONN HEADER VERT 96POS 2.54MM

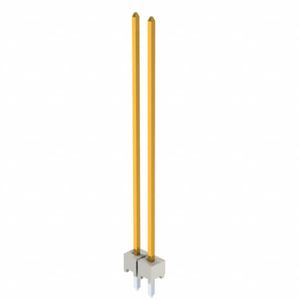

HTSW-102-21-L-S
CONN HEADER VERT 2POS 2.54MM

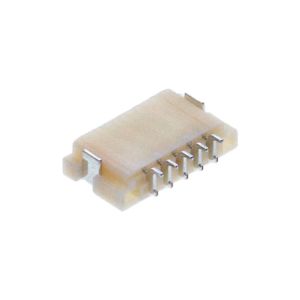

SM05B-SHLS-TF(LF)(SN)
CONN HEADER SMD R/A 5POS 1MM

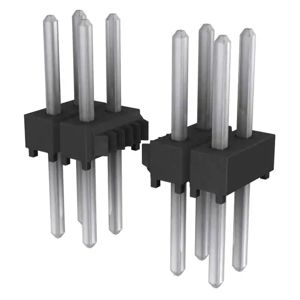

TSW-124-08-T-D
CONN HEADER VERT 48POS 2.54MM

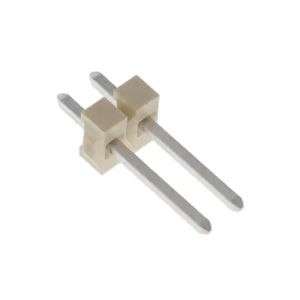

HFWJ-02-02-T-S
CONN HEADER VERT 2POS 3.96MM

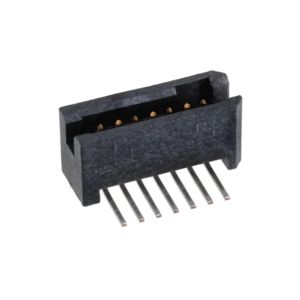

TFM-107-01-L-S-RA
CONN HEADER R/A 7POS 1.27MM
1744446-5
CONN HEADER R/A 5POS 2.5MM
