Definition & Purpose
Rectangular Connectors - Headers, Male Pins are a critical subset of Connectors and Interconnects, designed to establish robust, standardized electrical connections between printed circuit boards (PCBs), modules, or devices. These components feature a male pin interface that inserts into corresponding female sockets (receptacles), ensuring secure signal transmission or power delivery in compact, high-density layouts. Widely used in industrial, automotive, and consumer electronics, they excel in applications demanding precision, durability, and repeatable mating cycles.
Key Product Types
1. Single/Double-Row Headers: Low-profile options for space-constrained designs, available in through-hole (THT) or surface-mount (SMT) configurations.
2. Shrouded/Box Headers: Incorporate protective housings to prevent misalignment and enhance mechanical stability in harsh environments.
3. High-Current Headers: Engineered with thicker pins (e.g., 2.54mm pitch) to support power-intensive applications.
4. Right-Angle & Vertical Headers: Offer flexible PCB layout options for optimized airflow and wire routing.
5. Custom Pin-Count Solutions: Tailored configurations (e.g., 4-pin to 40-pin) to match specific circuit requirements.
Purchasing Recommendations
- Pitch & Size: Verify pin spacing (e.g., 1.27mm, 2.54mm) and row count to ensure compatibility with existing receptacles.
- Material: Prioritize high-temperature plastics (e.g., PBT) and gold-plated pins for corrosion resistance in demanding conditions.
- Current Rating: Select headers rated 3A/pin for power applications to avoid overheating.
- Compliance: Check for UL, IEC, or RoHS certifications to meet industry safety standards.
- Supplier Evaluation: Partner with vendors offering IP67-rated options for moisture-prone environments and sample/testing support.
Ideal for prototyping and mass production, these connectors balance cost-efficiency with long-term reliability critical for IoT devices, robotics, and automotive control systems. Always cross-reference datasheets to align with your project s mechanical and electrical parameters.
Filter and sort
Categories

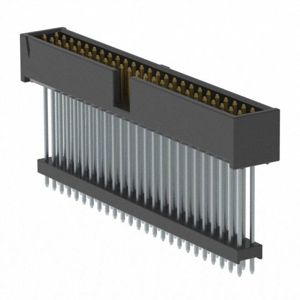

ZSS-125-06-S-D-1008
CONN HDR .100" 50POS

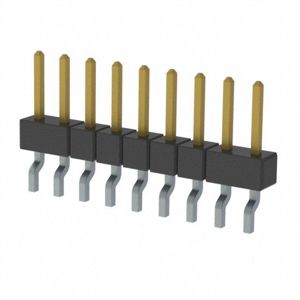

MMT-109-02-S-SH-P-TR
CONN HEADER SMD R/A 9POS 2MM

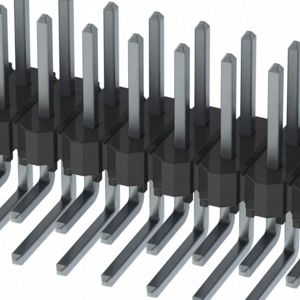

HTSW-130-08-T-D-RA
CONN HEADER R/A 60POS 2.54MM
852-80-066-20-002101
CONN HEADER R/A 66POS 1.27MM
800-90-064-62-001000
CONN HEADER VERT 64POS 2.54MM

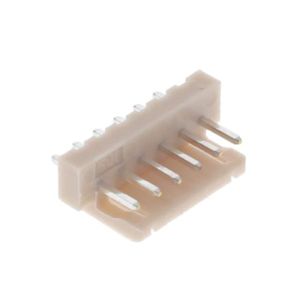

DF1-6P-2.5DSA(05)
CONN HEADER VERT 6POS 2.5MM
TMM-132-02-G-S
2MM TERMINAL STRIP
0022284010
CONN HEADER VERT 1POS
0705530058
CONN HEADER R/A 24POS 2.54MM
0436500801
CONN HEADER R/A 8POS 3MM
TSM-102-02-F-SV-P-TR
CONN HEADER SMD 2POS 2.54MM
TSM-111-01-G-SH-A
CONN HEADER SMD R/A 11POS 2.54MM

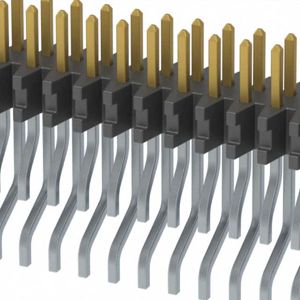

FTMH-120-02-F-DH-K-TR
CONN HEADER SMD R/A 40POS 1MM
20021121-00012D1LF
CONN HEADER SMD 12POS 1.27MM

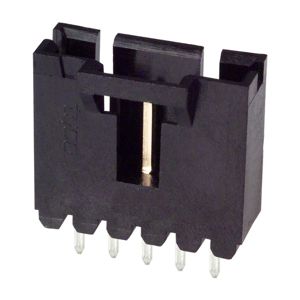

104363-4
CONN HEADER VERT 5POS 2.54MM

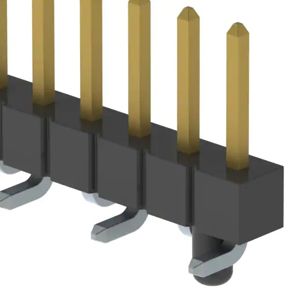

TSM-110-01-LM-SV-A-P-TR
CONN HEADER SMD 10POS 2.54MM
0022052121
CONN HEADER R/A 12POS 2.54MM

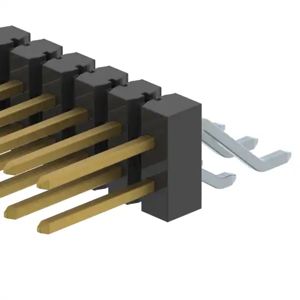

TSM-126-02-L-DH
CONN HEADER SMD R/A 52POS 2.54MM

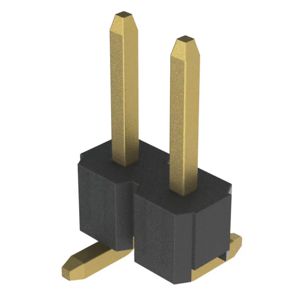

2PH1-02-UA-SMT-B
CONN HEADER SMD 2POS 2MM

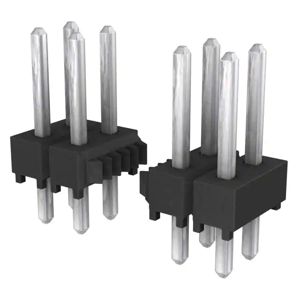

TSW-115-07-T-D
