Definition & Purpose
Rectangular Connectors - Headers, Male Pins are a critical subset of Connectors and Interconnects, designed to establish robust, standardized electrical connections between printed circuit boards (PCBs), modules, or devices. These components feature a male pin interface that inserts into corresponding female sockets (receptacles), ensuring secure signal transmission or power delivery in compact, high-density layouts. Widely used in industrial, automotive, and consumer electronics, they excel in applications demanding precision, durability, and repeatable mating cycles.
Key Product Types
1. Single/Double-Row Headers: Low-profile options for space-constrained designs, available in through-hole (THT) or surface-mount (SMT) configurations.
2. Shrouded/Box Headers: Incorporate protective housings to prevent misalignment and enhance mechanical stability in harsh environments.
3. High-Current Headers: Engineered with thicker pins (e.g., 2.54mm pitch) to support power-intensive applications.
4. Right-Angle & Vertical Headers: Offer flexible PCB layout options for optimized airflow and wire routing.
5. Custom Pin-Count Solutions: Tailored configurations (e.g., 4-pin to 40-pin) to match specific circuit requirements.
Purchasing Recommendations
- Pitch & Size: Verify pin spacing (e.g., 1.27mm, 2.54mm) and row count to ensure compatibility with existing receptacles.
- Material: Prioritize high-temperature plastics (e.g., PBT) and gold-plated pins for corrosion resistance in demanding conditions.
- Current Rating: Select headers rated 3A/pin for power applications to avoid overheating.
- Compliance: Check for UL, IEC, or RoHS certifications to meet industry safety standards.
- Supplier Evaluation: Partner with vendors offering IP67-rated options for moisture-prone environments and sample/testing support.
Ideal for prototyping and mass production, these connectors balance cost-efficiency with long-term reliability critical for IoT devices, robotics, and automotive control systems. Always cross-reference datasheets to align with your project s mechanical and electrical parameters.
Filter and sort
Categories
890-18-002-10-004101
CONN HEADER VERT 2POS 2.54MM

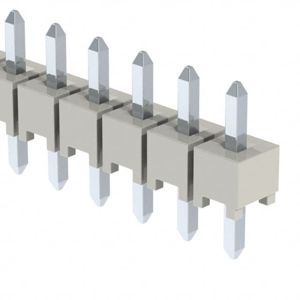

HTSW-114-06-T-S
CONN HEADER VERT 14POS 2.54MM

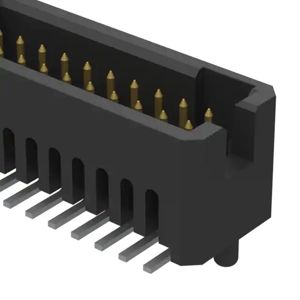

TFC-125-02-F-D-A-K-TR
CONN HEADER SMD 50POS 1.27MM
MMT-130-02-F-DH
CONN HEADER SMD R/A 60POS 2MM
ZSS-110-09-T-D-1265
CONN HDR .100" 20POS
ZSS-125-08-S-D-1215
CONN HDR .100" 50POS

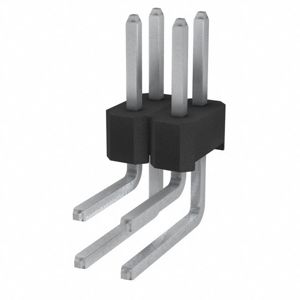

861400042LO1738LF
CONN HEADER R/A 4POS 2.54MM

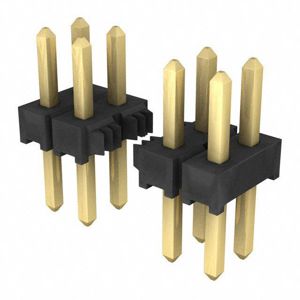

TMM-122-03-G-D
2MM TERMINAL STRIP

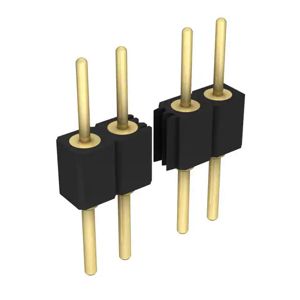

800-10-035-10-001101
CONN HEADER VERT 35POS 2.54MM
DT15-12PA
CONN HEADER VERT 12POS 4.44MM
662008231822
CONN HEADER SMD 8POS 3MM
TSM-110-01-S-DV-LC-TR
CONN HEADER SMD 20POS 2.54MM

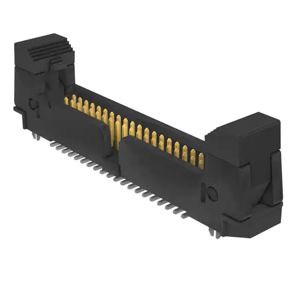

EHF-120-01-LM-D-SM-LC-P
CONN HEADER SMD 40POS 1.27MM

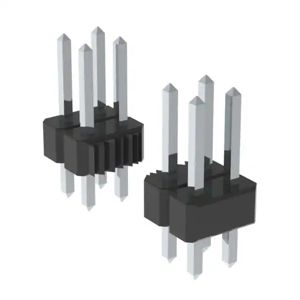

PEC16DAAN
CONN HEADER VERT 32POS 2.54MM
77314-802LF
CONN HEADER VERT 20POS 2.54MM

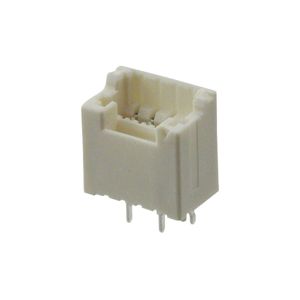

B04B-ZESK-1D(T)(LF)(SN)(N)
CONN HEADER VERT 4POS 1.5MM

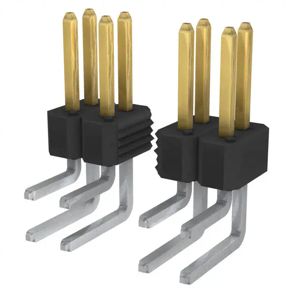

77317-804-26LF
CONN HEADER R/A 26POS 2.54MM
PEC23DACN
CONN HEADER VERT 46POS 2.54MM

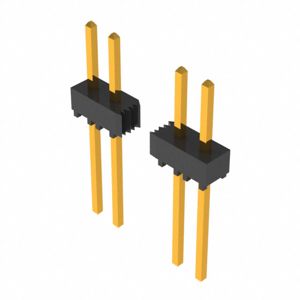

TSW-202-09-G-S
CONN HEADER VERT 2POS 5.08MM

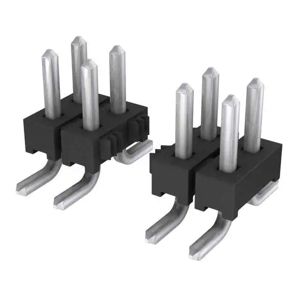

TMM-120-01-T-D-SM-TR
2MM TERMINAL STRIP
