Definition & Purpose
Rectangular Connectors - Headers, Male Pins are a critical subset of Connectors and Interconnects, designed to establish robust, standardized electrical connections between printed circuit boards (PCBs), modules, or devices. These components feature a male pin interface that inserts into corresponding female sockets (receptacles), ensuring secure signal transmission or power delivery in compact, high-density layouts. Widely used in industrial, automotive, and consumer electronics, they excel in applications demanding precision, durability, and repeatable mating cycles.
Key Product Types
1. Single/Double-Row Headers: Low-profile options for space-constrained designs, available in through-hole (THT) or surface-mount (SMT) configurations.
2. Shrouded/Box Headers: Incorporate protective housings to prevent misalignment and enhance mechanical stability in harsh environments.
3. High-Current Headers: Engineered with thicker pins (e.g., 2.54mm pitch) to support power-intensive applications.
4. Right-Angle & Vertical Headers: Offer flexible PCB layout options for optimized airflow and wire routing.
5. Custom Pin-Count Solutions: Tailored configurations (e.g., 4-pin to 40-pin) to match specific circuit requirements.
Purchasing Recommendations
- Pitch & Size: Verify pin spacing (e.g., 1.27mm, 2.54mm) and row count to ensure compatibility with existing receptacles.
- Material: Prioritize high-temperature plastics (e.g., PBT) and gold-plated pins for corrosion resistance in demanding conditions.
- Current Rating: Select headers rated 3A/pin for power applications to avoid overheating.
- Compliance: Check for UL, IEC, or RoHS certifications to meet industry safety standards.
- Supplier Evaluation: Partner with vendors offering IP67-rated options for moisture-prone environments and sample/testing support.
Ideal for prototyping and mass production, these connectors balance cost-efficiency with long-term reliability critical for IoT devices, robotics, and automotive control systems. Always cross-reference datasheets to align with your project s mechanical and electrical parameters.
Filter and sort
Categories

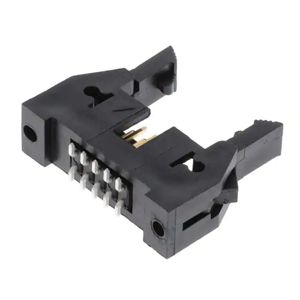

53611-S10-8LF
CONN HEADER SMD 10POS 2.54MM
860-10-023-40-001101

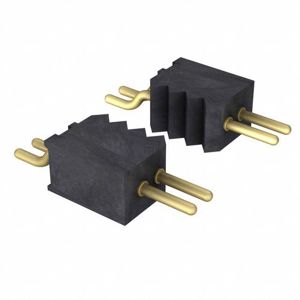

CONN HEADER SMD R/A 23POS 1MM

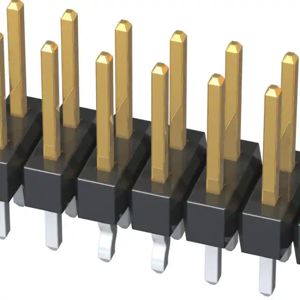

0702871114
CONN HEADER VERT 36POS 2.54MM
FTMH-145-02-L-DV-ES-P-TR

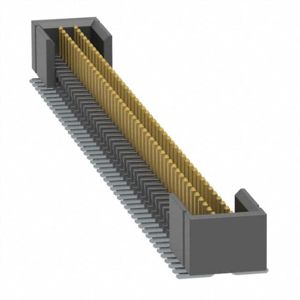

CONN HEADER SMD 90POS 1MM

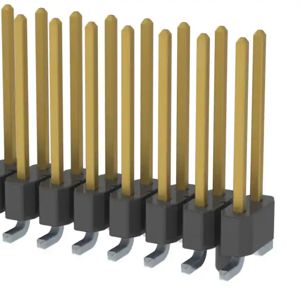

TSM-112-03-SM-DV-A-P-TR
CONN HEADER SMD 24POS 2.54MM

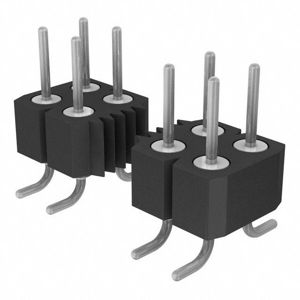

450-80-240-00-106101
CONN HEADER SMD 40POS 2.54MM
5-103675-5

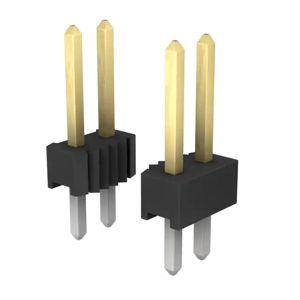

CONN HEADER VERT 10POS 2.54MM

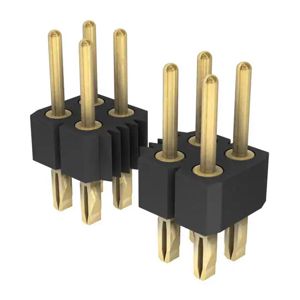

802-10-036-65-001101
CONN HEADER VERT 36POS 2.54MM
TSM-118-05-F-DV-A
CONN HEADER SMD 36POS 2.54MM

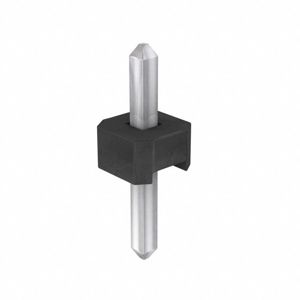

TLW-101-06-T-S
CONN HEADER VERT 1POS
PEC06SAHN
CONN HEADER VERT 6POS 2.54MM
0015911182

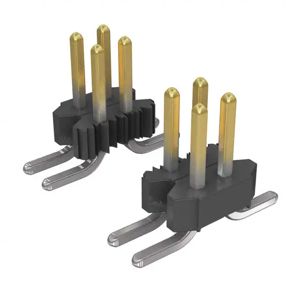

CONN HEADER SMD 18POS 2.54MM
10146997-10100LF

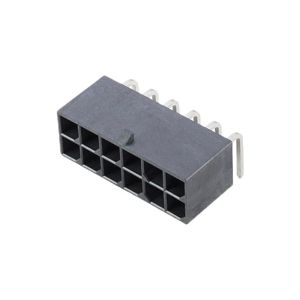

CONN 5.70MM RIGHT ANGLE TH
TSM-125-03-L-SV

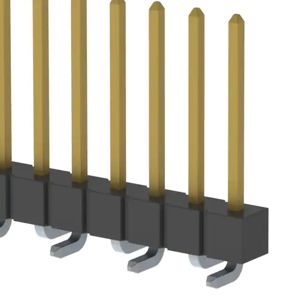

CONN HEADER SMD 25POS 2.54MM

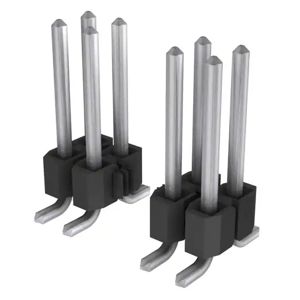

TSM-108-02-T-DV-P
CONN HEADER SMD 16POS 2.54MM

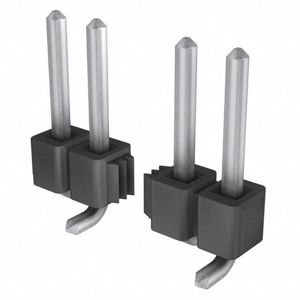

TSM-112-01-TM-SV
CONN HEADER SMD 12POS 2.54MM

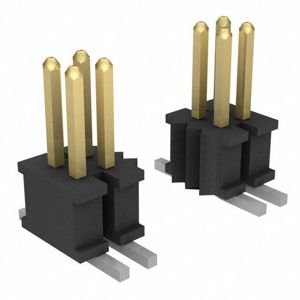

FTSH-108-04-L-DV
CONN HEADER SMD 16POS 1.27MM
3020-10-0300-00

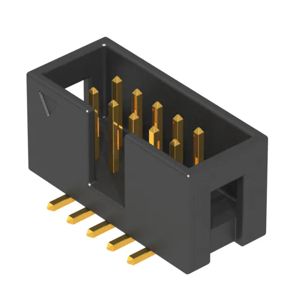

CONN HEADER SMD 10POS 2.54MM
102155-1

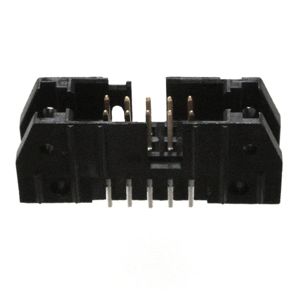

CONN HEADER VERT 10POS 2.54MM

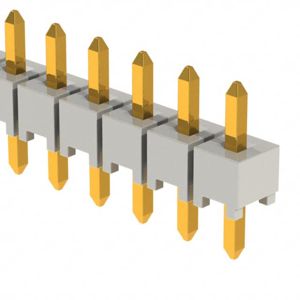

HTSW-120-06-G-S
CONN HEADER VERT 20POS 2.54MM
