Definition & Purpose
Rectangular Connectors - Headers, Male Pins are a critical subset of Connectors and Interconnects, designed to establish robust, standardized electrical connections between printed circuit boards (PCBs), modules, or devices. These components feature a male pin interface that inserts into corresponding female sockets (receptacles), ensuring secure signal transmission or power delivery in compact, high-density layouts. Widely used in industrial, automotive, and consumer electronics, they excel in applications demanding precision, durability, and repeatable mating cycles.
Key Product Types
1. Single/Double-Row Headers: Low-profile options for space-constrained designs, available in through-hole (THT) or surface-mount (SMT) configurations.
2. Shrouded/Box Headers: Incorporate protective housings to prevent misalignment and enhance mechanical stability in harsh environments.
3. High-Current Headers: Engineered with thicker pins (e.g., 2.54mm pitch) to support power-intensive applications.
4. Right-Angle & Vertical Headers: Offer flexible PCB layout options for optimized airflow and wire routing.
5. Custom Pin-Count Solutions: Tailored configurations (e.g., 4-pin to 40-pin) to match specific circuit requirements.
Purchasing Recommendations
- Pitch & Size: Verify pin spacing (e.g., 1.27mm, 2.54mm) and row count to ensure compatibility with existing receptacles.
- Material: Prioritize high-temperature plastics (e.g., PBT) and gold-plated pins for corrosion resistance in demanding conditions.
- Current Rating: Select headers rated 3A/pin for power applications to avoid overheating.
- Compliance: Check for UL, IEC, or RoHS certifications to meet industry safety standards.
- Supplier Evaluation: Partner with vendors offering IP67-rated options for moisture-prone environments and sample/testing support.
Ideal for prototyping and mass production, these connectors balance cost-efficiency with long-term reliability critical for IoT devices, robotics, and automotive control systems. Always cross-reference datasheets to align with your project s mechanical and electrical parameters.
Filter and sort
Categories

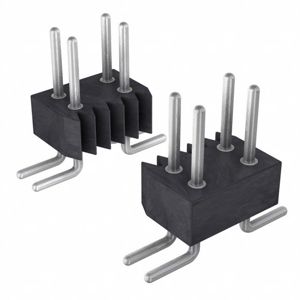

852-80-070-30-002101
CONN HEADER SMD 70POS 1.27MM

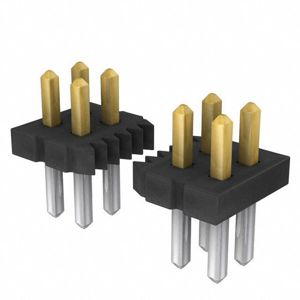

FTS-149-03-L-D
CONN HEADER VERT 98POS 1.27MM

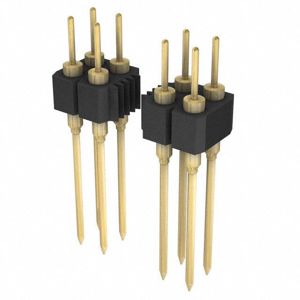

453-10-236-00-001101
CONN HEADER VERT 36POS 2.54MM
TMMH-112-04-L-D
2MM LOW PROFILE STRIPS
PBC01DBBN
CONN HEADER R/A 2POS
77317-403-08LF
CONN HEADER R/A 8POS 2.54MM
0532610571
CONN HEADER SMD R/A 5POS 1.25MM

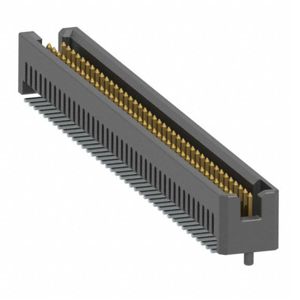

TFM-140-02-S-D-A-K
CONN HEADER SMD 80POS 1.27MM
TSW-139-23-G-D
CONN HEADER VERT 78POS 2.54MM
1-177662-2
CONN HEADER SMD R/A 5POS 3.81MM

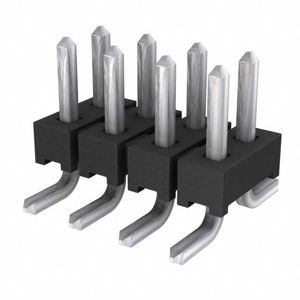

TMM-104-06-TM-D-SM
2MM TERMINAL STRIP

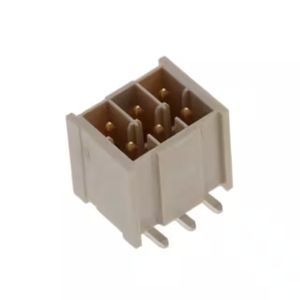

IPL1-103-02-S-D-K
CONN HEADER SMD 6POS 2.54MM
451-10-240-00-004101
CONN HEADER VERT 40POS 2.54MM

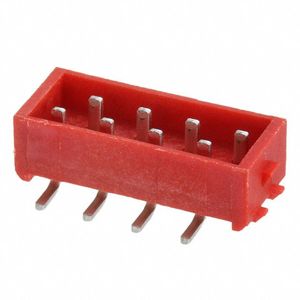

690357280876
CONN HEADER SMD 8POS 2.54MM
3-647609-8
CONN HEADER VERT 8POS 2.54MM
TSM-112-02-S-DH-A-K
CONN HEADER SMD R/A 24POS 2.54MM
TFM-120-02-L-D-A-TR
CONN HEADER SMD 40POS 1.27MM

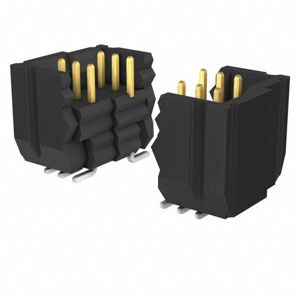

BKT-131-04-L-V-S
CONN HEADER SMD 31POS 1MM
0430450217
CONN HEADER SMD 2POS
PBC29DAAN
CONN HEADER VERT 58POS 2.54MM
