Definition & Purpose
Rectangular Connectors - Headers, Male Pins are a critical subset of Connectors and Interconnects, designed to establish robust, standardized electrical connections between printed circuit boards (PCBs), modules, or devices. These components feature a male pin interface that inserts into corresponding female sockets (receptacles), ensuring secure signal transmission or power delivery in compact, high-density layouts. Widely used in industrial, automotive, and consumer electronics, they excel in applications demanding precision, durability, and repeatable mating cycles.
Key Product Types
1. Single/Double-Row Headers: Low-profile options for space-constrained designs, available in through-hole (THT) or surface-mount (SMT) configurations.
2. Shrouded/Box Headers: Incorporate protective housings to prevent misalignment and enhance mechanical stability in harsh environments.
3. High-Current Headers: Engineered with thicker pins (e.g., 2.54mm pitch) to support power-intensive applications.
4. Right-Angle & Vertical Headers: Offer flexible PCB layout options for optimized airflow and wire routing.
5. Custom Pin-Count Solutions: Tailored configurations (e.g., 4-pin to 40-pin) to match specific circuit requirements.
Purchasing Recommendations
- Pitch & Size: Verify pin spacing (e.g., 1.27mm, 2.54mm) and row count to ensure compatibility with existing receptacles.
- Material: Prioritize high-temperature plastics (e.g., PBT) and gold-plated pins for corrosion resistance in demanding conditions.
- Current Rating: Select headers rated 3A/pin for power applications to avoid overheating.
- Compliance: Check for UL, IEC, or RoHS certifications to meet industry safety standards.
- Supplier Evaluation: Partner with vendors offering IP67-rated options for moisture-prone environments and sample/testing support.
Ideal for prototyping and mass production, these connectors balance cost-efficiency with long-term reliability critical for IoT devices, robotics, and automotive control systems. Always cross-reference datasheets to align with your project s mechanical and electrical parameters.
Filter and sort
Categories

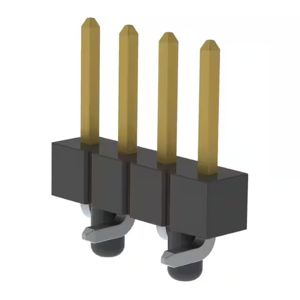

TSM-104-01-L-SV-A
CONN HEADER SMD 4POS 2.54MM
TFML-125-01-L-D-RA
CONN HEADER R/A 50POS 1.27MM

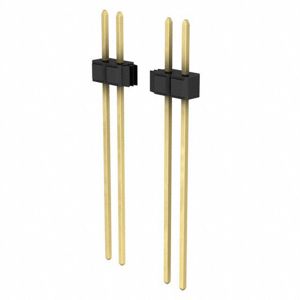

929647-07-20-EU
CONN HEADER VERT 20POS 2.54MM

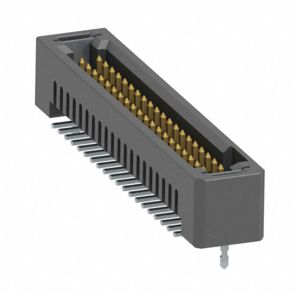

TFM-120-02-S-D-WT-K
CONN HEADER SMD 40POS 1.27MM

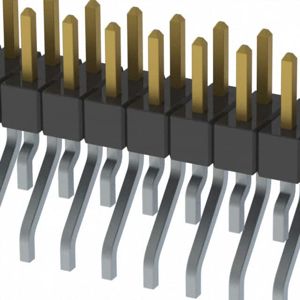

MMT-112-01-L-DH-K
CONN HEADER SMD R/A 24POS 2MM

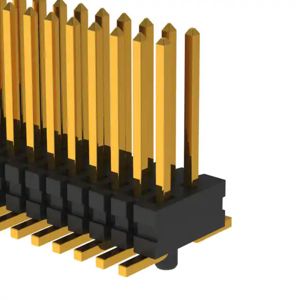

FTE-146-01-G-DV-A
CONN HEADER SMD 92POS 0.8MM
PRPC028DFAN-RC
CONN HEADER VERT 56POS 2.54MM
TSM-119-01-S-DH-A
CONN HEADER SMD R/A 38POS 2.54MM

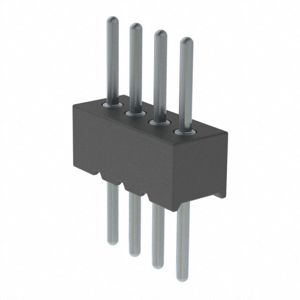

850-90-004-10-001000
CONN HEADER VERT 4POS 1.27MM

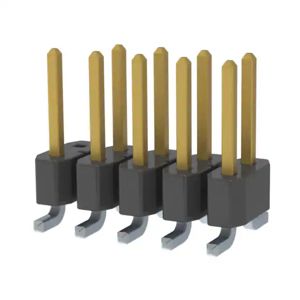

TSM-105-01-L-DV-010-TR
CONN HEADER SMD 10POS 2.54MM
09185505912
CONN HEADER VERT 50POS 2.54MM
3-641216-9
CONN HEADER R/A 9POS 2.54MM

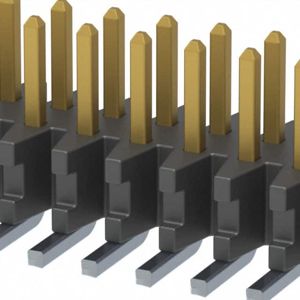

FTMH-116-02-L-DV-P
CONN HEADER SMD 32POS 1MM
TSM-105-01-TM-DV-P
CONN HEADER SMD 10POS 2.54MM
0705430002
CONN HEADER VERT 3POS 2.54MM
0416610026
CONN HEADER VERT 4POS 3.96MM

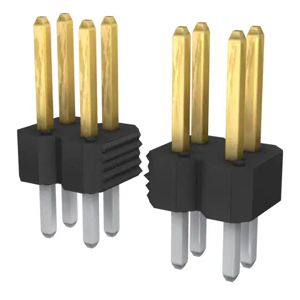

77313-102-24LF
CONN HEADER VERT 24POS 2.54MM
830-10-008-40-028000
CONN HEADER SMD R/A 8POS 2.54MM

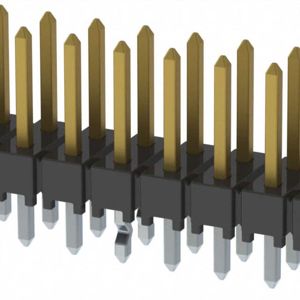

HTSW-113-07-L-D-LL
CONN HEADER VERT 26POS 2.54MM

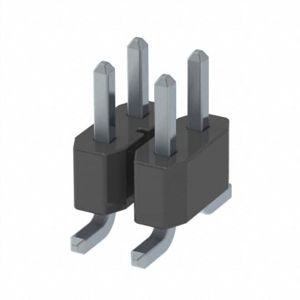

TSM-102-04-T-DV
