Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

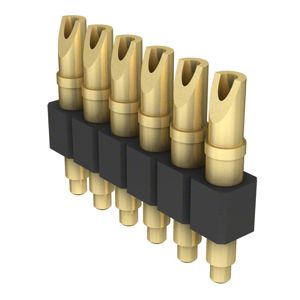

824-22-006-00-001000
CONN SPRING PISTON 6POS SLD PCB

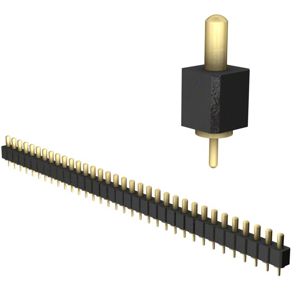

821-22-034-10-004101
CONN SPRING PISTON 34POS PCB

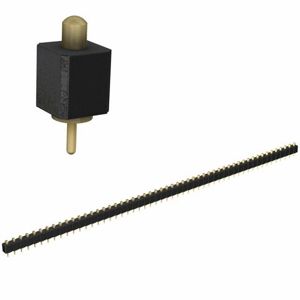

821-22-053-10-001101
CONN SPRING PISTON 53POS PCB

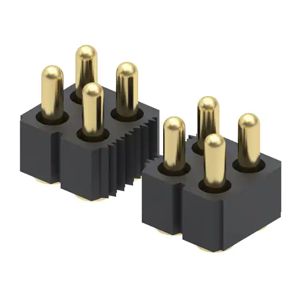

813-22-016-30-004101
CONN SPRING PISTON 16POS SMD

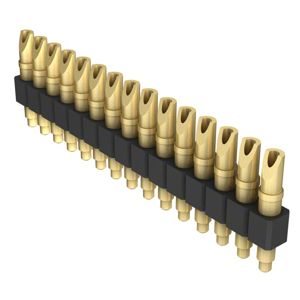

824-22-015-00-001000
CONN SPRING PISTON 15POS SLD PCB

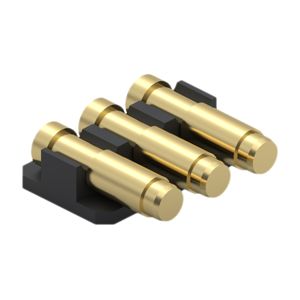

319-10-103-40-080001
CONN SPRING TARGET 3POS R/A SMD

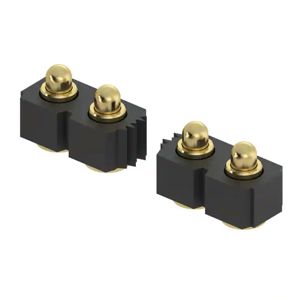

811-22-053-30-000101
CONN SPRING PISTON 53POS SMD

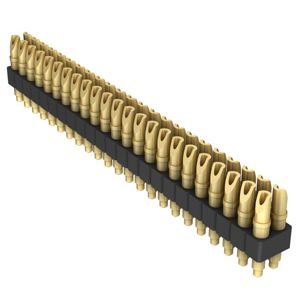

826-22-046-00-001000
CONN SPRING PISTON 46POS SLD PCB
811-SS-007-30-003101
CONN SPRING PISTON 7POS SMD

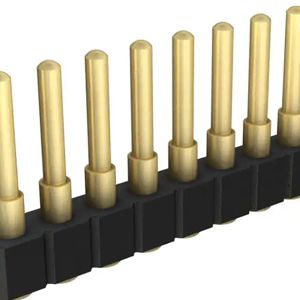

812-22-033-30-002101
CONN SPRING PISTON 33POS SMD

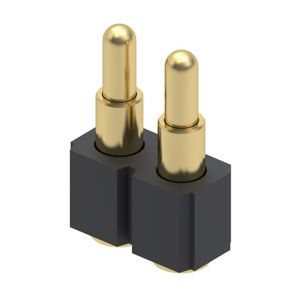

812-22-002-30-002101
CONN SPRING PISTON 2POS SMD
821-22-051-10-001101
CONN SPRING PISTON 51POS PCB
811-SS-007-30-004101
CONN SPRING PISTON 7POS SMD

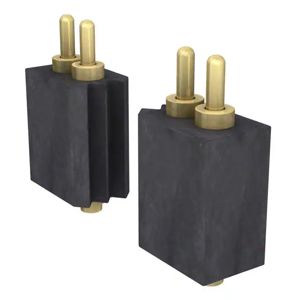

854-22-008-30-001101
CONN SPRING PISTON 8POS SMD

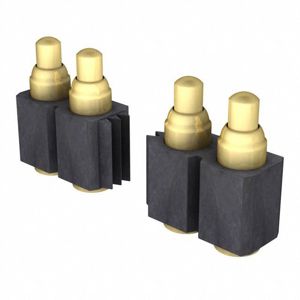

821-S1-009-30-014191
CONN SPRING PISTON 9POS SMD

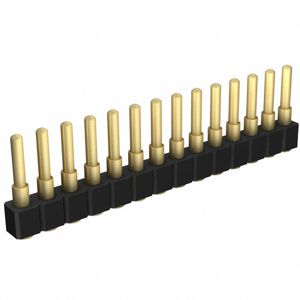

812-22-014-30-000101
CONN SPRING PISTON 14POS SMD

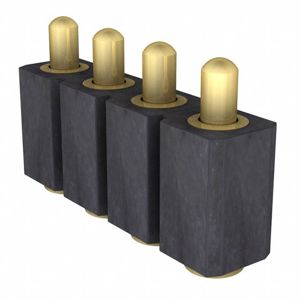

811-SS-004-30-022101
CONN SPRING PISTON 4POS SMD
811-S1-046-10-017101
CONN SPRING PISTON 46POS PCB

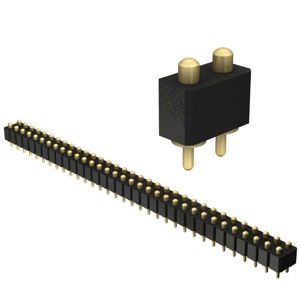

823-22-066-10-001101
CONN SPRING PISTON 66POS PCB
811-S1-005-30-016191
CONN SPRING PISTON 5POS SMD
