Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories
811-S1-017-10-017101
CONN SPRING PISTON 17POS PCB

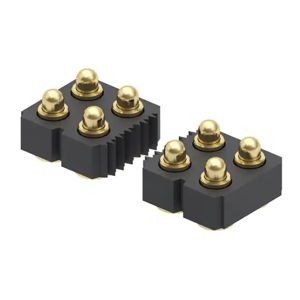

813-22-018-30-000101
CONN SPRING PISTON 18POS SMD

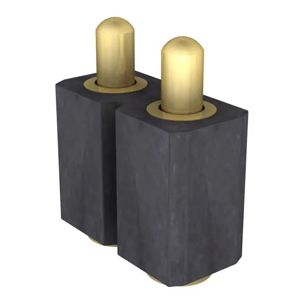

811-SS-002-30-001101
CONN SPRING PISTON 2POS SMD

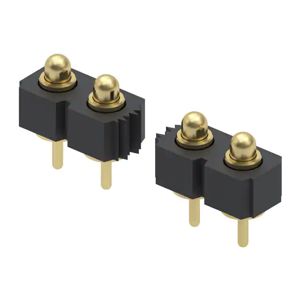

821-22-042-10-000101
CONN SPRING PISTON 42POS PCB

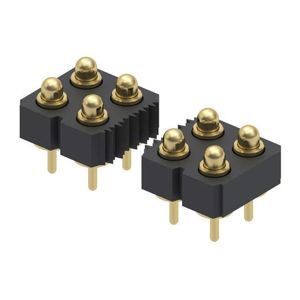

823-22-014-10-000101
CONN SPRING PISTON 14POS PCB

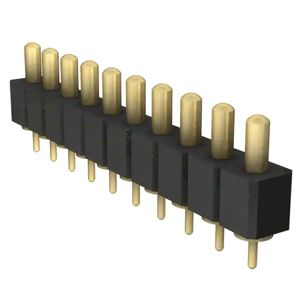

821-22-010-10-004101
CONN SPRING PISTON 10POS PCB
811-S1-028-10-017101
CONN SPRING PISTON 28POS PCB

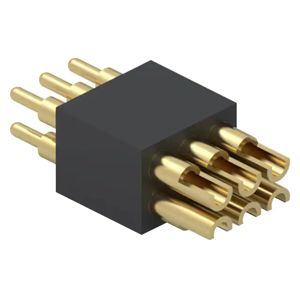

855-22-006-10-003101
CONN SPRING PISTON 6POS SLD PCB

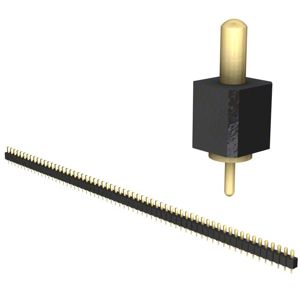

821-22-062-10-004101
CONN SPRING PISTON 62POS PCB

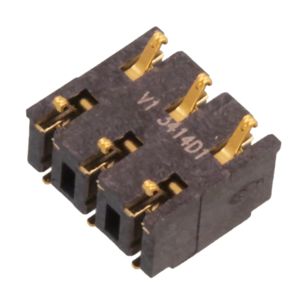

2199064-2
CONN SPRING MOD 6POS SMD

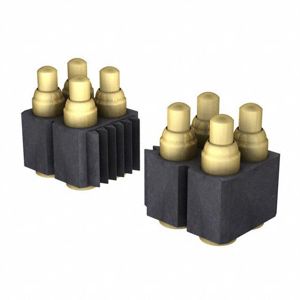

823-S1-014-30-012101
CONN SPRING PISTON 14POS SMD
823-S1-016-30-012101
CONN SPRING PISTON 16POS SMD

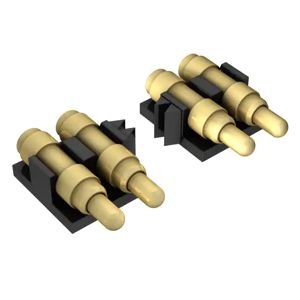

8PM-11-0007-02-260
CONN SPRING PISTON 7POS R/A SMD

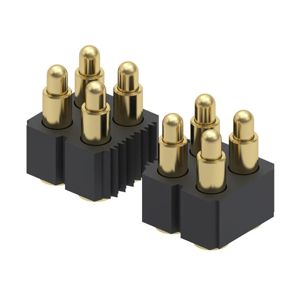

814-22-054-30-000101
CONN SPRING PISTON 54POS SMD

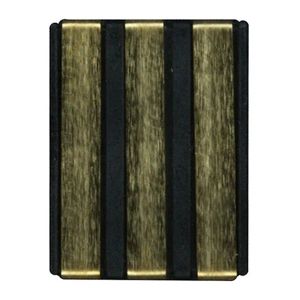

70AAJ-3-F0G
CONN SPRING MOD FEMALE 3POS SMD

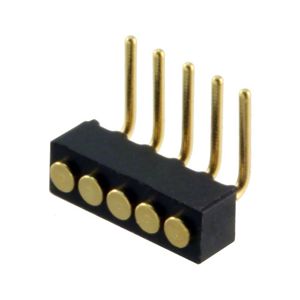

856-10-005-20-001000
CONN SPRING TARGET 5POS R/A PCB
813-S1-014-30-015101
CONN SPRING PISTON 14POS SMD
823-S1-018-30-015101
CONN SPRING PISTON 18POS SMD
821-22-054-10-003101
CONN SPRING PISTON 54POS PCB

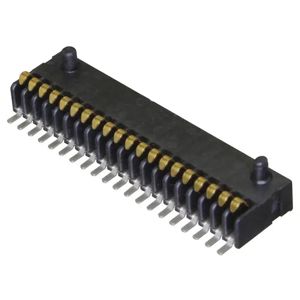

SIBF-20-F-S-AD
CONN SPRING MOD 20POS SMD
