Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories
PH1-3B-10-MVP-5375
CONN SPRING PISTON 10POS PCB

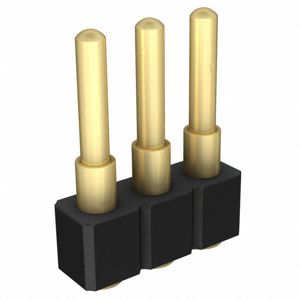

812-22-003-30-000101
CONN SPRING PISTON 3POS SMD

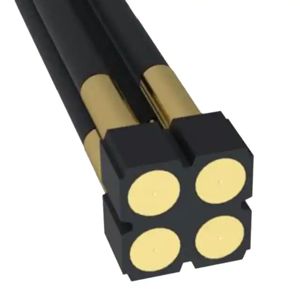

889-10-004-70-502010
WIRE TERMINATION SPRING-LOADED T
811-SS-007-30-001191
CONN SPRING PISTON 7POS SMD

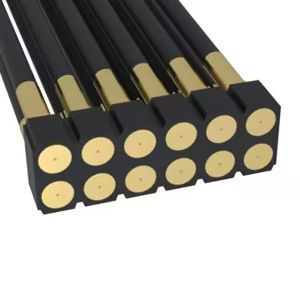

889-10-012-70-502010
WIRE TERMINATION SPRING-LOADED T

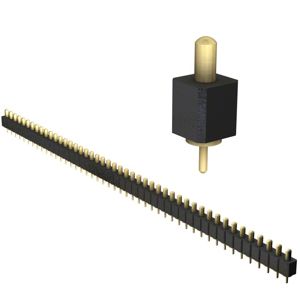

821-22-046-10-003101
CONN SPRING PISTON 46POS PCB

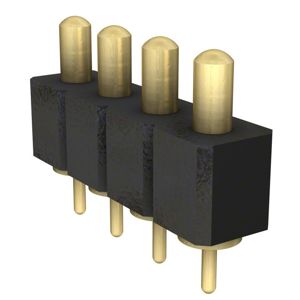

821-22-004-10-003101
CONN SPRING PISTON 4POS PCB

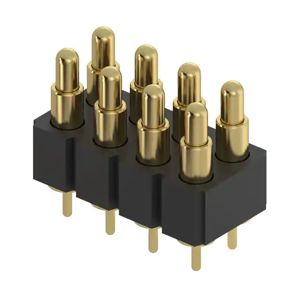

818-22-008-10-001101
CONN SPRING PISTON 8POS PCB

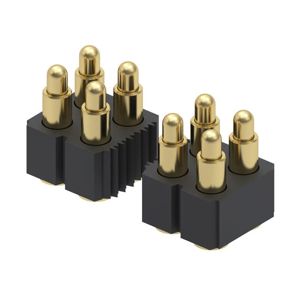

814-22-010-30-000101
CONN SPRING PISTON 10POS SMD

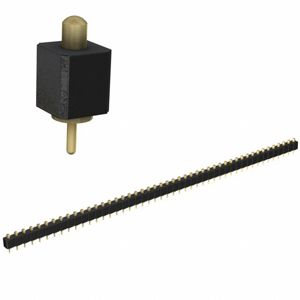

821-22-047-10-001101
CONN SPRING PISTON 47POS PCB
813-SS-006-30-026101
CONN SPRING PISTON 6POS SMD
813-S1-040-10-015101
CONN SPRING PISTON 40POS PCB

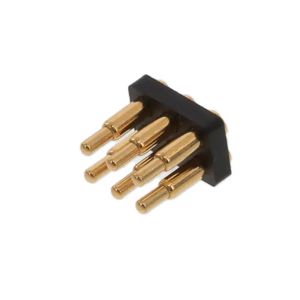

PH2-3B-06-MVF-5375
CONN SPRING PISTON 6POS SMD

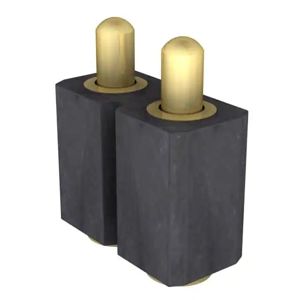

811-SS-002-30-678101-CLIP
CONN SPRING PISTON 2POS SMD, HIG

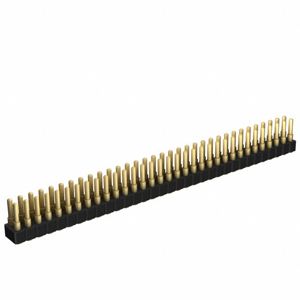

814-22-066-30-001101
CONN SPRING PISTON 66POS SMD
811-SS-007-30-004191
CONN SPRING PISTON 7POS SMD

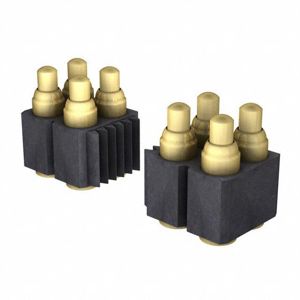

823-S1-010-30-012101
CONN SPRING PISTON 10POS SMD

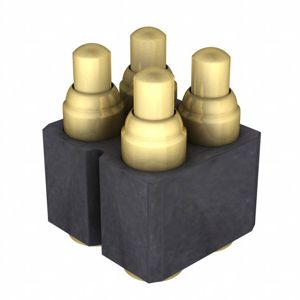

823-S1-004-30-015101
CONN SPRING PISTON 4POS SMD

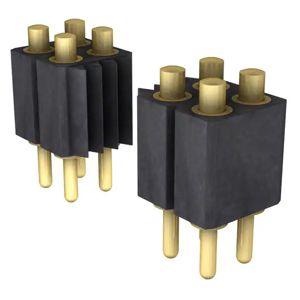

813-S1-014-10-014101
CONN SPRING PISTON 14POS PCB
811-S1-047-10-017101
CONN SPRING PISTON 47POS PCB
