Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories
811-SS-009-30-025101
CONN SPRING PISTON 9POS SMD
815-22-020-30-001101
CONN SPRING PISTON 20POS SMD
821-S1-002-30-012101
CONN SPRING PISTON 2POS SMD
826-22-024-00-001000
CONN SPRING PISTON 24POS SLD PCB
813-22-020-30-001101
CONN SPRING PISTON 20POS SMD
839-22-004-30-001101
CONN SPRING PISTON 4POS SMD
009258008004063
CONN SPRING MOD 8POS SMD
813-SS-026-10-474101
CONN SPRING PISTON 26POS PCB

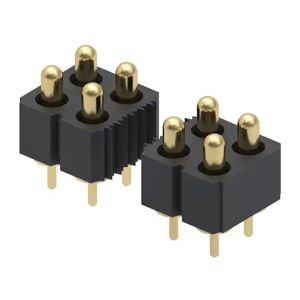

823-22-030-10-002101
CONN SPRING PISTON 30POS PCB

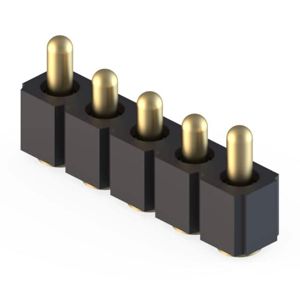

811-22-005-30-022101
FMLB SPRING-LOADED CONN, SMT SIN

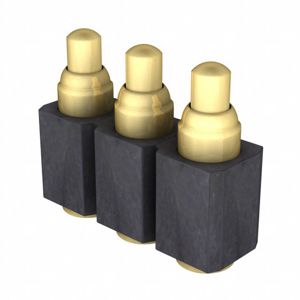

821-S1-003-30-012191
CONN SPRING PISTON 3POS SMD
811-S1-011-10-017101
CONN SPRING PISTON 11POS PCB

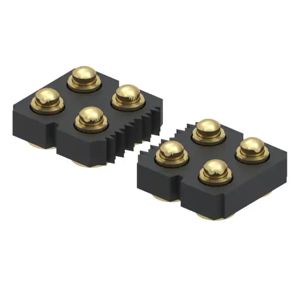

817-22-010-30-001101
CONN SPRING PISTON 10POS SMD
811-22-028-30-001101
CONN SPRING PISTON 28POS SMD
811-SS-008-30-022101
CONN SPRING PISTON 8POS SMD

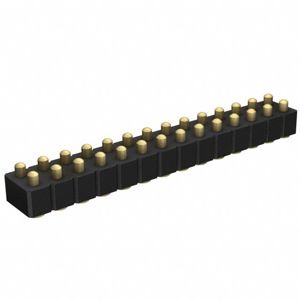

813-22-028-30-001101
CONN SPRING PISTON 28POS SMD

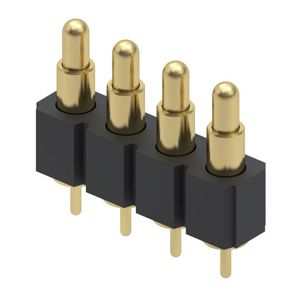

816-22-004-10-001101
CONN SPRING PISTON 4POS PCB

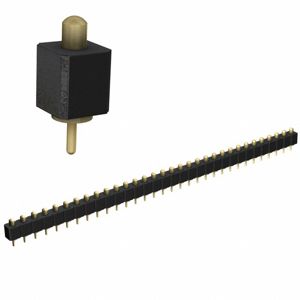

821-22-032-10-001101
CONN SPRING PISTON 32POS PCB
813-SS-016-30-027101
CONN SPRING PISTON 16POS SMD

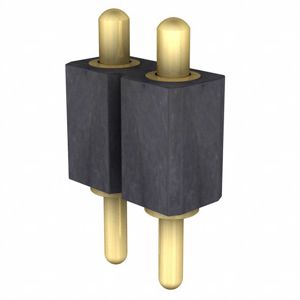

811-S1-002-10-016101
CONN SPRING PISTON 2POS PCB
