Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

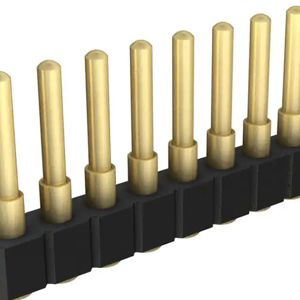

812-22-025-30-002101
CONN SPRING PISTON 25POS SMD
813-SS-018-30-007101
CONN SPRING PISTON 18POS SMD

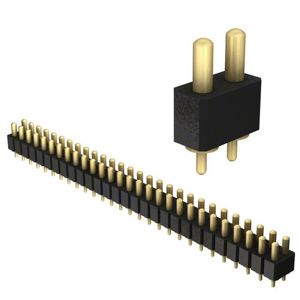

823-22-056-10-004101
CONN SPRING PISTON 56POS PCB
811-S1-022-10-015101
CONN SPRING PISTON 22POS PCB

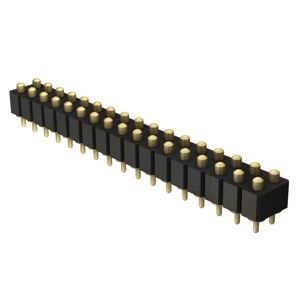

823-22-034-10-001101
CONN SPRING PISTON 34POS PCB

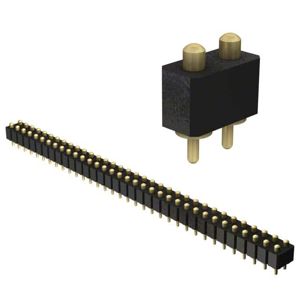

823-22-068-10-001101
CONN SPRING PISTON 68POS PCB

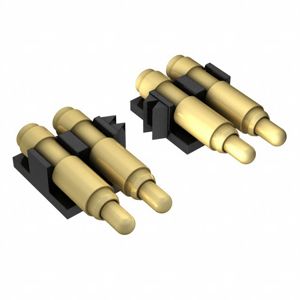

8PM-11-0005-02-131
CONN SPRING PISTON 5POS R/A SMD

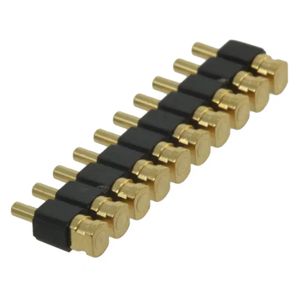

810-22-010-40-001101
CONN SPRING PISTON 10POS R/A SMD
399-10-115-10-008000
CONN SPRING TARGET 15POS R/A PCB

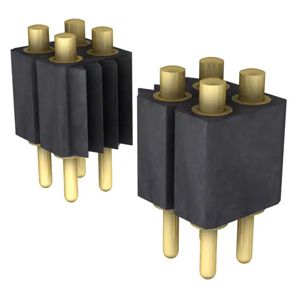

813-S1-054-10-016101
CONN SPRING PISTON 54POS PCB

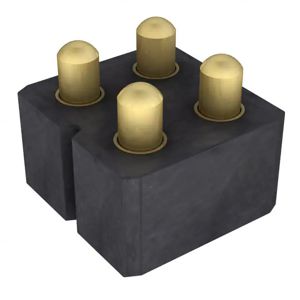

813-SS-004-30-005191
CONN SPRING PISTON 4POS SMD

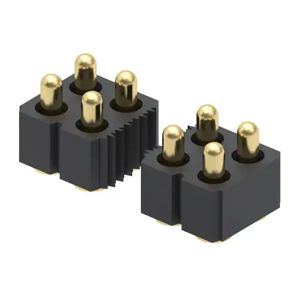

813-22-012-30-002101
CONN SPRING PISTON 12POS SMD
821-S1-003-30-015101
CONN SPRING PISTON 3POS SMD
811-S1-031-10-017101
CONN SPRING PISTON 31POS PCB

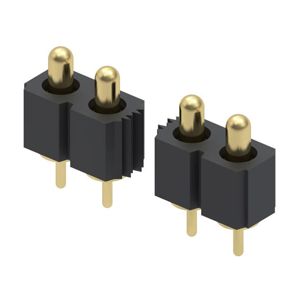

821-22-020-10-002101
CONN SPRING PISTON 20POS PCB

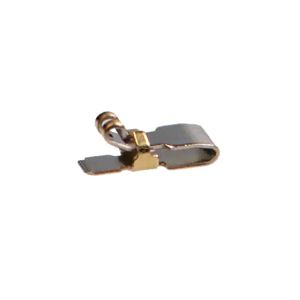

IPS-4067T-01Y900
COMPRESSION SPRING B-B SMT 0.7-0
811-S1-008-10-014101
CONN SPRING PISTON 8POS PCB

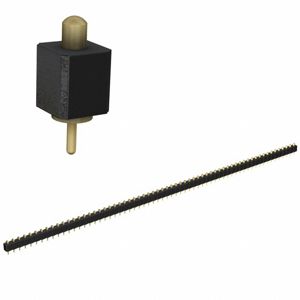

821-22-063-10-001101
CONN SPRING PISTON 63POS PCB

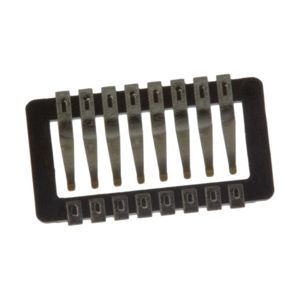

009258008008062
CONN SPRING MOD 8POS SMD
813-SS-016-30-002101
CONN SPRING PISTON 16POS SMD
