Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories
818-22-072-10-004101
CONN SPRING PISTON 72POS PCB
811-SS-005-30-004101
CONN SPRING PISTON 5POS SMD
812-22-005-30-000101
CONN SPRING PISTON 5POS SMD
SIR1-03-L-S-K-TR
CONN SPRING MOD 3POS R/A SMD
813-22-042-30-002101
CONN SPRING PISTON 42POS SMD
821-22-024-10-001101
CONN SPRING PISTON 24POS PCB
889-10-016-70-502010
WIRE TERMINATION SPRING-LOADED T
821-22-020-10-001101
CONN SPRING PISTON 20POS PCB
878-22-002-10-011101
MAGNETIC SPRING-LOADED PIN HEADE

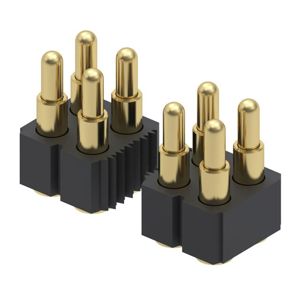

814-22-038-30-002101
CONN SPRING PISTON 38POS SMD

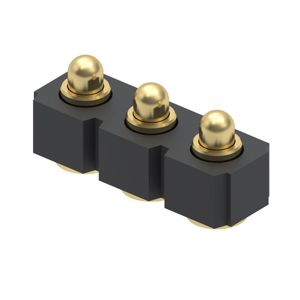

811-22-003-30-000101
CONN SPRING PISTON 3POS SMD

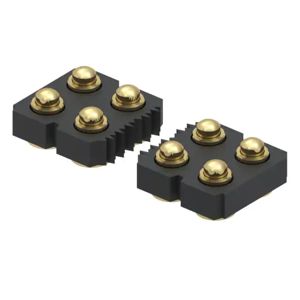

817-22-058-30-001101
CONN SPRING PISTON 58POS SMD

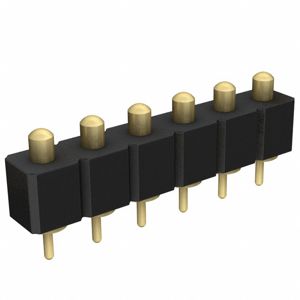

821-22-006-10-001101
CONN SPRING PISTON 6POS PCB

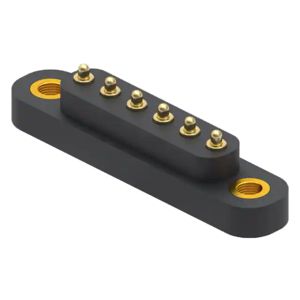

858-22-006-80-012101
CONN SPRING PISTON 6POS PCB

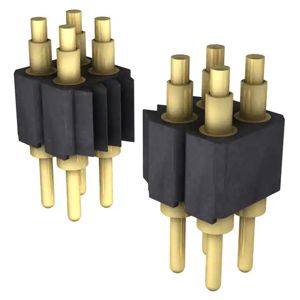

813-SS-020-10-474101
CONN SPRING PISTON 20POS PCB
813-SS-020-30-005101
CONN SPRING PISTON 20POS SMD
811-SS-008-30-003101
CONN SPRING PISTON 8POS SMD

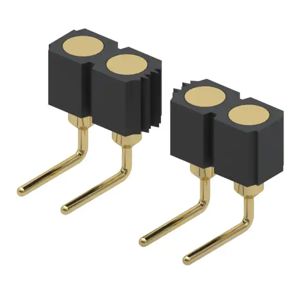

399-10-158-10-008000
CONN SPRING TARGET 58POS R/A PCB
812-22-064-30-004101
CONN SPRING PISTON 64POS SMD

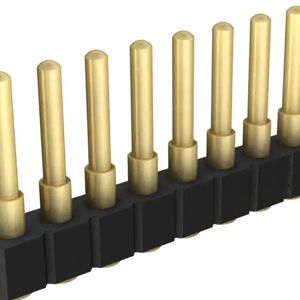

812-22-047-30-002101
CONN SPRING PISTON 47POS SMD
