Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded

Rectangular Connectors - Spring Loaded: Category Overview

1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.

2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.

3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.

Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.

Found 7614 items

Filter and sort

Categories

813-SS-008-10-474101

CONN SPRING PISTON 8POS PCB


813-SS-004-30-681101-CLIP

CONN SPRING PISTON 4POS SMD, HIG


856-10-020-40-001000

CONN SPRING TARGET 20POS R/A SMD


825-22-004-10-020101

FMLB SPRING-LOADED CONN, TH SING


813-SS-060-10-474101

CONN SPRING PISTON 60POS PCB


845-22-010-10-011101

4MM PITCH SINGLE ROW THROUGH HOL


811-22-004-30-002101

CONN SPRING PISTON 4POS SMD


811-S1-044-10-017101

CONN SPRING PISTON 44POS PCB


823-22-040-10-002101

CONN SPRING PISTON 40POS PCB

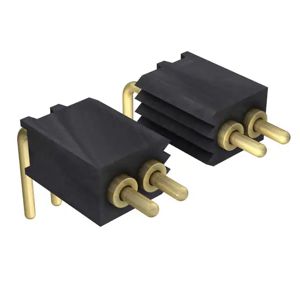

854-22-020-20-001101

CONN SPRING PISTON 20POS R/A PCB

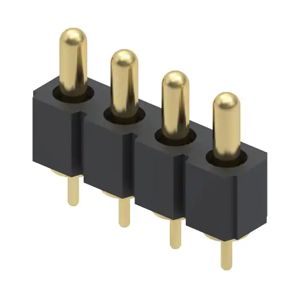

821-22-004-10-004101

CONN SPRING PISTON 4POS PCB

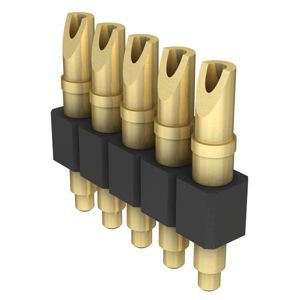

824-22-005-00-005000

CONN SPRING PISTON 5POS SLD PCB

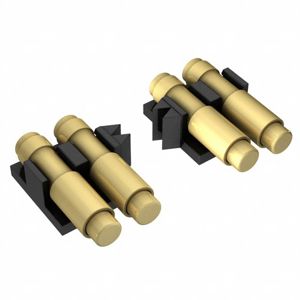

8MM-11-0009-02-131191

CONN SPRING TARGET 9POS R/A SMD

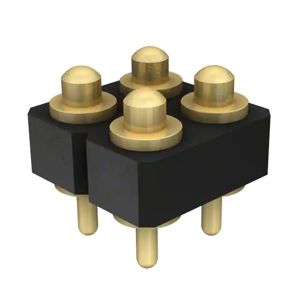

823-22-004-10-000101

CONN SPRING PISTON 4POS PCB

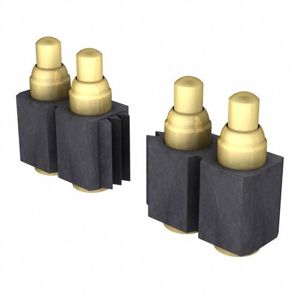

821-S1-006-30-012191

CONN SPRING PISTON 6POS SMD

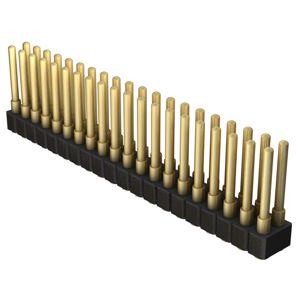

814-22-040-30-009101

CONN SPRING PISTON 40POS SMD

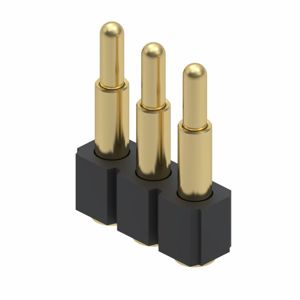

837-22-003-30-001101

CONN SPRING PISTON 3POS SMD

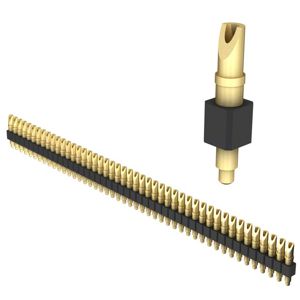

824-22-046-00-001000

CONN SPRING PISTON 46POS SLD PCB

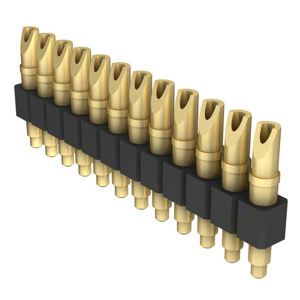

824-22-012-00-001000

CONN SPRING PISTON 12POS SLD PCB

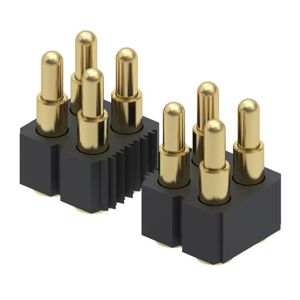

814-22-028-30-002101

CONN SPRING PISTON 28POS SMD
