Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

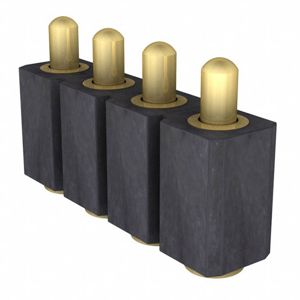

811-SS-004-30-001191
CONN SPRING PISTON 4POS SMD

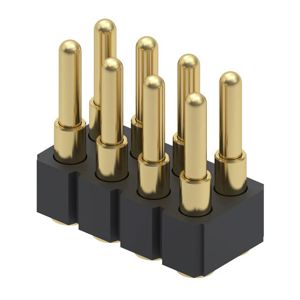

814-22-008-30-006101
CONN SPRING PISTON 8POS SMD

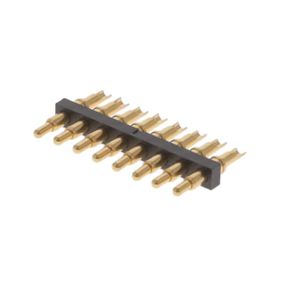

PH1-3B-08-MVS-5375
CONN SPRING PISTON 8POS SLD PCB
813-SS-028-10-474101
CONN SPRING PISTON 28POS PCB

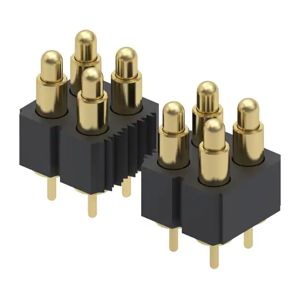

818-22-072-10-000101
CONN SPRING PISTON 72POS PCB

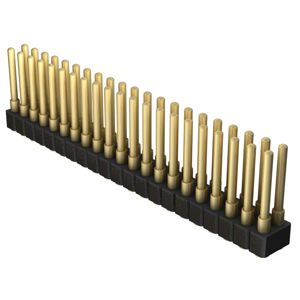

814-22-042-30-009101
CONN SPRING PISTON 42POS SMD

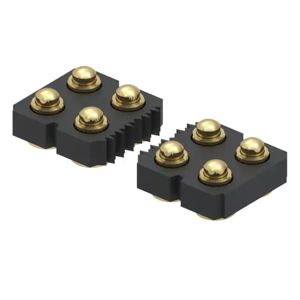

817-22-012-30-001101
CONN SPRING PISTON 12POS SMD

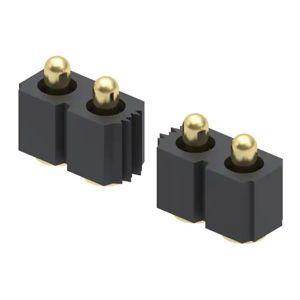

811-22-017-30-001101
CONN SPRING PISTON 17POS SMD

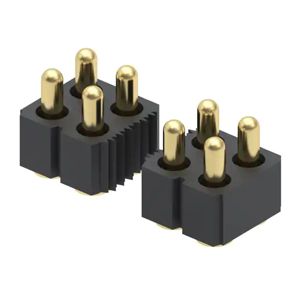

813-22-072-30-003101
CONN SPRING PISTON 72POS SMD

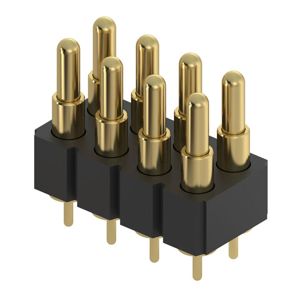

818-22-008-10-003101
CONN SPRING PISTON 8POS PCB

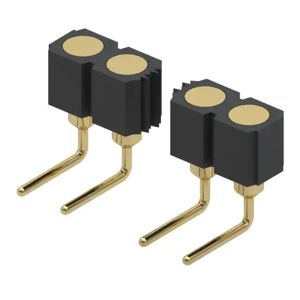

399-10-118-10-008000
CONN SPRING TARGET 18POS R/A PCB
811-S1-058-10-014101
CONN SPRING PISTON 58POS PCB
813-SS-010-30-024101
CONN SPRING PISTON 10POS SMD

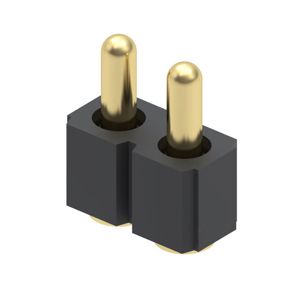

811-22-002-30-004101
CONN SPRING PISTON 2POS SMD

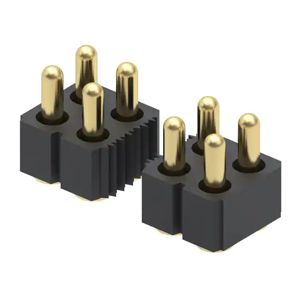

813-22-012-30-004101
CONN SPRING PISTON 12POS SMD

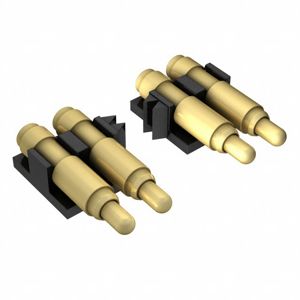

8PM-11-0005-02-131191
CONN SPRING PISTON 5POS R/A SMD
811-S1-005-30-017101
CONN SPRING PISTON 5POS SMD

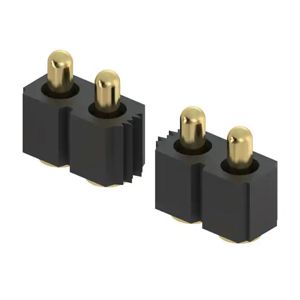

811-22-014-30-002101
CONN SPRING PISTON 14POS SMD

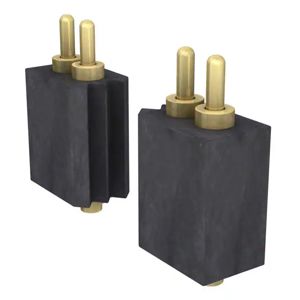

854-22-007-30-001101
CONN SPRING PISTON 7POS SMD

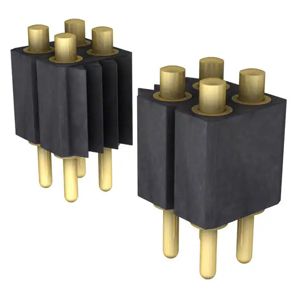

813-S1-030-10-016101
CONN SPRING PISTON 30POS PCB
