Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories
319-10-164-00-002000
CONN SPRING TARGET 64POS PCB

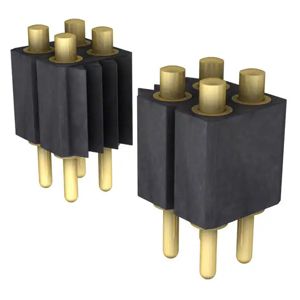

813-S1-046-10-017101
CONN SPRING PISTON 46POS PCB

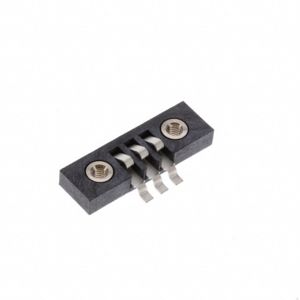

OPP-03-01-T-S-M-AB
CONN .100" SMD 3POS

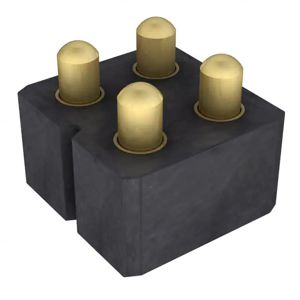

813-SS-004-30-007101
CONN SPRING PISTON 4POS SMD
813-SS-014-30-021101
CONN SPRING PISTON 14POS SMD
811-SS-006-30-001101
CONN SPRING PISTON 6POS SMD
813-SS-018-30-023101
CONN SPRING PISTON 18POS SMD

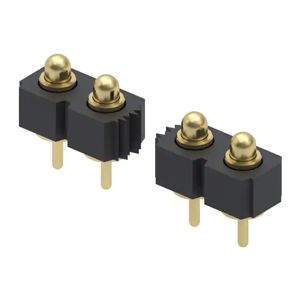

821-22-063-10-000101
CONN SPRING PISTON 63POS PCB

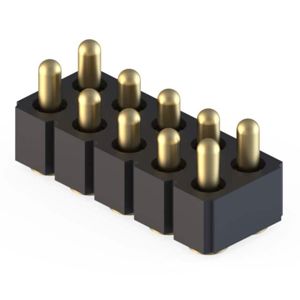

813-22-010-30-022101
FMLB SPRING-LOADED CONN, SMT DOU

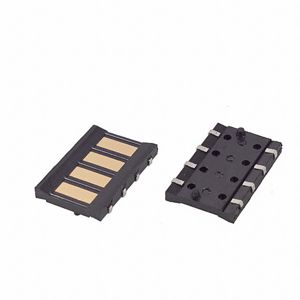

70ADJ-4-FL1G
CONN SPRING MOD FEMALE 4POS SMD
811-SS-005-30-008101
CONN SPRING PISTON 5POS SMD
811-S1-042-10-015101
CONN SPRING PISTON 42POS PCB

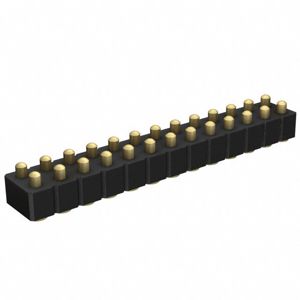

813-22-026-30-001101
CONN SPRING PISTON 26POS SMD

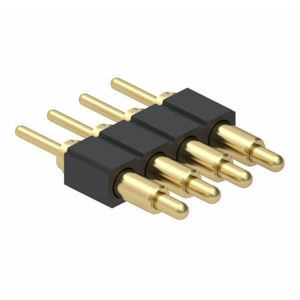

836-22-004-10-001101
CONN SPRING PISTON 4POS PCB

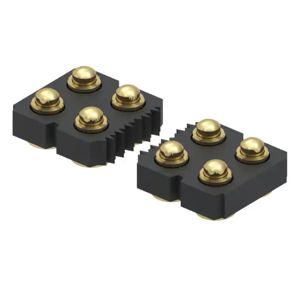

817-22-070-30-001101
CONN SPRING PISTON 70POS SMD
811-S1-060-10-015101
CONN SPRING PISTON 60POS PCB

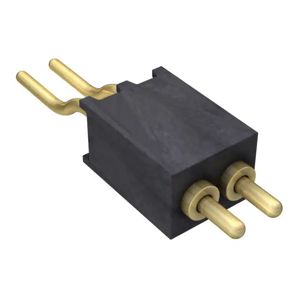

854-22-002-40-001101
CONN SPRING PISTON 2POS R/A SMD
811-S1-009-30-014101
CONN SPRING PISTON 9POS SMD
813-SS-012-30-025101
CONN SPRING PISTON 12POS SMD
811-22-033-30-002101
CONN SPRING PISTON 33POS SMD
