Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

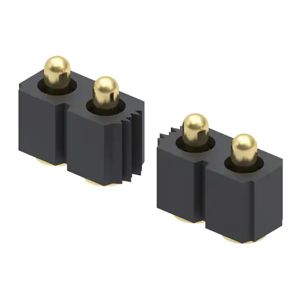

811-22-033-30-001101
CONN SPRING PISTON 33POS SMD

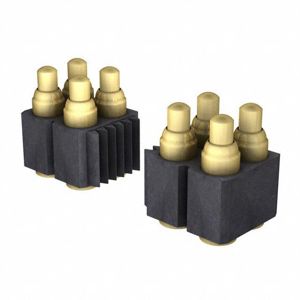

823-S1-012-30-014191
CONN SPRING PISTON 12POS SMD
811-SS-010-30-003101
CONN SPRING PISTON 10POS SMD

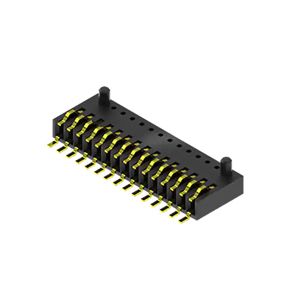

SEI-110-02-GF-S-AB-TR
CONN SPRING MOD 10POS SMD

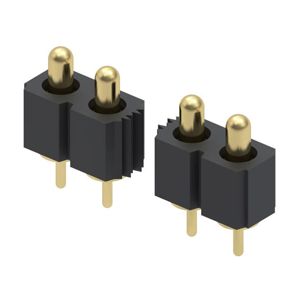

821-22-029-10-002101
CONN SPRING PISTON 29POS PCB
811-S1-034-10-017101
CONN SPRING PISTON 34POS PCB

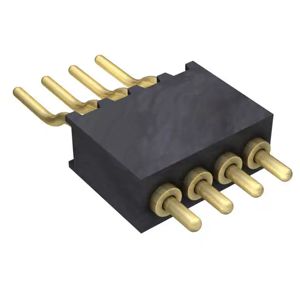

854-22-004-40-001101
CONN SPRING PISTON 4POS R/A SMD
821-22-005-10-002101
CONN SPRING PISTON 5POS PCB

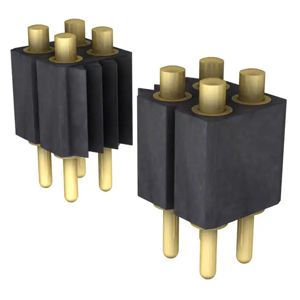

813-S1-018-10-017101
CONN SPRING PISTON 18POS PCB

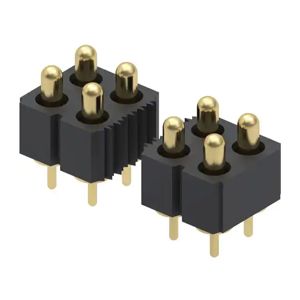

823-22-072-10-002101
CONN SPRING PISTON 72POS PCB

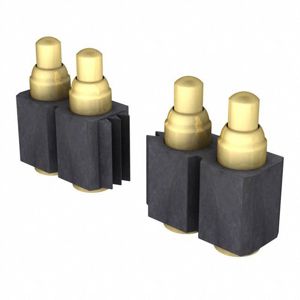

821-S1-010-30-013191
CONN SPRING PISTON 10POS SMD

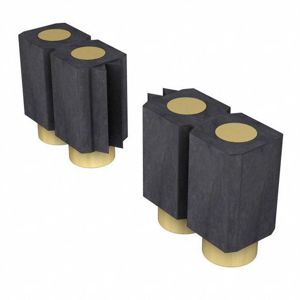

800-10-007-30-507191
CONN SPRING TARGET 7POS SMD
70AAJ-3-M0G
CONN SPRING MOD MALE 3POS SMD

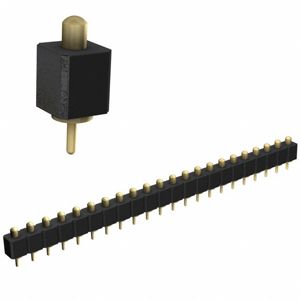

821-22-022-10-001101
CONN SPRING PISTON 22POS PCB

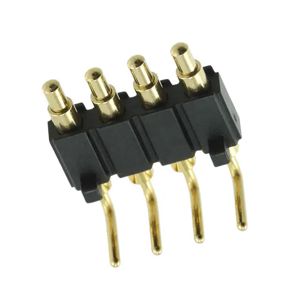

829-22-004-20-001101
CONN SPRING PISTON 4POS R/A PCB

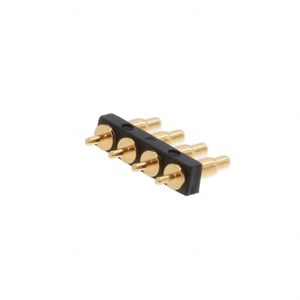

PH1-3B-04-MVP-4360
CONN SPRING PISTON 4POS PCB

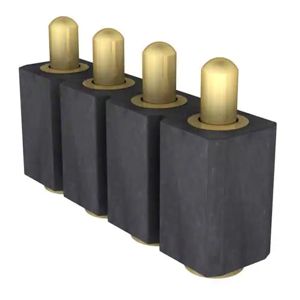

811-SS-004-30-680101-CLIP
CONN SPRING PISTON 4POS SMD, HIG

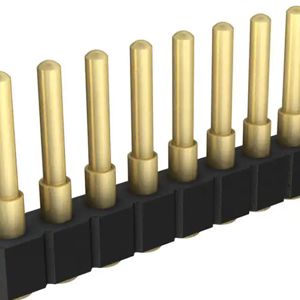

812-22-052-30-002101
CONN SPRING PISTON 52POS SMD
811-S1-035-10-016101
CONN SPRING PISTON 35POS PCB

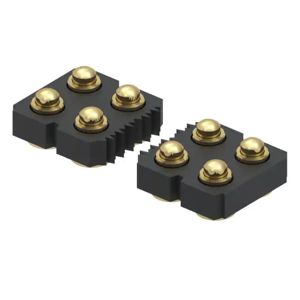

817-22-062-30-001101
CONN SPRING PISTON 62POS SMD
