Terminal Blocks - Wire to Board: Reliable Connectivity Solutions
Definition:
Terminal Blocks - Wire to Board are essential components in electrical and electronic systems, designed to securely connect wires to a printed circuit board (PCB). These blocks provide a modular, reusable interface for establishing reliable electrical connections, simplifying wiring processes, and ensuring efficient signal or power transmission. They are widely used in industrial control systems, automation, power distribution, and consumer electronics.
Types of Terminal Blocks - Wire to Board:
1. Barrier Terminal Blocks: Feature screw or clamp mechanisms to secure wires, ideal for high-vibration environments.
2. PCB-Mounted Terminal Blocks: Directly soldered onto PCBs, offering compact and space-saving solutions.
3. Spring-Clamp Terminal Blocks: Utilize spring-loaded mechanisms for quick, tool-free wire insertion.
4. Plug-in Terminal Blocks: Allow easy disconnection and reconfiguration, suitable for modular systems.
5. Feed-Through Terminal Blocks: Enable wire-to-wire connections while maintaining PCB connectivity.
Purchasing Recommendations:
- Current & Voltage Ratings: Ensure the terminal block matches your application s electrical requirements.
- Wire Gauge Compatibility: Verify the block supports the wire sizes you intend to use.
- Pitch Size: Select the appropriate spacing (e.g., 3.5mm, 5mm) to fit your PCB layout.
- Material & Durability: Opt for high-temperature-resistant plastics or flame-retardant materials for harsh environments.
- Certifications: Look for industry-standard approvals (UL, IEC, RoHS) to guarantee safety and compliance.
Terminal Blocks - Wire to Board streamline electrical assembly while enhancing system reliability. Choosing the right type ensures optimal performance and long-term durability for your projects.
Filter and sort
Categories

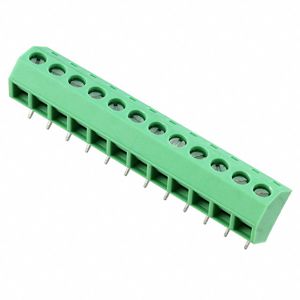

1877588
TERM BLK 12POS 55DEG 5.08MM PCB

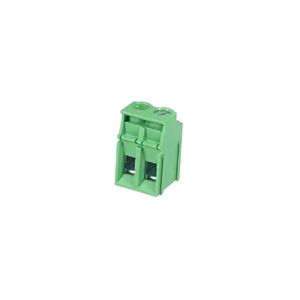

ESK508V-02P
TERM BLK 2POS 5.08MM SCRW PLG

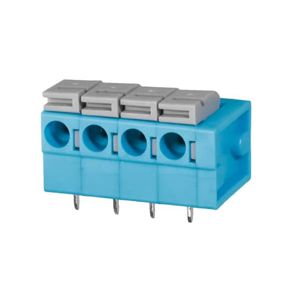

TBL004-508-04BE-2GY
TERMINAL BLOCK, SCREWLESS, 5.08,

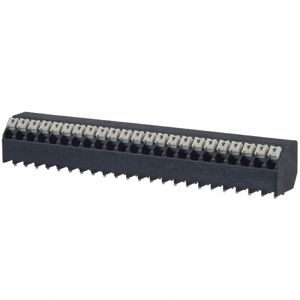

1885630000
TERM BLK 23POS 45DEG 3.81MM PCB

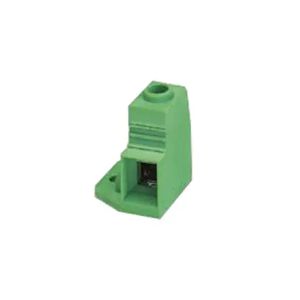

1932575
TERM BLOCK 1POS SIDE ENTRY PCB

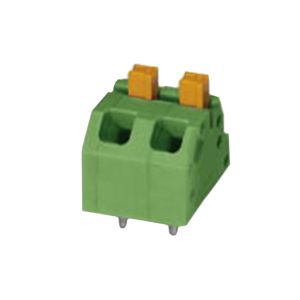

1862411
TERM BLOCK 2POS 45DEG 5MM PCB

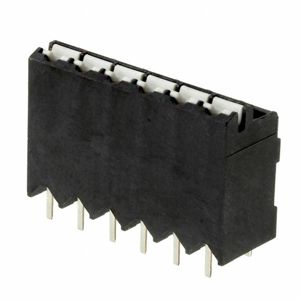

1823340
TERM BLK 6POS TOP ENT 3.81MM PCB

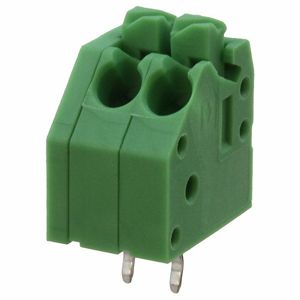

1984963
TERM BLOCK 2POS 45DEG 3.5MM PCB
691244700005
5.00 MM TERMINAL BLOCK, VERTICAL

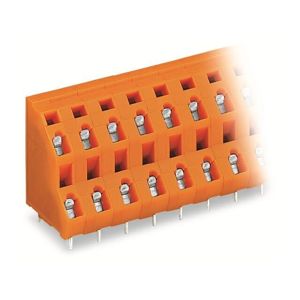

736-604
DOUBLE-DECK PCB TERMINAL BLOCK;

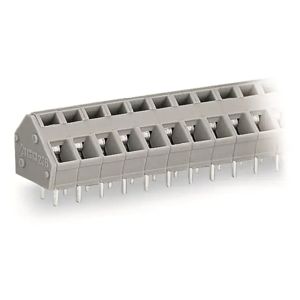

236-436
PCB TERMINAL BLOCK; 2.5 MM; PIN
736-606
DOUBLE-DECK PCB TERMINAL BLOCK;

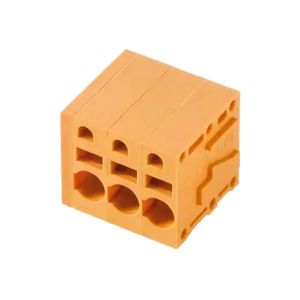

1332050000
LMFS 5.00/10/90 3.5SN OR BX
1426390000
LMFS 5.08/09/90 3.5SN BK BX

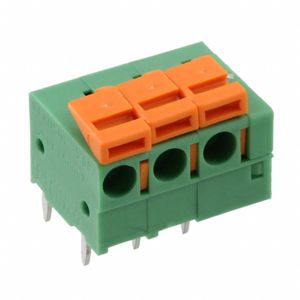

1789317
TERM BLK 3P SIDE ENT 2.54MM PCB

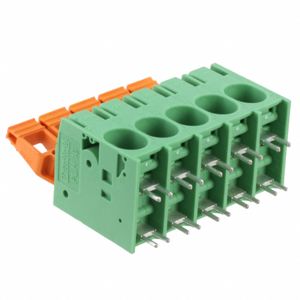

1770429
TERM BLK 5P SIDE ENTRY 10MM PCB

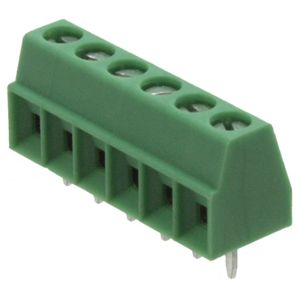

1751280
TERM BLK 6POS SIDE ENT 3.5MM PCB

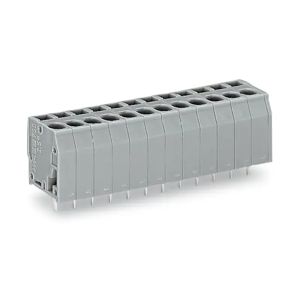

739-103
PCB TERMINAL BLOCK; 2.5 MM; PIN

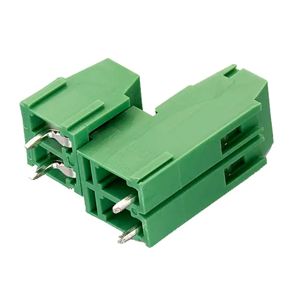

691232710004
5.00 MM TERMINAL BLOCK, DOUBLE L

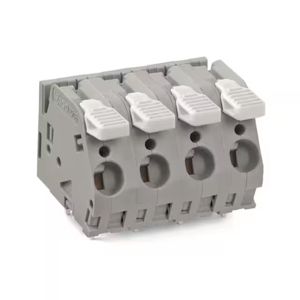

2706-256
PCB TERMINAL BLOCK; LEVER; 6 MM;
