Terminal Blocks - Wire to Board: Reliable Connectivity Solutions

Definition:
Terminal Blocks - Wire to Board are essential components in electrical and electronic systems, designed to securely connect wires to a printed circuit board (PCB). These blocks provide a modular, reusable interface for establishing reliable electrical connections, simplifying wiring processes, and ensuring efficient signal or power transmission. They are widely used in industrial control systems, automation, power distribution, and consumer electronics.

Types of Terminal Blocks - Wire to Board:
1. Barrier Terminal Blocks: Feature screw or clamp mechanisms to secure wires, ideal for high-vibration environments.
2. PCB-Mounted Terminal Blocks: Directly soldered onto PCBs, offering compact and space-saving solutions.

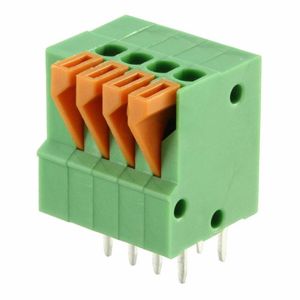

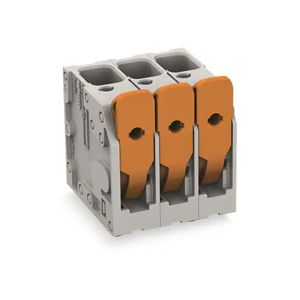

3. Spring-Clamp Terminal Blocks: Utilize spring-loaded mechanisms for quick, tool-free wire insertion.
4. Plug-in Terminal Blocks: Allow easy disconnection and reconfiguration, suitable for modular systems.
5. Feed-Through Terminal Blocks: Enable wire-to-wire connections while maintaining PCB connectivity.

Purchasing Recommendations:
- Current & Voltage Ratings: Ensure the terminal block matches your application s electrical requirements.
- Wire Gauge Compatibility: Verify the block supports the wire sizes you intend to use.
- Pitch Size: Select the appropriate spacing (e.g., 3.5mm, 5mm) to fit your PCB layout.
- Material & Durability: Opt for high-temperature-resistant plastics or flame-retardant materials for harsh environments.
- Certifications: Look for industry-standard approvals (UL, IEC, RoHS) to guarantee safety and compliance.

Terminal Blocks - Wire to Board streamline electrical assembly while enhancing system reliability. Choosing the right type ensures optimal performance and long-term durability for your projects.
