1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories

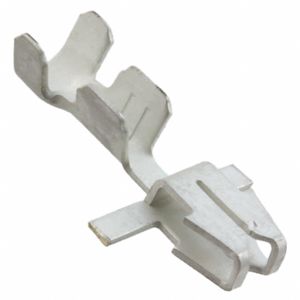

63856-1
CONN MAG TERM 25-27AWG CRIMP

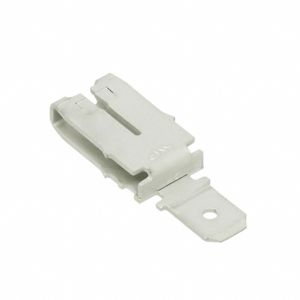

63643-1
CONN MAG TERM 17-19AWG QC 0.187

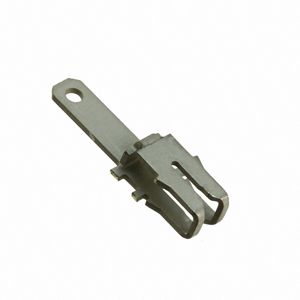

63145-1
CONN MAG TERM 17-19AWG TAB

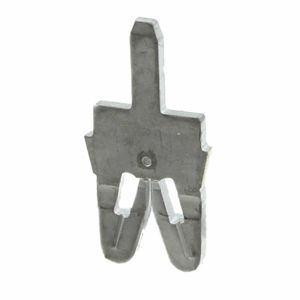

1601214-2
CONN MAG TERM 18-34AWG PCB

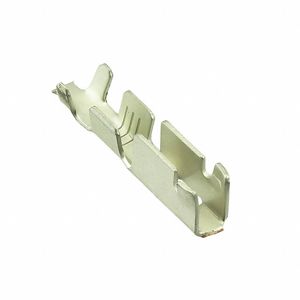

62131-6
CONN MAG TERM 16-18AWG CRIMP

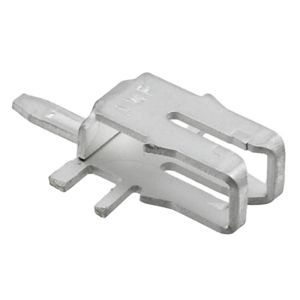

63661-1
CONN MAG TERM 17-19AWG PCB

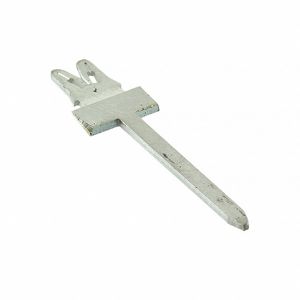

1601215-2
CONN MAG TERM 18-34AWG PCB

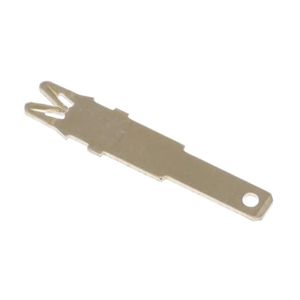

2-1601059-2
CONN MAG TERM 18-34AWG QC 0.110
2238061-1
MAG-MATE POST 34-33 CU / 33-31 A

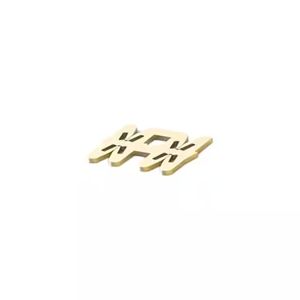

2-1601046-1
CONN MAG TERM 18-34AWG IDC

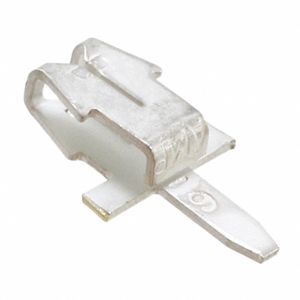

62430-1
CONN MAG TERM 28-30AWG PCB
63132-3
CONN MAG TERM 27-30AWG QC 0.250

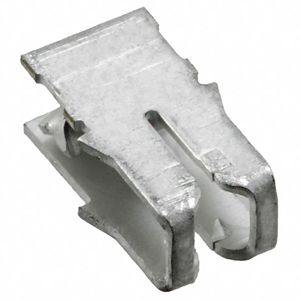

1742483-1
CONN MAG TERM 22-23.5AWG IDC

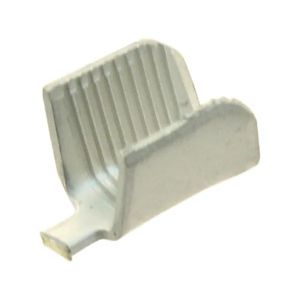

62309-2
CONN MAG TERM 5000-10000CMA CRMP

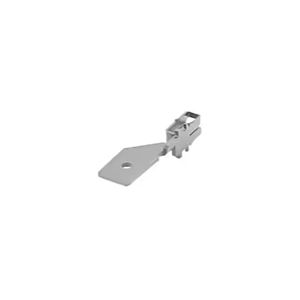

2232555-1
CONN MAG TERM 22-24AWG .250

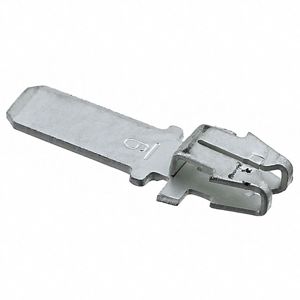

160809-2
CONN MAG TERM 25-27AWG QC 0.187

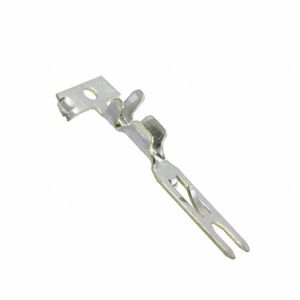

964290-1
CONN MAG TERM 18-20AWG POKE-IN

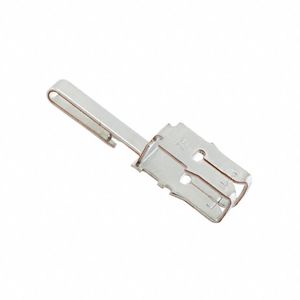

1394430-3
MAG MATE CONT. 5D

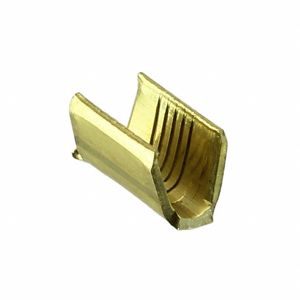

42192-1
CONN MAG TERM 600-3000CMA CRIMP

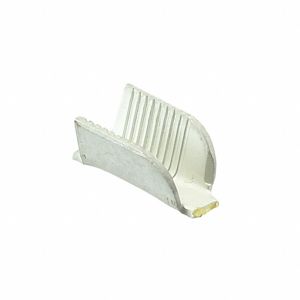

62305-2
CONN MAG TERM 600-3000CMA CRIMP
