Terminals - Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors: Category Overview
1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories

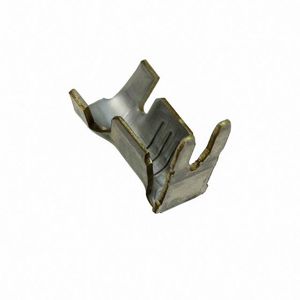

63218-1
CONN MAG TERM 14-18AWG IDC

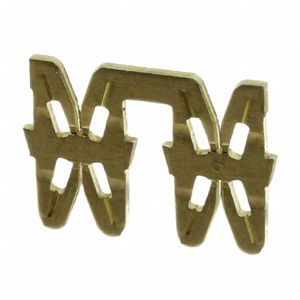

6-1601046-1
CONN MAG TERM 18-34AWG IDC

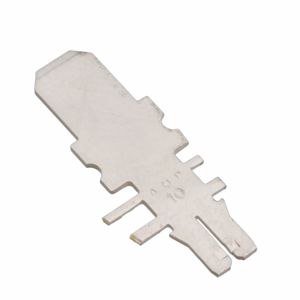

1217497-1
CONN MAG TERM 24-27AWG IDC
1740418-1
CONN MAG TERM 23-26AWG RCPT

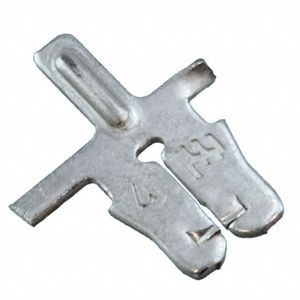

1534680-1
CONN MAG TERM 31-33AWG PCB
63278-1
CONN MAG TERM 17-19.5AWG PIN

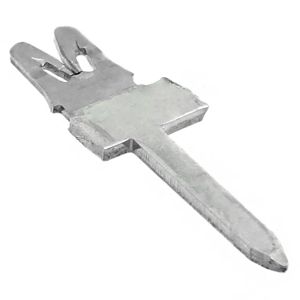

1601063-2
CONN MAG TERM 18-34AWG PCB
2-1601063-2
CONN MAG TERM 18-34AWG PCB

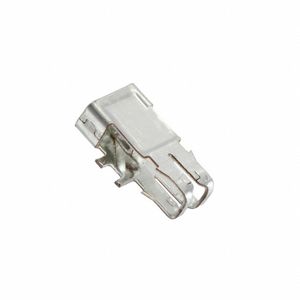

964110-1
CONN MAG TERM 20-23AWG IDC
62833-2
CONN MAG TERM 16.5-20AWG IDC

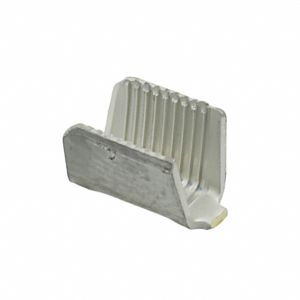

62308-2
CONN MAG TERM 3000-7000CMA CRIMP

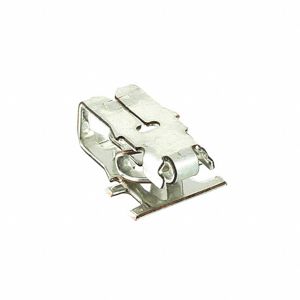

964338-2
CONN MAG TERM 26-30AWG IDC

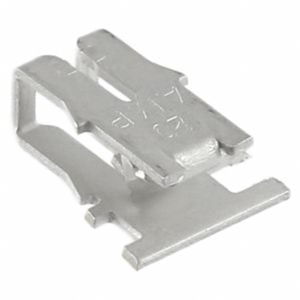

1217688-1
CONN MAG TERM 20-21.5AWG IDC

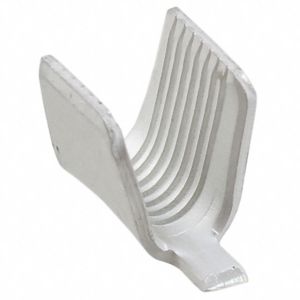

62002-2
CONN MAG TERM 7000-13000CMA CRMP

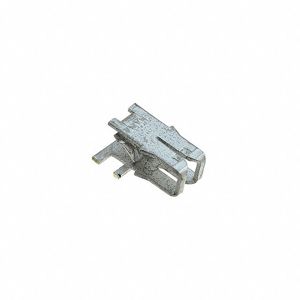

63789-1
CONN MAG TERM 23-27AWG IDC
63782-1
CONN MAG TERM 17-19AWG QC 0.187

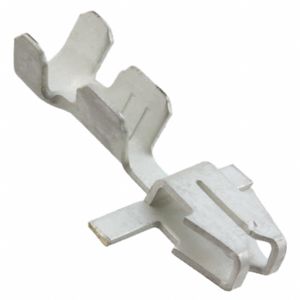

63856-2
CONN MAG TERM 25-27AWG CRIMP

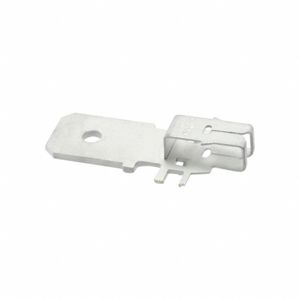

63309-2
CONN MAG TERM 31-33AWG QC 0.250

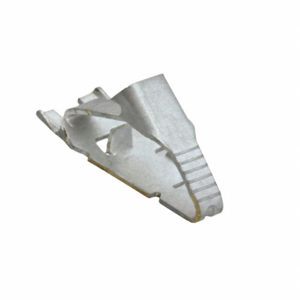

62781-3
CONN MAG TERM 18-22AWG POKE-IN

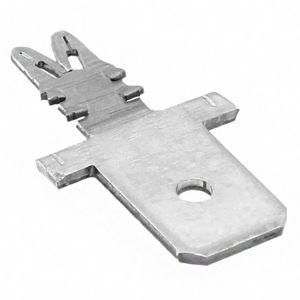

2-1601061-2
CONN MAG TERM 18-34AWG QC 0.250
