1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories

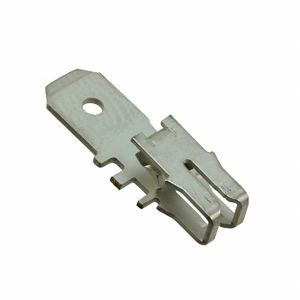

6-316300-7
CONN MAG TERM 16-17AWG TAB

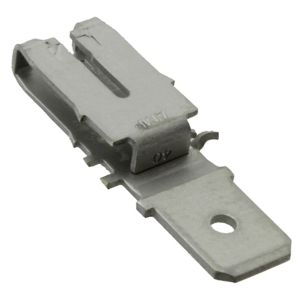

63459-2
CONN MAG TERM 15-16AWG QC 0.250

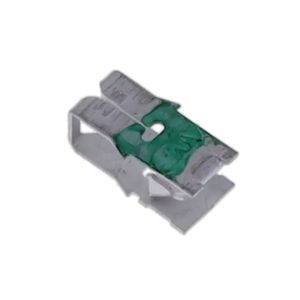

926850-2
CONN MAG TERM 31-33AWG IDC

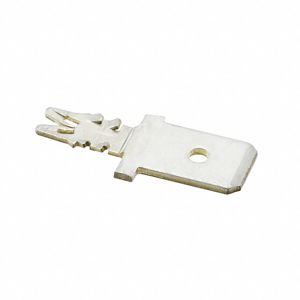

2-1601002-2
CONN MAG TERM 18-34AWG QC 0.250

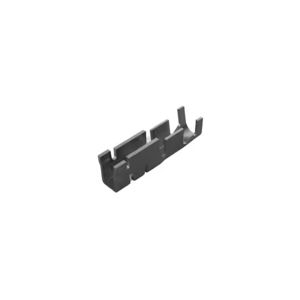

62243-3
CONN MAG TERM 10-14AWG CRIMP

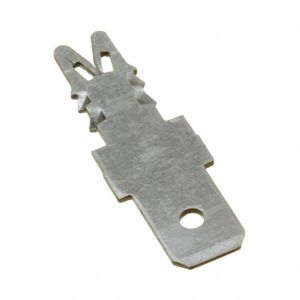

4-1601020-2
CONN MAG TERM 18-34AWG QC 0.187
63601-2
CONN MAG TERM 20-22AWG QC 0.250

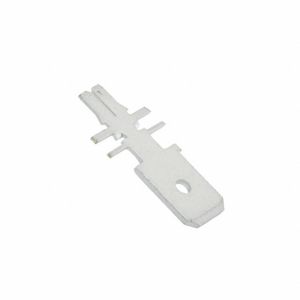

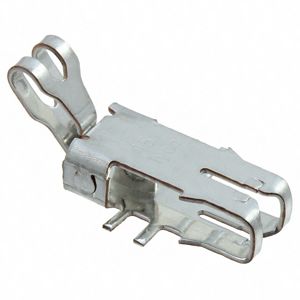

1418686-1
CONN MAG TERM 17-19AWG IDC

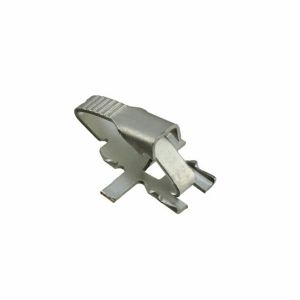

62781-2
CONN MAG TERM 18-22AWG POKE-IN

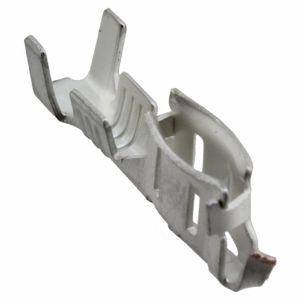

170063-2
CONN MAG TERM 16-20AWG CRIMP

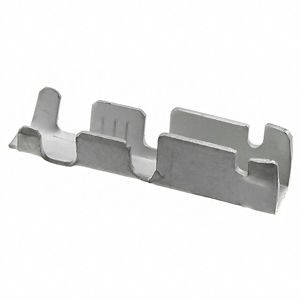

284633-1
CONN MAG TERM 16-18AWG CRIMP

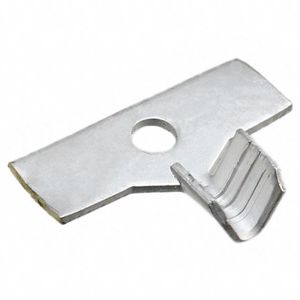

62194-2
CONN MAG TERM 400-1300CMA CRIMP

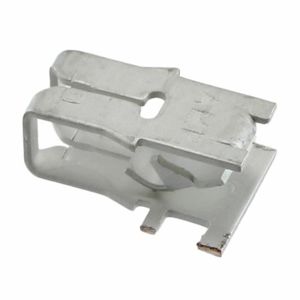

63590-2
CONN MAG TERM 27-30AWG IDC

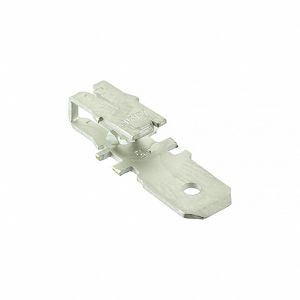

316300-5
CONN MAG TERM 26-28AWG TAB

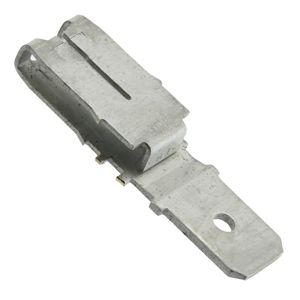

63495-1
CONN MAG TERM 20-22AWG QC 0.250

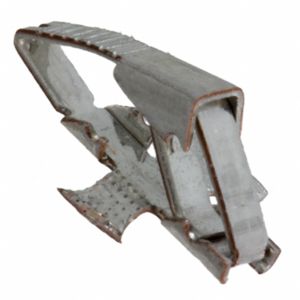

1718165-1
CONN MAG TERM 34.5-40AWG IDC

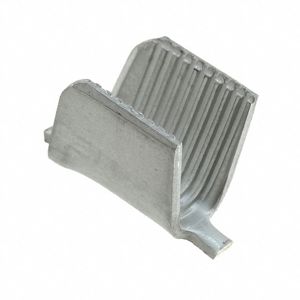

62311-2
CONN MAG TERM 10000-17000CMA

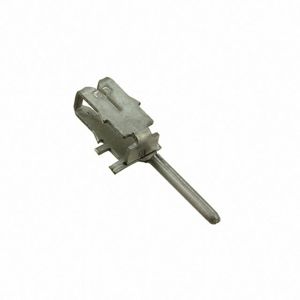

63570-1
CONN MAG TERM 23-27AWG PCB
62888-2
CONN MAG TERM 17-19AWG QC 0.187
63718-2
CONN MAG TERM 24-27AWG IDC
