Terminals - Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors: Category Overview
1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories

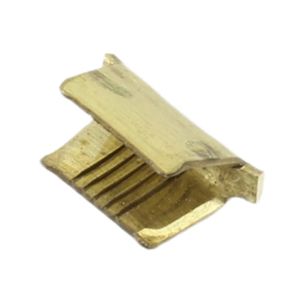

42776-1
CONN MAG TERM 1500-5000CMA CRIMP

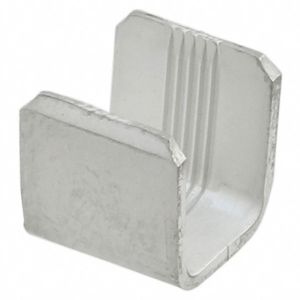

63562-1
CONN MAG TERM 10400-22900CMA

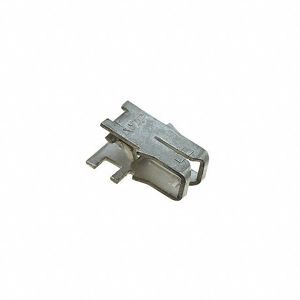

63754-1
CONN MAG TERM 23-27AWG IDC

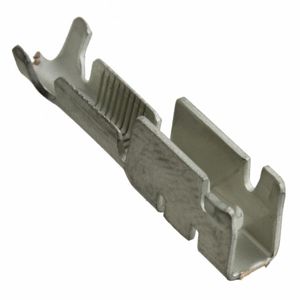

63454-1
CONN MAG TERM 1500-4200CMA CRIMP

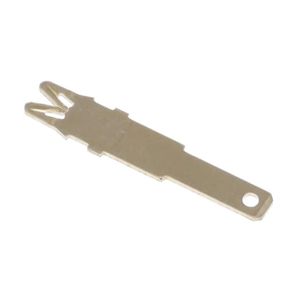

4-1601045-1
CONN MAG TERM 18-34AWG QC 0.110

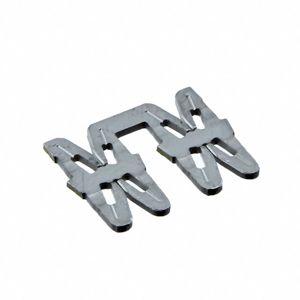

1601046-2
CONN MAG TERM 18-34AWG IDC

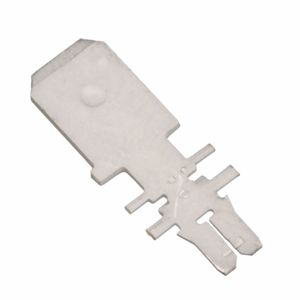

63743-2
CONN MAG TERM 28-30AWG IDC
1394759-1
CONN MAG TERM 20-22AWG IDC

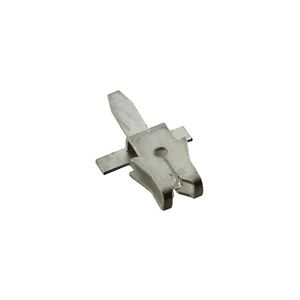

2238060-1
MAG-MATE POST 33-31 CU / 31-29 A
62833-4
CONN MAG TERM 16.5-20AWG IDC

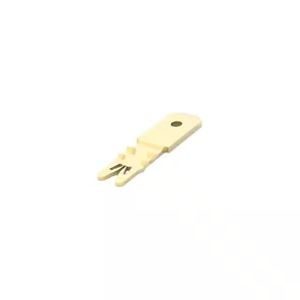

1601035-1
CONN MAG TERM 18-34AWG QC 0.187

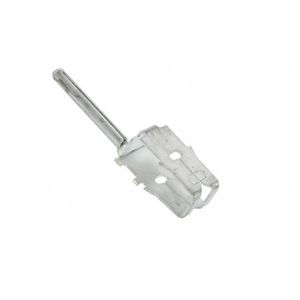

63879-1
CONN MAG TERM 28-31AWG PIN
63499-2
CONN MAG TERM 27-30AWG QC 0.250

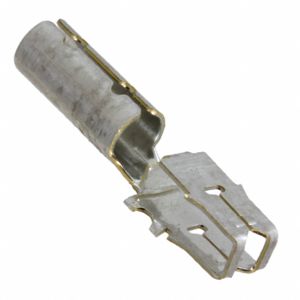

1740417-1
CONN MAG TERM 27-30AWG RCPT

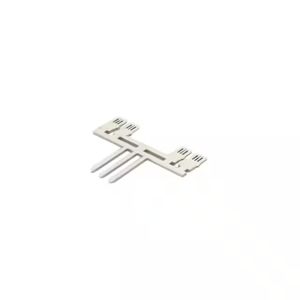

1601262-2
CONN MAG TERM 27.5AWG TAB

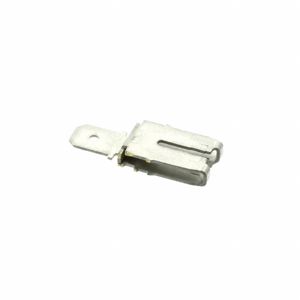

1217902-1
CONN MAG TERM 12-14.5AWG TAB

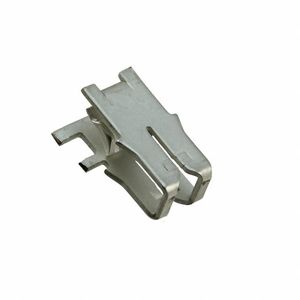

63658-5
CONN MAG TERM 22-25AWG IDC

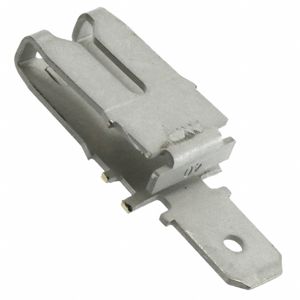

63996-1
CONN MAG TERM 15-16AWG QC 0.187

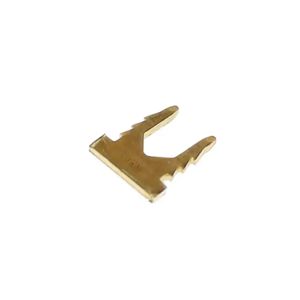

2-1601140-1
CONN MAG TERM 18-22AWG IDC

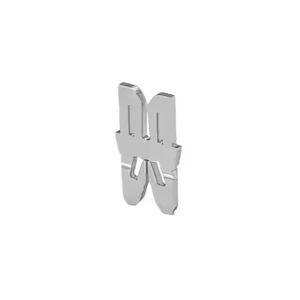

2348500-2
WIRE TO BLADE SMZ TERMINAL FOR A
