1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories

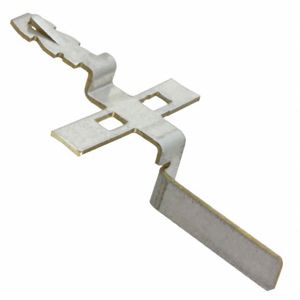

63878-1
CONN MAG TERM IDC

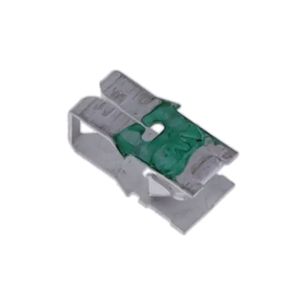

62527-1
CONN MAG TERM 31-33AWG IDC

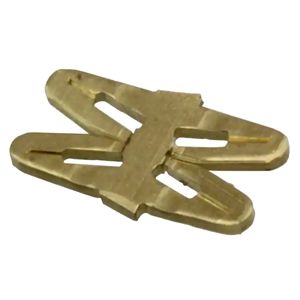

1601117-1
CONN MAG TERM 27-36AWG IDC

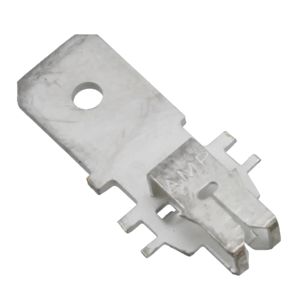

63499-1
CONN MAG TERM 27-30AWG QC 0.250

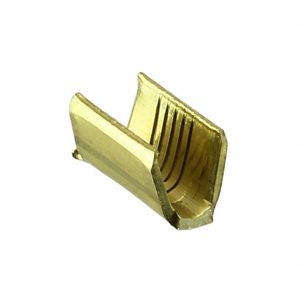

42076
CONN MAG TERM 600-3000CMA CRIMP
63667-1
CONN MAG TERM 16-17.5AWG QC .187

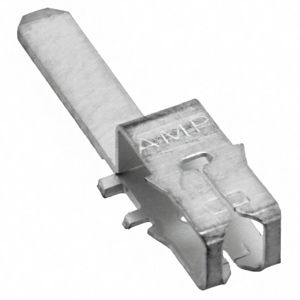

1217051-1
CONN MAG TERM 30AWG TAB

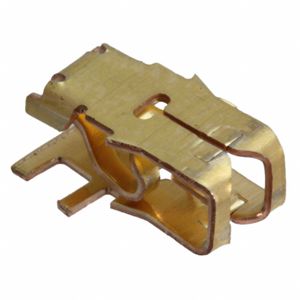

2-964337-7
CONN MAG TERM IDC

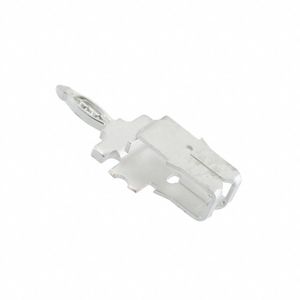

1247001-2
CONN MAG TERM 26-30AWG PRESS-FIT
62439-1
CONN MAG TERM 22-24AWG PCB

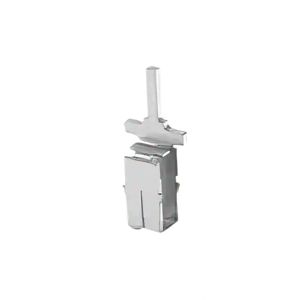

1247002-3
MAGMATE "300 SERIES" WITH MULTIS
2348504-2
STD RANGE WIRE TO .250 X .032 TA

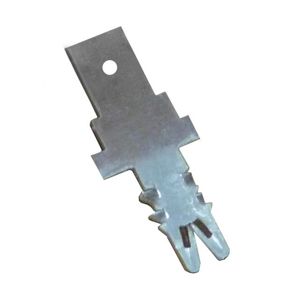

2-1601020-2
CONN MAG TERM 18-34AWG QC 0.187

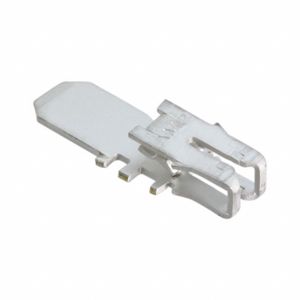

2-316300-9
CONN MAG TERM 17-18AWG TAB

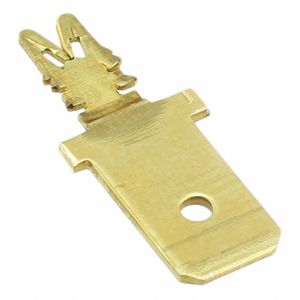

1601028-1
CONN MAG TERM 18-34AWG QC 0.25

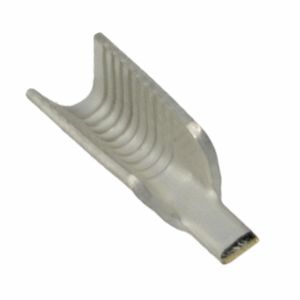

62303-2
CONN MAG TERM 400-1500CMA CRIMP

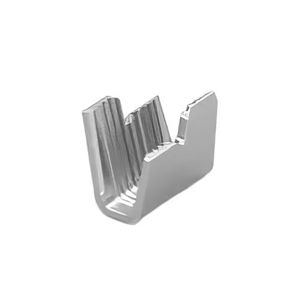

2238235-1
SPLICE, AMPLIVAR, THRU, 2D, 600-

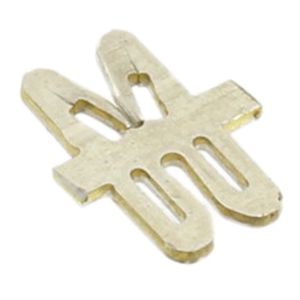

1601075-2
CONN MAG TERM 18-34AWG IDC
63773-1
CONN MAG TERM 28-31AWG TAB

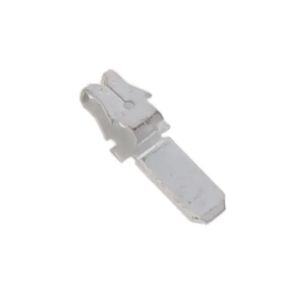

2238088-1
MAG-MATE TAB 33-31 CU / 31-29 AL
