1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories

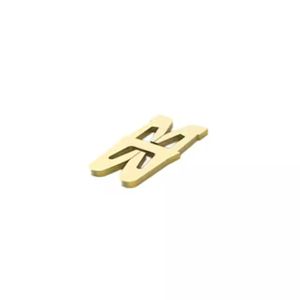

2-1601136-1
CONN MAG TERM 12-23AWG IDC

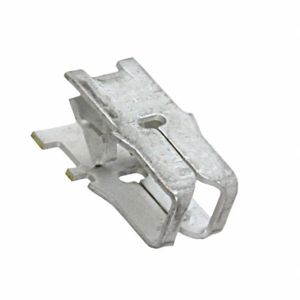

1742379-1
CONN MAG TERM 33-34AWG IDC

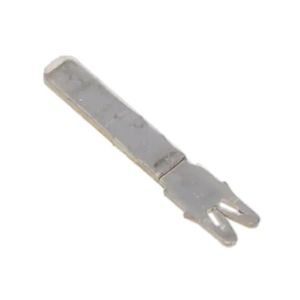

1601112-2
CONN MAG TERM 18-34AWG TAB

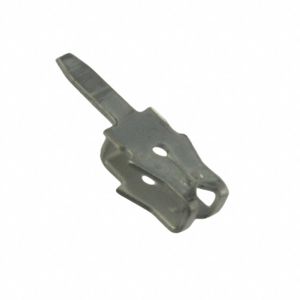

62934-1
CONN MAG TERM 31-33AWG PCB
62652-2
CONN MAG TERM 23-27AWG QC 0.250
1601005-2
CONN MAG TERM 18-34AWG QC 0.110
2-964338-7
MAG MATE CONTACT MK II
1742708-1
CONN MAG TERM 17-19AWG PCB
1601009-5
TAB,PCB,STD,SMZ
1742857-1
CONN MAG TERM 31-33AWG TAB
1601142-1
CONN MAG TERM 20-23AWG QC 0.187
1-964108-1
CONN MAG TERM 27-30AWG IDC
2-1601045-1
CONN MAG TERM 18-34AWG QC 0.110
2178453-1
CONN MAG TERM 16-18AWG CRIMP
1742490-1
CONN MAG TERM 17-19AWG QC 0.250
63807-1
CONN MAG TERM 28-31AWG TAB
2238145-2
MAGMATE 300 SERIES WITH MULTISPR
2-1987224-7
CONN MAG TERM 23-26AWG SLDR PINS
63441-1
CONN MAG TERM 32-34AWG QC 0.110
63236-1
CONN MAG TERM 28-31AWG CRIMP
