Definition:
Terminals - PC Pin Receptacles and Socket Connectors are specialized interconnect components designed to establish secure, removable electrical connections between printed circuit boards (PCBs), wires, or other electronic devices. These connectors feature precision-engineered sockets or receptacles that mate with corresponding pins, ensuring reliable signal transmission and power delivery in compact, high-density applications.
Product Types in This Category:
1. PCB Pin Receptacles Solder-mounted sockets for direct PCB integration, available in vertical/horizontal orientations.
2. Socket Connectors Modular housings with multiple contact cavities for multi-pin header connections.
3. Press-Fit Terminals Tool-free terminals for quick assembly in prototyping or high-volume production.
4. High-Current Sockets Reinforced designs for power delivery in industrial/automotive systems.
5. Surface-Mount (SMT) Receptacles Low-profile connectors for automated PCB assembly.
Purchasing Recommendations:
- Current Rating: Verify amperage requirements to prevent overheating (e.g., 3A+ for power applications).
- Pitch Size: Match pin spacing (e.g., 2.54mm, 1.27mm) to existing headers.
- Material: Gold-plated contacts enhance conductivity; high-temperature plastics suit harsh environments.
- Compliance: Prioritize UL/IEC-certified options for safety-critical uses.
- Supplier Capability: Opt for vendors offering custom pin counts/lengths for scalable solutions.
Ideal for prototyping, consumer electronics, and industrial controls, these connectors balance durability with design flexibility. Partner with trusted manufacturers to ensure compatibility and long-term reliability.
Filter and sort
Categories

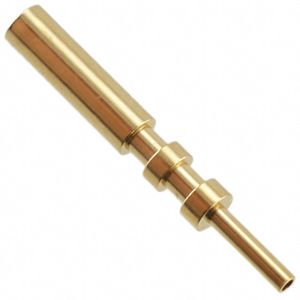

8067-0-19-15-13-27-10-0
CONN PIN RCPT .048-.064 SOLDER

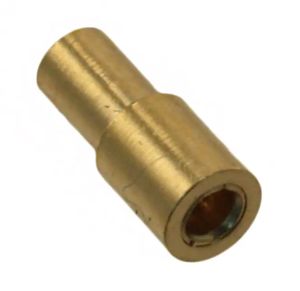

0285-0-15-15-16-27-10-0
CONN PIN RCPT .022-.034 SOLDER

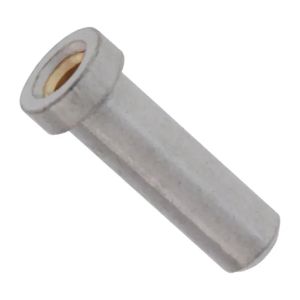

0292-0-15-01-06-27-10-0
CONN PIN RCPT .022-.032 SOLDER

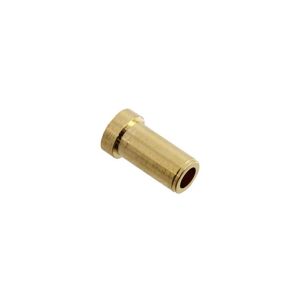

0356-0-15-15-34-27-10-0
CONN PIN RCPT .032-.046 SOLDER

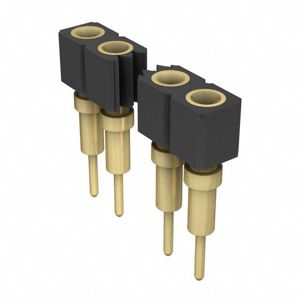

712-87-158-41-001101
CONN PIN RCPT .016-.022 SOLDER

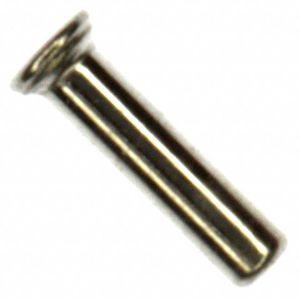

2-5332095-4
CONN PIN RCPT .013-.020 SOLDER

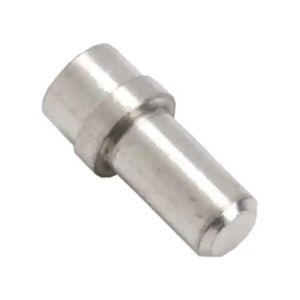

H3182-46
PCB SOCKET
H3169-05
CONN PIN RCPT .035-.041 KNURL
712-87-109-41-001101
CONN PIN RCPT .016-.022 SOLDER
4716-0-15-15-21-27-10-0
RECEPTACLE WITH NO TAIL; ACCEPTS

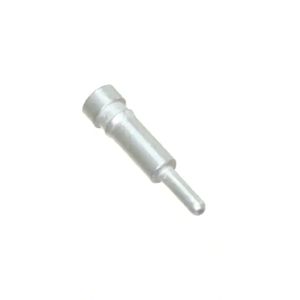

4401-0-15-80-18-27-04-0
RECEPTACLE WITH A STANDARD TAIL
712-87-125-41-001101
CONN PIN RCPT .016-.022 SOLDER

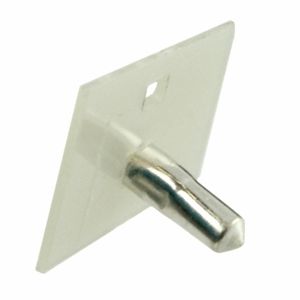

1-5645956-1
CONN PIN RCPT .014-.026 SOLDER

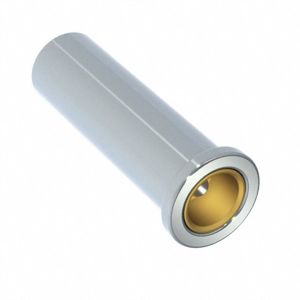

0339-0-15-01-15-27-10-0
CONN PIN RCPT
5834-0-15-01-23-01-10-0
CONN RECEPT PIN .045-.065" .290"

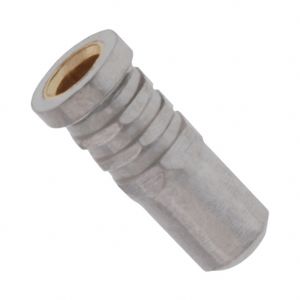

0328-0-15-15-34-27-10-0
CONN PIN RCPT .032-.046 HEX
5834-0-15-80-23-14-10-0
CONN PIN RCPT

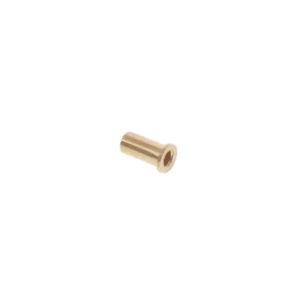

3305-1-15-80-47-27-10-0
.130" LONG RECEPTACLE; ACCEPTS .

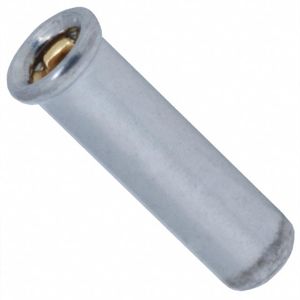

5050865-3
CONN PIN RCPT .034-.041 SOLDER

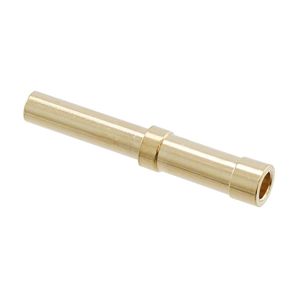

4040-0-19-15-07-27-10-0
CONN PIN RCPT .065-.082 SOLDER
