Definition:
Terminals - PC Pin Receptacles and Socket Connectors are specialized interconnect components designed to establish secure, removable electrical connections between printed circuit boards (PCBs), wires, or other electronic devices. These connectors feature precision-engineered sockets or receptacles that mate with corresponding pins, ensuring reliable signal transmission and power delivery in compact, high-density applications.
Product Types in This Category:
1. PCB Pin Receptacles Solder-mounted sockets for direct PCB integration, available in vertical/horizontal orientations.
2. Socket Connectors Modular housings with multiple contact cavities for multi-pin header connections.
3. Press-Fit Terminals Tool-free terminals for quick assembly in prototyping or high-volume production.
4. High-Current Sockets Reinforced designs for power delivery in industrial/automotive systems.
5. Surface-Mount (SMT) Receptacles Low-profile connectors for automated PCB assembly.
Purchasing Recommendations:
- Current Rating: Verify amperage requirements to prevent overheating (e.g., 3A+ for power applications).
- Pitch Size: Match pin spacing (e.g., 2.54mm, 1.27mm) to existing headers.
- Material: Gold-plated contacts enhance conductivity; high-temperature plastics suit harsh environments.
- Compliance: Prioritize UL/IEC-certified options for safety-critical uses.
- Supplier Capability: Opt for vendors offering custom pin counts/lengths for scalable solutions.
Ideal for prototyping, consumer electronics, and industrial controls, these connectors balance durability with design flexibility. Partner with trusted manufacturers to ensure compatibility and long-term reliability.
Filter and sort
Categories

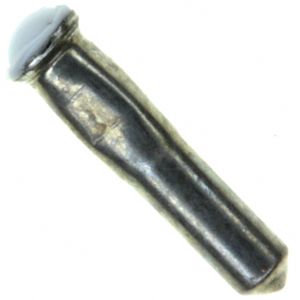

1-645986-1
CONN PIN RCPT .028-.033 SOLDER

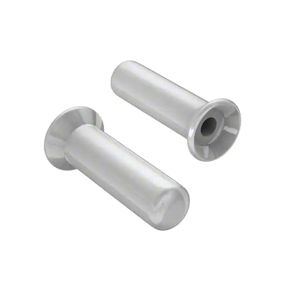

6-5330808-5
CONN PIN RCPT .013-.020 SOLDER

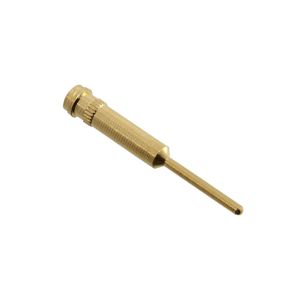

1305-0-15-15-47-27-04-0
CONN PIN RCPT .025-.037 KNURL
712-87-122-41-001101
CONN PIN RCPT .016-.022 SOLDER
712-87-138-41-001101
CONN PIN RCPT .016-.022 SOLDER

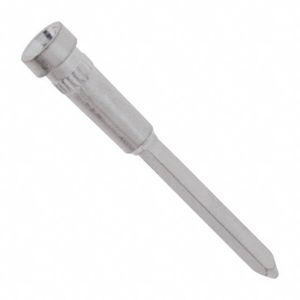

0040-1-17-01-30-27-02-0
CONN PIN RCPT .015-.025 PRESSFIT

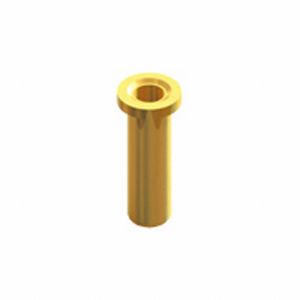

1411-2
CONN PIN RCPT .015-.021 SOLDER
0316-0-15-01-34-27-10-0
CONN PIN RCPT .032-.046 SOLDER

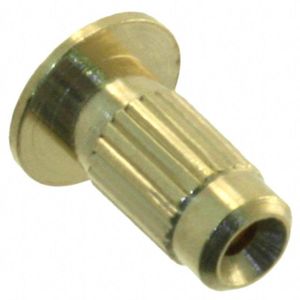

9019-0-19-15-06-27-10-0
CONN PIN RCPT .022-.032 PRESSFIT

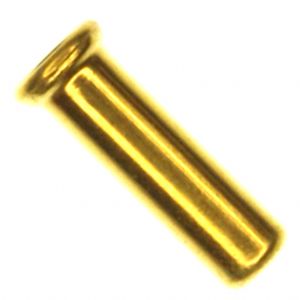

50462-6
CONN PIN RCPT .014-.026 SOLDER

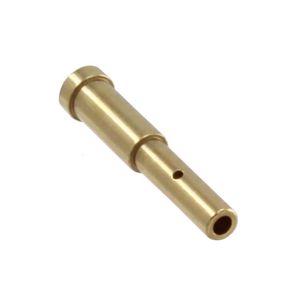

4130-0-33-15-34-27-10-0
CONN PIN RCPT .032-.046 CRIMP

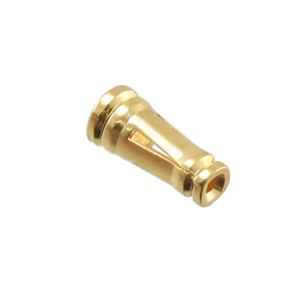

322-HCS5P2-320
CONN PIN RCPT .016-.021 SOLDER

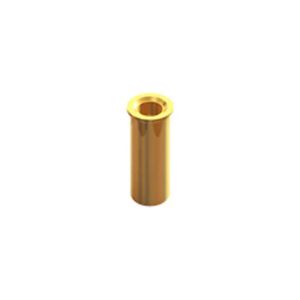

1418
CONN PIN RCPT .040-.050 SOLDER
5834-0-15-80-23-80-10-0
CONN PIN RCPT

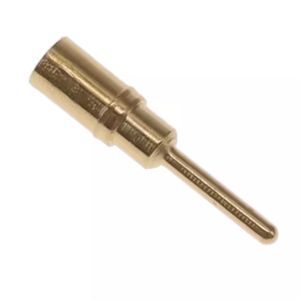

6275-0-15-15-15-27-04-0
RECEPTACLE WITH A STANDARD TAIL

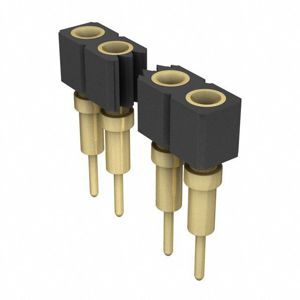

712-83-122-41-001101
CONN PIN RCPT .016-.022 SOLDER

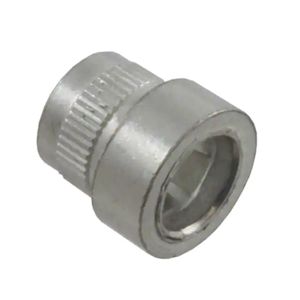

0388-0-15-80-08-80-10-0
CONN PIN RCPT .084-.102 PRESSFIT

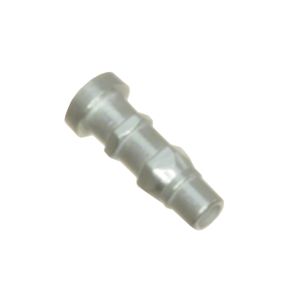

0560-0-15-80-11-84-10-0
CONN PIN RCPT

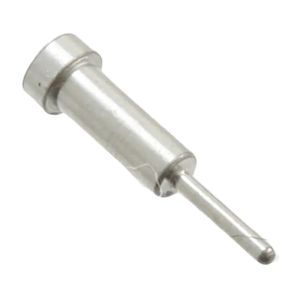

0255-0-15-80-30-84-04-0
CONN PIN RCPT .015-.025 SOLDER

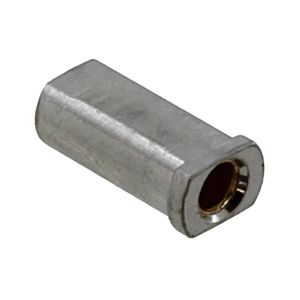

6628-0-18-80-18-80-10-0
CONN PIN RCPT
