Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories
76-IFD22-110
PVC INS FEMALE DISCONNECT
76-HIMD22C
HEAT SHRINK INS MALE DISC 100 BA
280095-2
CONN QC RCPT 18-22AWG 0.250
7819
CONN QC TAB 0.250 SOLDER
41969-2
CONN QC RCPT 18-22AWG 0.250
0190190030
CONN QC RCPT 14-16AWG 0.187
1234
CONN QC TAB 0.187
9-520183-2
CONN QC RCPT 18-22AWG 0.250
140598
CONN QC TAB 0.250
63873-1
CONN QC RCPT/TAB 18-22AWG 0.187

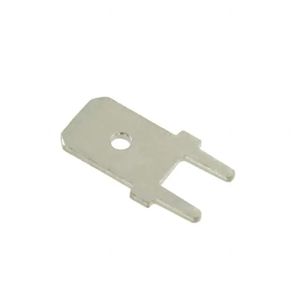

1-726386-2
CONN QC TAB 0.250 SOLDER

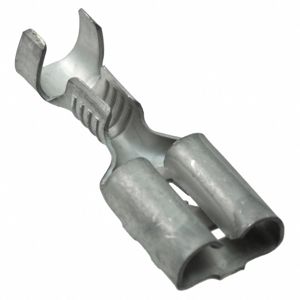

141013-2
CONN QC RCPT 0.250 CRIMP
170030-1
CONN QC TAB 14-20AWG 0.250 CRIMP
5-160432-4
CONN QC RCPT 15.5-20AWG 0.250

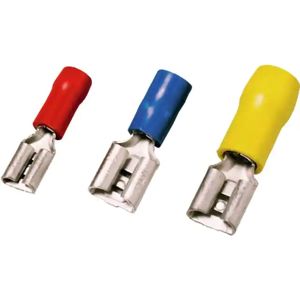

9200570000
CONN QC RCPT 0.250 CRIMP

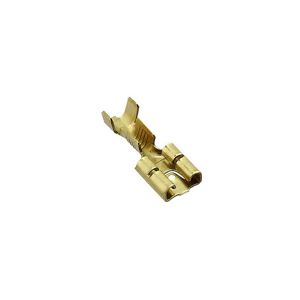

63537-1
CONN QC RCPT 14-18AWG 0.250

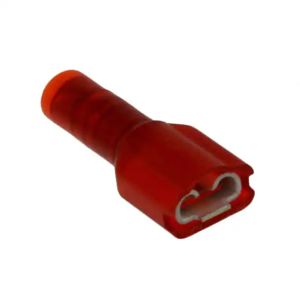

0190020010
CONN QC RCPT 18-22AWG 0.187

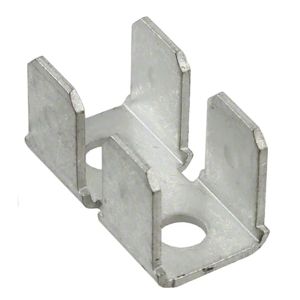

41481
CONN QC TAB 0.250

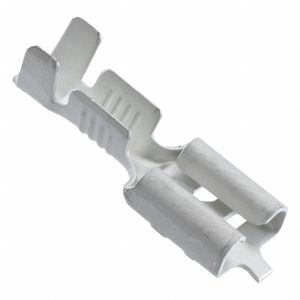

160917-4
CONN QC RCPT 13.5-17AWG 0.250

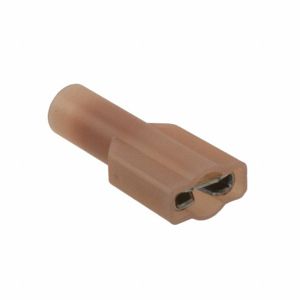

FDI18-250Q
CONN QC RCPT 18-22AWG 0.250
