Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories

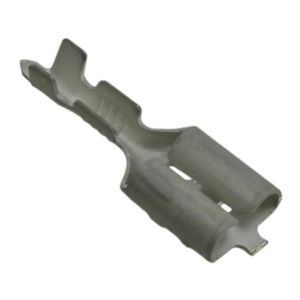

160860-2
CONN QC RCPT 17-20AWG 0.250
62418-2
CONN QC RCPT 16-22AWG 0.250

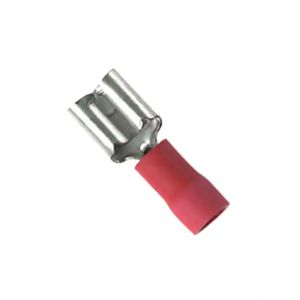

DVF18-188-MY
CONN QC RCPT 18-22AWG 0.187

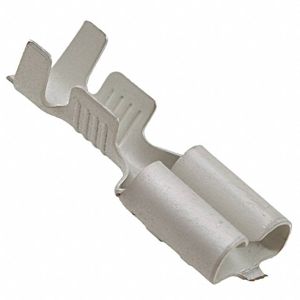

6-160448-6
CONN QC RCPT 13.5-17AWG 0.250

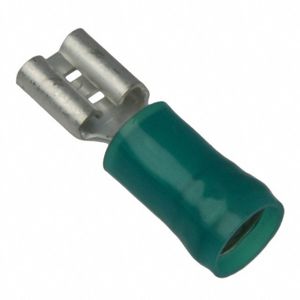

8-42844-1
CONN QC RCPT 12-14AWG 0.250

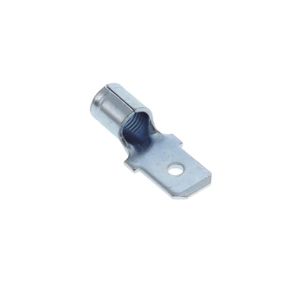

0190220015
CONN QC TAB 10-12AWG 0.250 CRIMP

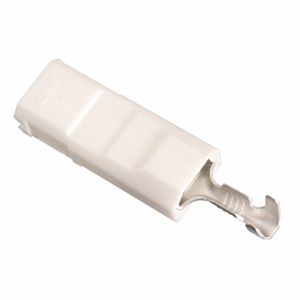

521368-2
CONN QC RCPT 18-22AWG 0.250

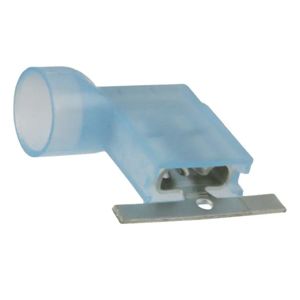

3-521013-2
CONN QC RCPT 14-16AWG 0.250
76-FD22L
NON INS FEM DISCON 22-18G 50 BAG

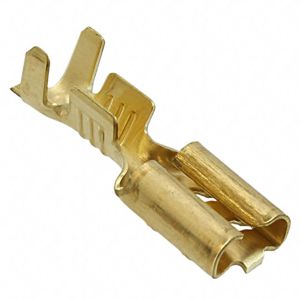

6-160430-6
CONN QC RCPT 15.5-20AWG 0.187

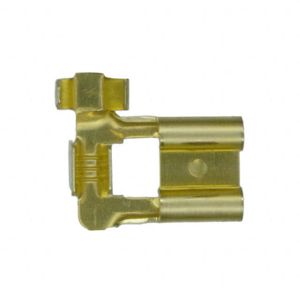

62813-1
CONN QC RCPT 18-22AWG 0.250

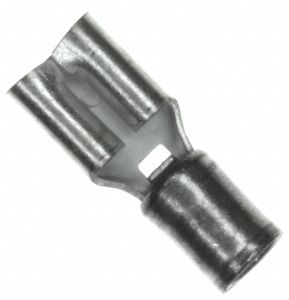

D14-187-C
CONN QC RCPT 14-16AWG 0.187
19003-0044
INSULKRIMP QUICK DISCONNECT, FEM

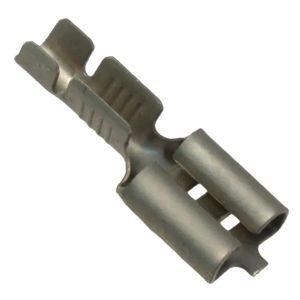

63688-1
CONN QC RCPT 14-18AWG 0.250

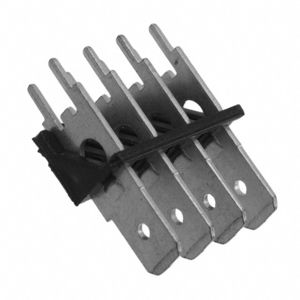

7814
CONN QC TAB 0.250 SOLDER

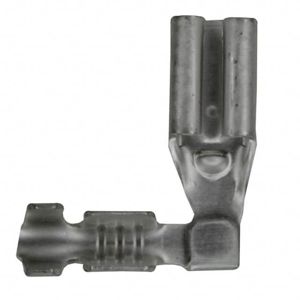

61070-1
CONN QC RCPT 18-22AWG 0.110

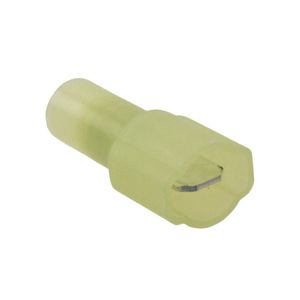

MNU10-250DMIK
CONN QC TAB 10-12AWG 0.250 CRIMP

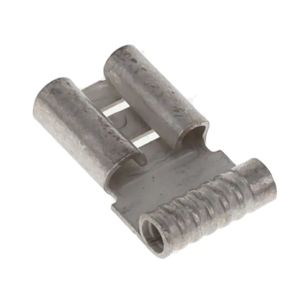

0190080007
CONN QC RCPT 18-22AWG 0.250

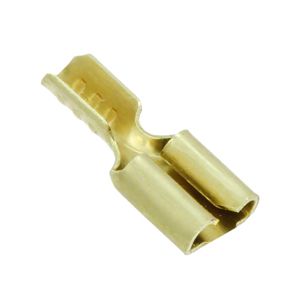

61818-1
CONN QC RCPT 22-26AWG 0.110
6-160448-0
CONN QC RCPT 13.5-17AWG 0.250
