Terminals - Quick Connects, Quick Disconnect Connectors
Terminals - Quick Connects, Quick Disconnect Connectors
Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories

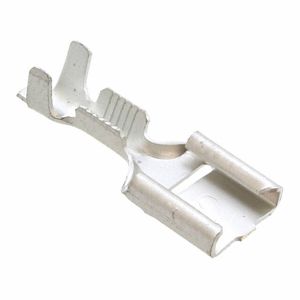

60384-2
CONN QC RCPT 16-20AWG 0.250

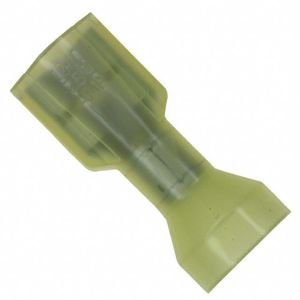

4-520447-2
CONN QC RCPT 10-12AWG 0.250

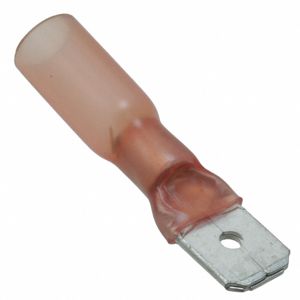

514711-000
CONN QC TAB 18-22AWG 0.250 CRIMP

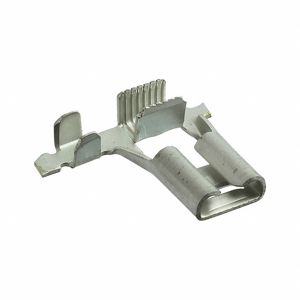

1217955-1
CONN QC RCPT 14-18AWG 0.187
42098-1
CONN QC TAB 14-18AWG 0.250 CRIMP

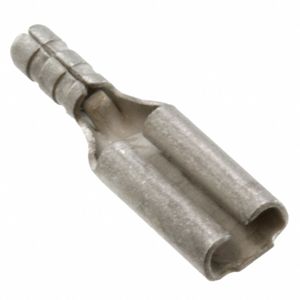

0190160075
CONN QC RCPT 24-26AWG 0.110

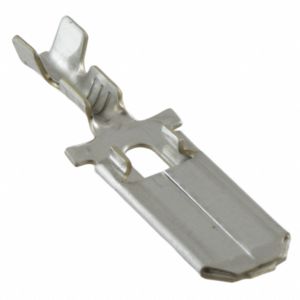

170349-2
CONN QC TAB 20-22AWG 0.250 CRIMP

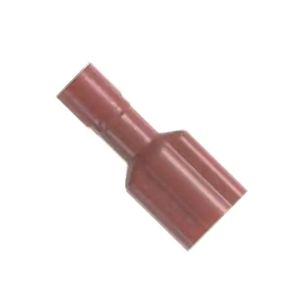

DPF18-205FIB-3K
CONN QC RCPT 18-22AWG 0.187

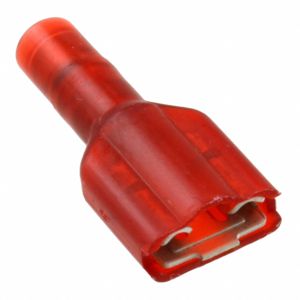

0192770002
CONN QC RCPT 18-22AWG 0.250

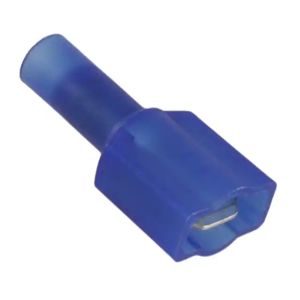

MNU14-250DMIK
CONN QC TAB 14-16AWG 0.250 CRIMP

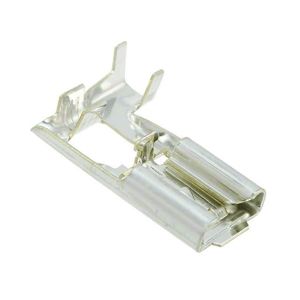

172795-1
CONN QC RCPT 14-20AWG 0.312

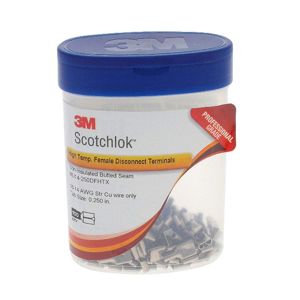

MU14-250DFHTX-BOTTLE
CONN QC RCPT 14-16AWG 0.25 100PC

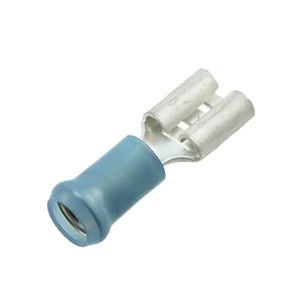

9-160313-2
CONN QC RCPT 13-17AWG 0.250

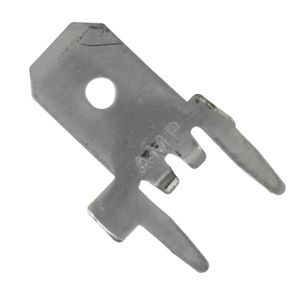

63823-1
CONN QC TAB 0.187 SOLDER

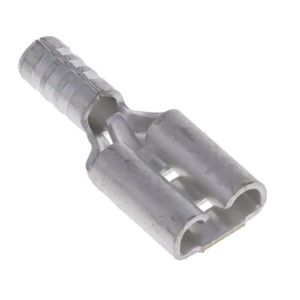

0190160005
CONN QC RCPT 18-22AWG 0.187

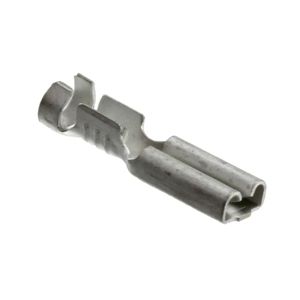

51-943.1
CABLE SHOE MULTI-PLUG HOUSING

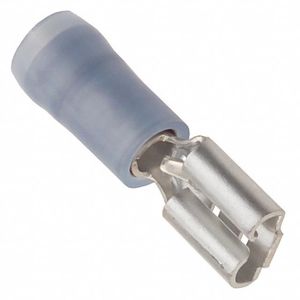

0190190027
CONN QC RCPT 14-16AWG 0.187

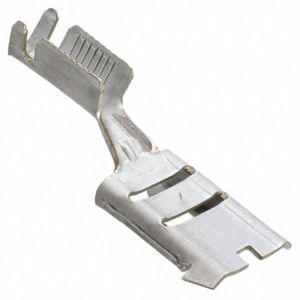

63480-1
CONN QC RCPT 22-27AWG 0.250

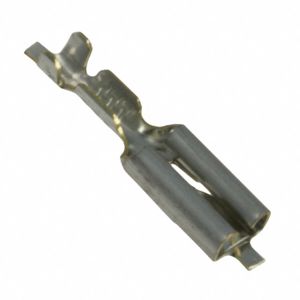

1217281-2
CONN QC RCPT 20-24AWG 0.110

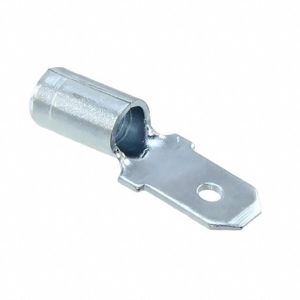

0190220006
CONN QC TAB 18-22AWG 0.187 CRIMP
