Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories

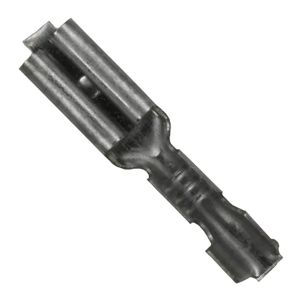

60577-1
CONN QC RCPT 18-22AWG 0.110

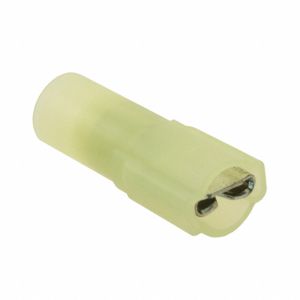

MNU10-250DFIX-BOTTLE
CONN QC RCPT 10-12AWG 0.250 50PC

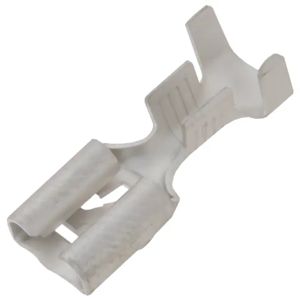

60249-2
CONN QC RCPT 12-16AWG 0.250

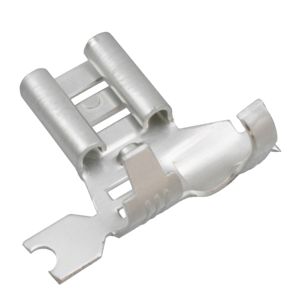

1217403-1
CONN QC RCPT 12-18AWG 0.250
640911-2
CONN QC RCPT 18-22AWG 0.205

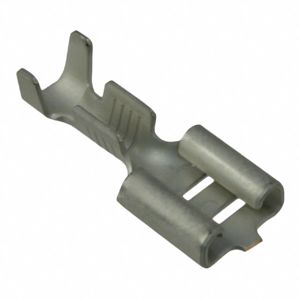

41774
CONN QC RCPT 14-18AWG 0.250
0190050003
CONN QC RCPT 18-22AWG 0.250

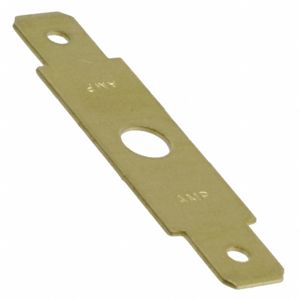

60921-1
CONN QC TAB 0.205

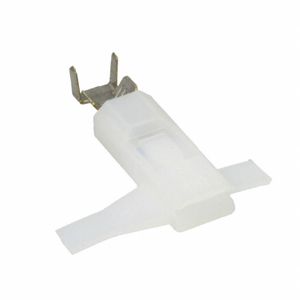

521947-2
CONN QC RCPT 16-18AWG 0.187

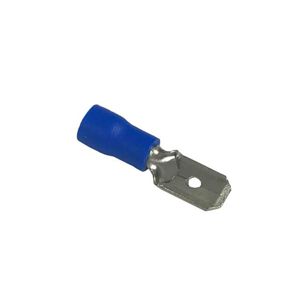

MDD2-250-10
QUICK CONNECT TERM MALE 10PCS

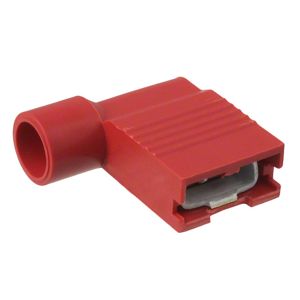

0190070064
CONN QC RCPT 18-22AWG 0.250

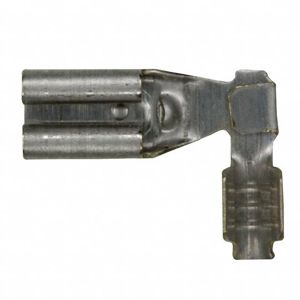

61481-1
CONN QC RCPT 18-22AWG 0.110

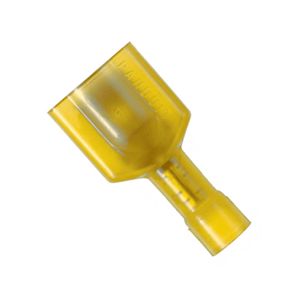

DNF10-250FIMB-Q
CONN QC TAB 10-12AWG 0.250 CRIMP

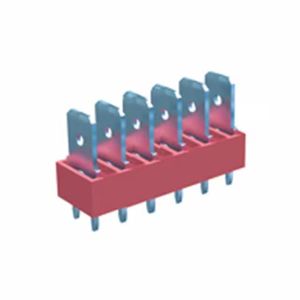

7821
CONN QC TAB 0.250 SOLDER

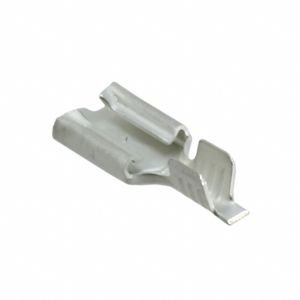

61969-1
CONN QC RCPT 16-20AWG 0.187

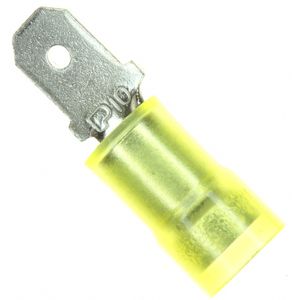

DNF10-250M-D
CONN QC TAB 10-12AWG 0.250 CRIMP

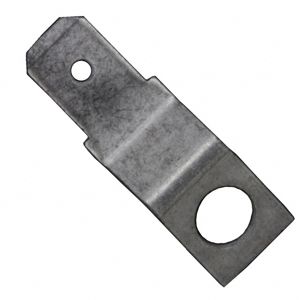

62162-1
CONN QC TAB 0.187

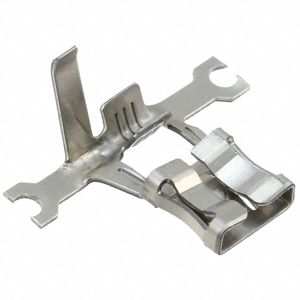

2178423-1
6.3 SRS FLAG F-SPRING LIF RECEPT

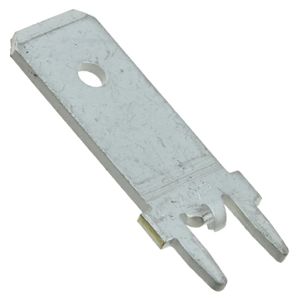

1217167-1
CONN QC TAB 0.250 SOLDER

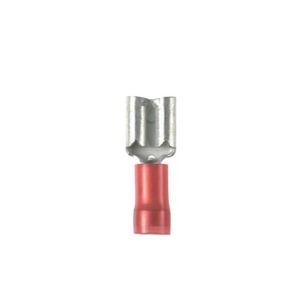

DNF18-205-C
CONN QC RCPT 18-22AWG 0.187
