Terminals - Ring Connectors
Terminals - Ring Connectors: Secure and Reliable Electrical Connections
Definition:
Terminals - Ring Connectors are a specialized type of electrical connector designed to create secure, permanent, or semi-permanent connections in wiring systems. These connectors feature a circular (ring-shaped) terminal that is crimped or soldered to a wire and then fastened to a stud or post using a screw or bolt. They are widely used in applications requiring robust, vibration-resistant connections.
Types of Ring Connectors:
1. Insulated vs. Non-Insulated: Insulated ring terminals have a plastic sleeve for added protection against short circuits, while non-insulated types are ideal for compact spaces.
2. Material Options: Available in copper, brass, or tin-plated variants for corrosion resistance and optimal conductivity.
3. Size Variations: Sizes range from small (e.g., 22-16 AWG) for electronics to large (e.g., 6-2 AWG) for automotive or industrial power systems.
4. Stud Hole Diameter: Standard sizes include 1/4", 5/16", and 3/8" to match different stud dimensions.
Purchasing Recommendations:
- Match Wire Gauge: Ensure the terminal s AWG rating corresponds to your wire size for a secure crimp.
- Environment Considerations: Choose insulated terminals for exposed or high-moisture environments and corrosion-resistant materials for harsh conditions.
- Tool Compatibility: Use a quality crimping tool to avoid loose connections, which can lead to overheating.
- Certifications: Look for UL, CSA, or RoHS compliance for safety and environmental standards.
Ideal for automotive, marine, industrial, and DIY projects, ring connectors provide a dependable solution for high-current and vibration-prone applications. Invest in the right type to ensure long-term electrical reliability.
Filter and sort
Categories

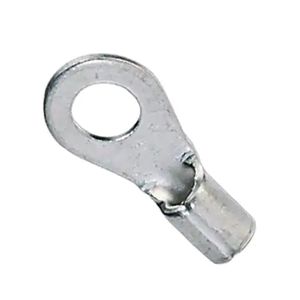

3240073
CONN RING CIRC 18-20AWG M5 CRIMP

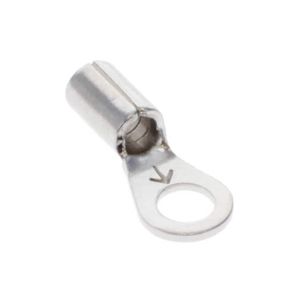

MU14-6RHT/SX-BOTTLE
CONN RING CIRC 14-16AWG #6 100PC

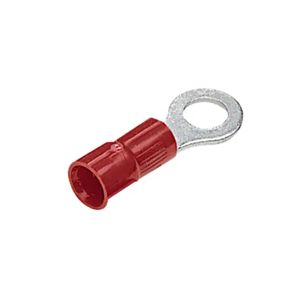

PV18-4RNB-3K
CONN RING CIRC 18-22AWG #4 CRIMP

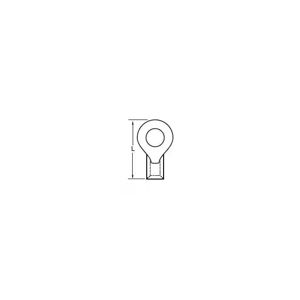

19193-0743
D35614TR TAPE REVERSE WND

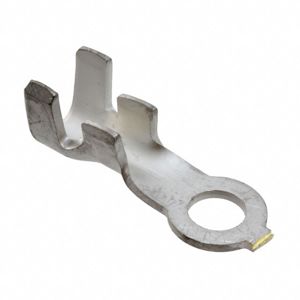

42864-2
CONN RING CIRC 10-12AWG #10

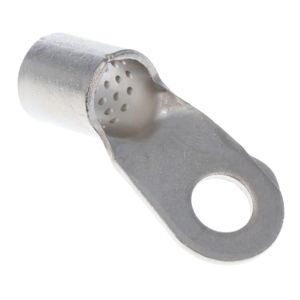

696711-1
CONN RING ANGLED 1/0AWG #3/8

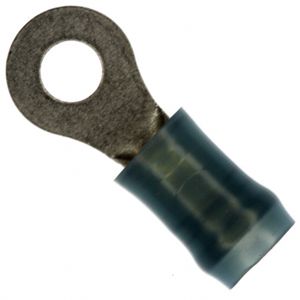

326882
CONN RING CIRC 14-16AWG #6 CRIMP

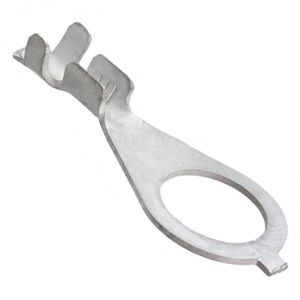

626279-4
CONN RING CIRC 15-20AWG CRIMP
322511-1
CONN RING ANGLED 14-16AWG #14

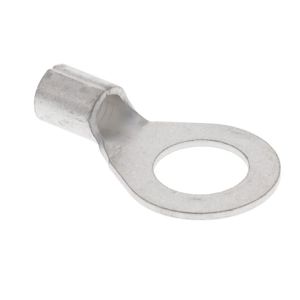

726343-3
CONN RING CIRC 8AWG CRIMP

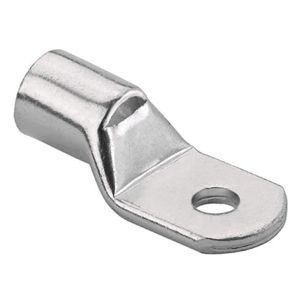

LCMA35-12-C
CONN TERM RECT RING 35MM #M12

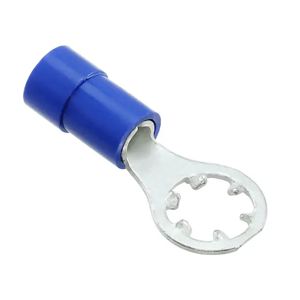

0190750023
CONN RING CIRC 14-16AWG #10

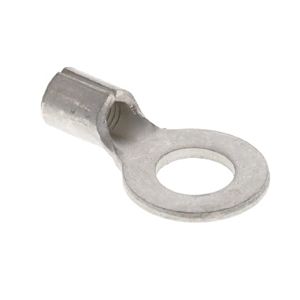

2-35775-1
CONN RING CIRC 14-16AWG #1/4

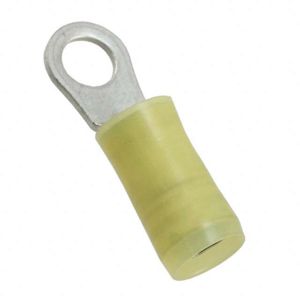

8-324918-2
CONN RING CIRC 10-12AWG #10

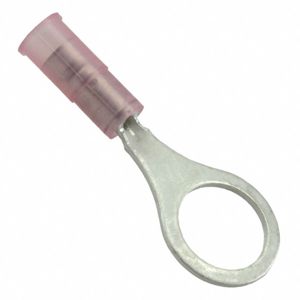

0190570022
CONN RING CIRC 18-22AWG #3/8

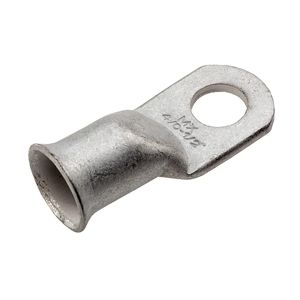

0192210251
CONN RING FLAT 4/0AWG #1/2 CRIMP

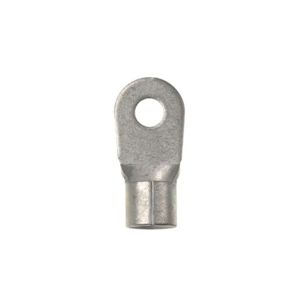

P4-10R-T
CONN RING CIRC 4AWG #10 CRIMP

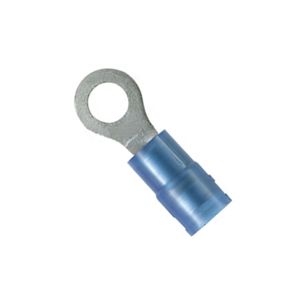

PNF14-14R-M
CONN RING CIRC 14-16AWG #1/4

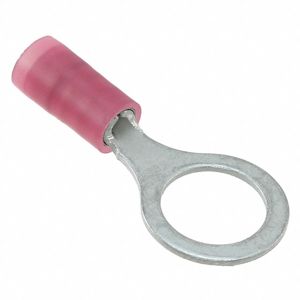

0190730028
CONN RING CIRC 18-22AWG #5/16

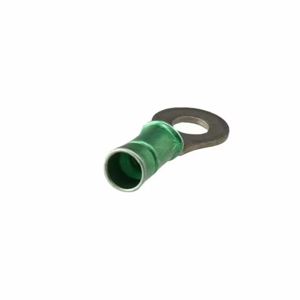

2-322873-5
CONN RING CIRC 16-22AWG #6 CRIMP
