Terminals - Ring Connectors
Terminals - Ring Connectors: Secure and Reliable Electrical Connections
Definition:
Terminals - Ring Connectors are a specialized type of electrical connector designed to create secure, permanent, or semi-permanent connections in wiring systems. These connectors feature a circular (ring-shaped) terminal that is crimped or soldered to a wire and then fastened to a stud or post using a screw or bolt. They are widely used in applications requiring robust, vibration-resistant connections.
Types of Ring Connectors:
1. Insulated vs. Non-Insulated: Insulated ring terminals have a plastic sleeve for added protection against short circuits, while non-insulated types are ideal for compact spaces.
2. Material Options: Available in copper, brass, or tin-plated variants for corrosion resistance and optimal conductivity.
3. Size Variations: Sizes range from small (e.g., 22-16 AWG) for electronics to large (e.g., 6-2 AWG) for automotive or industrial power systems.
4. Stud Hole Diameter: Standard sizes include 1/4", 5/16", and 3/8" to match different stud dimensions.
Purchasing Recommendations:
- Match Wire Gauge: Ensure the terminal s AWG rating corresponds to your wire size for a secure crimp.
- Environment Considerations: Choose insulated terminals for exposed or high-moisture environments and corrosion-resistant materials for harsh conditions.
- Tool Compatibility: Use a quality crimping tool to avoid loose connections, which can lead to overheating.
- Certifications: Look for UL, CSA, or RoHS compliance for safety and environmental standards.
Ideal for automotive, marine, industrial, and DIY projects, ring connectors provide a dependable solution for high-current and vibration-prone applications. Invest in the right type to ensure long-term electrical reliability.
Filter and sort
Categories

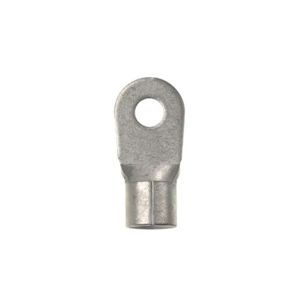

P8-38R-Q
CONN RING CIRC 8AWG #3/8 CRIMP

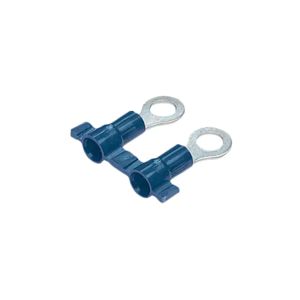

PV14-10RB-3K
CONN RING CIRC 14-16AWG #10

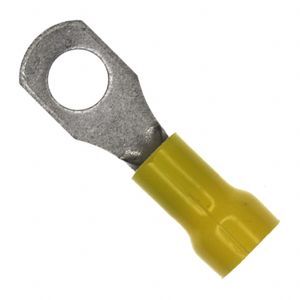

55678-1
CONN RING FLAT 10-12AWG #1/4
0191930113
CONN RING CIRC 10-12AWG M5 CRIMP

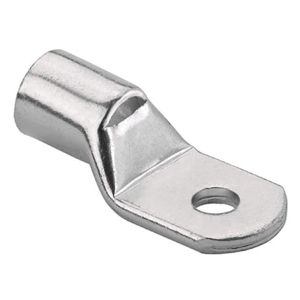

LCMA35-6-C
CONN TERM RECT RING 35MM #M6

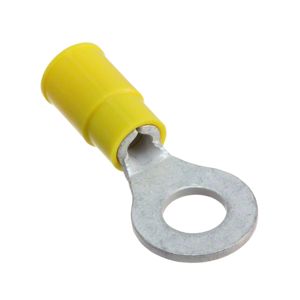

0190540097
CONN RING CIRC 14-16AWG #1/4

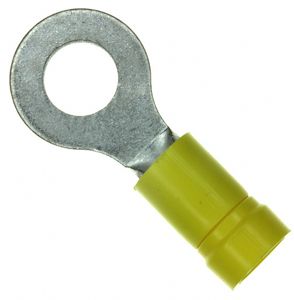

PV10-14R-D
CONN RING CIRC 10-12AWG #1/4
2-34122-1
CONN RING CIRC 14-16AWG #8 CRIMP

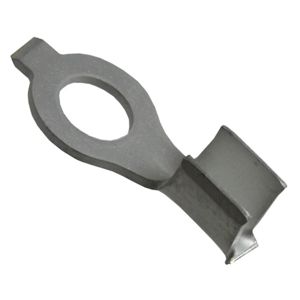

42111-2
CONN RING CIRC 14-18AWG #8 CRIMP

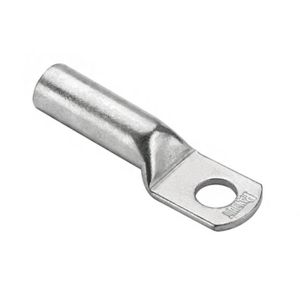

LCMB120-10-X
CONN TERM RECT RING 120MM #M10

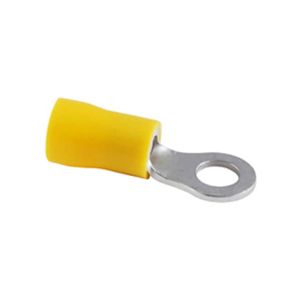

76-IRT12-10
PVC INS RING TERM 12-10WG

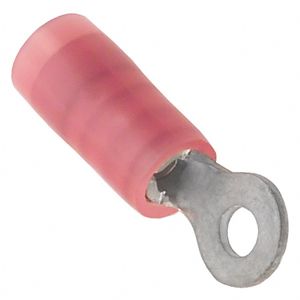

0190730005
CONN RING CIRC 18-22AWG #2 CRIMP

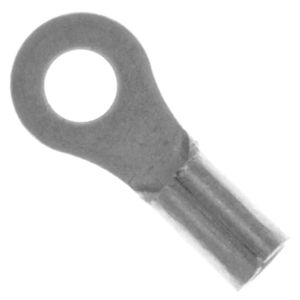

31423
CONN RING CIRC 22-26AWG #0 CRIMP

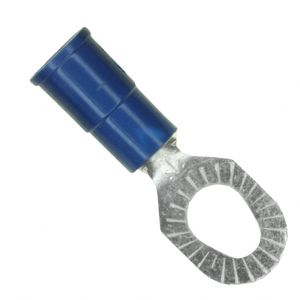

MV14-610RK
CONN RING MULT STUD 14-16AWG
P8-56R-T
CONN RING CIRC 8AWG #5/16 CRIMP

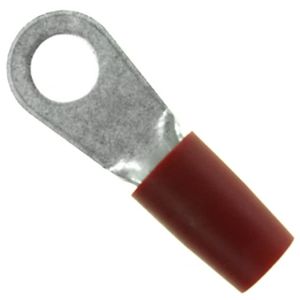

324082
CONN RING CIRC 8AWG #1/4 CRIMP

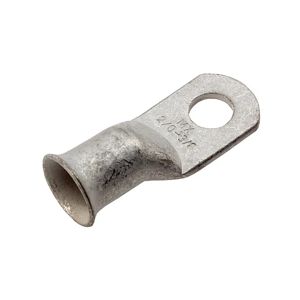

0192210244
CONN RING FLAT 2/0AWG #3/8 CRIMP
640051-1
CONN RING CIRC 14-18AWG #8 CRIMP

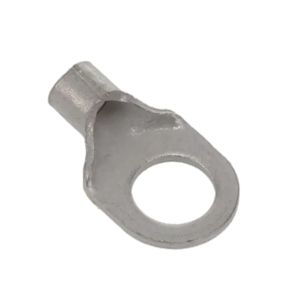

34487-2
CONN RING CIRC 12-14AWG #1/4

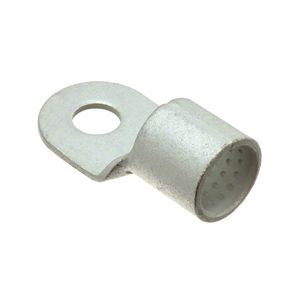

1958311-1
CONN RING CIRC 3/0AWG CRIMP
