Terminals - Ring Connectors: Secure and Reliable Electrical Connections
Definition:
Terminals - Ring Connectors are a specialized type of electrical connector designed to create secure, permanent, or semi-permanent connections in wiring systems. These connectors feature a circular (ring-shaped) terminal that is crimped or soldered to a wire and then fastened to a stud or post using a screw or bolt. They are widely used in applications requiring robust, vibration-resistant connections.
Types of Ring Connectors:
1. Insulated vs. Non-Insulated: Insulated ring terminals have a plastic sleeve for added protection against short circuits, while non-insulated types are ideal for compact spaces.
2. Material Options: Available in copper, brass, or tin-plated variants for corrosion resistance and optimal conductivity.
3. Size Variations: Sizes range from small (e.g., 22-16 AWG) for electronics to large (e.g., 6-2 AWG) for automotive or industrial power systems.
4. Stud Hole Diameter: Standard sizes include 1/4", 5/16", and 3/8" to match different stud dimensions.
Purchasing Recommendations:
- Match Wire Gauge: Ensure the terminal s AWG rating corresponds to your wire size for a secure crimp.
- Environment Considerations: Choose insulated terminals for exposed or high-moisture environments and corrosion-resistant materials for harsh conditions.
- Tool Compatibility: Use a quality crimping tool to avoid loose connections, which can lead to overheating.
- Certifications: Look for UL, CSA, or RoHS compliance for safety and environmental standards.
Ideal for automotive, marine, industrial, and DIY projects, ring connectors provide a dependable solution for high-current and vibration-prone applications. Invest in the right type to ensure long-term electrical reliability.
Filter and sort
Categories

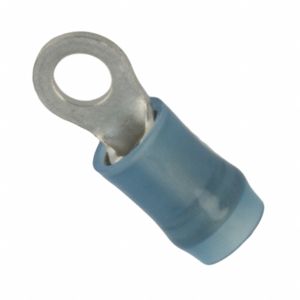

8-320619-1
CONN RING CIRC 14-16AWG #6 CRIMP

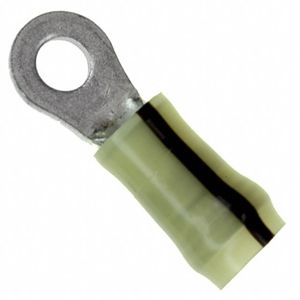

8-35106-2
CONN RING CIRC 14-16AWG #8 CRIMP
LCMA35-8F-C
CONN TERM RECT RING 35MM #M8

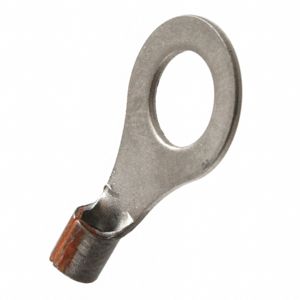

322339
CONN RING CIRC 14-16AWG #1/4

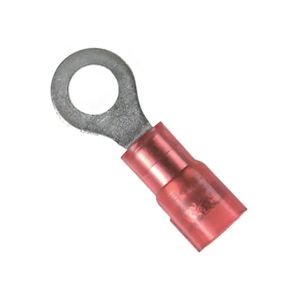

PNF18-14R-C
CONN RING CIRC 18-22AWG #1/4

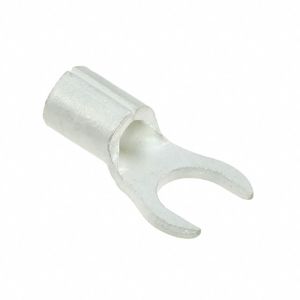

321289
CONN RING SLOTTED 16-22AWG #6

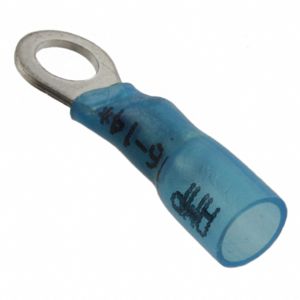

8-55852-2
CONN RING CIRC 14-16AWG #10

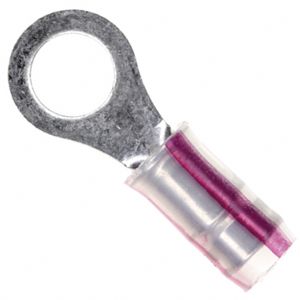

8-53409-1
CONN RING CIRC 16-22AWG #10

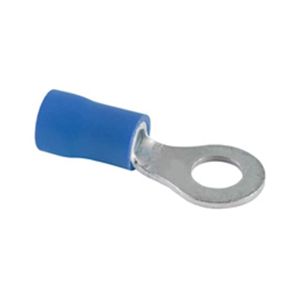

76-IRT16-08L
PVC ISN RING TERM 16-14WG 50 BAG

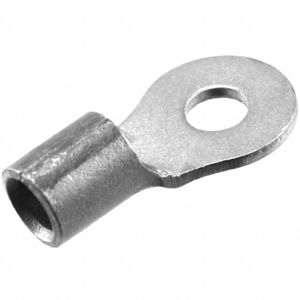

323059
CONN RING CIRC 10-12AWG #6 CRIMP

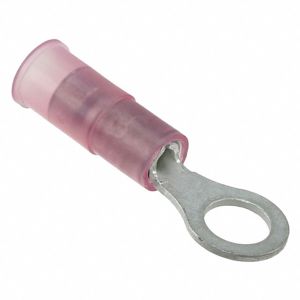

0190570011
CONN RING CIRC 18-22AWG #10

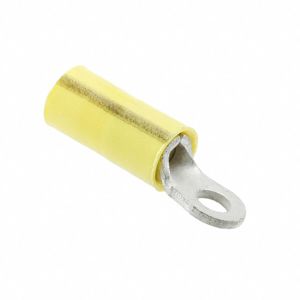

34821
CONN RING CIRC 14-16AWG #6 CRIMP

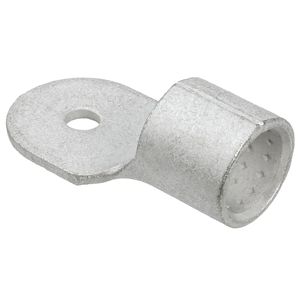

0191930374
CONN RING FLAT 4/0AWG #1/4 CRIMP

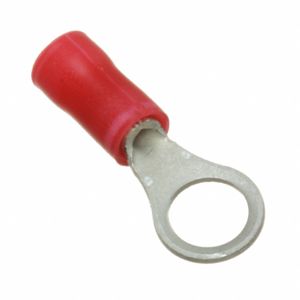

342104-1
CONN RING CIRC 16-22AWG M5 CRIMP

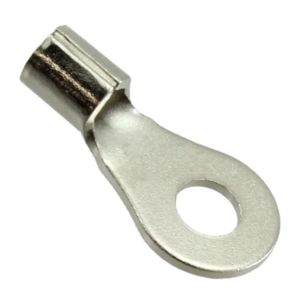

0192030493
CONN RING CIRC 10-12AWG #6 CRIMP

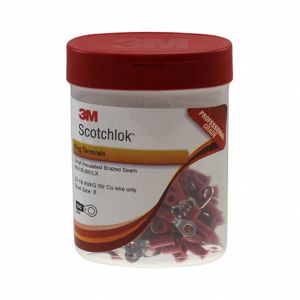

MV18-8R/LX-BOTTLE
CONN RING CIRC 18-22AWG #8 100PC

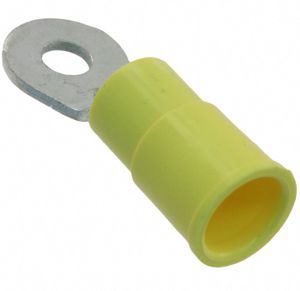

MV10-6RX-BOTTLE
CONN RING CIRC 10-12AWG #6 50PC

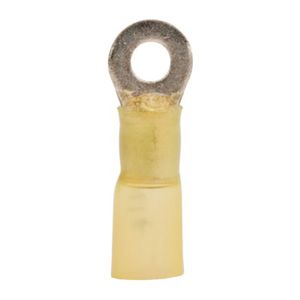

94848
CONN RING CIR 10-12AWG 3/8 1=1PC

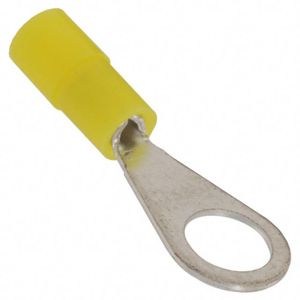

MN24-8RK
CONN RING CIRC 24-26AWG #8 CRIMP

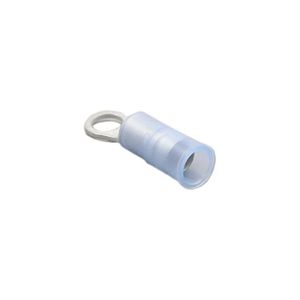

0190570056
RING AVIKRIMP (B-523-08)
