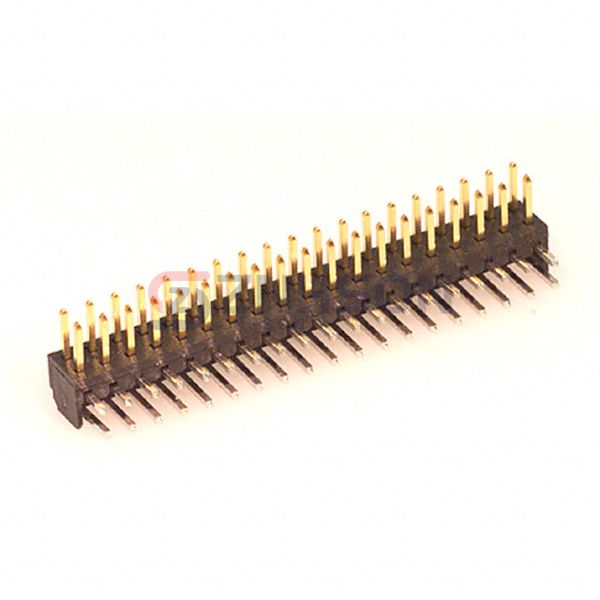

0877603816

Molex

Manufacturer

Molex

Description:

CONN HEADER R/A 38POS 2MM

Datasheet:

0877603816 Datasheet

$1.67

Available to order

Reference Price (USD)

$1.66531

500+

$1.6486569

1000+

$1.6320038

1500+

$1.6153507

2000+

$1.5986976

2500+

$1.5820445

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 0877603816 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.079" (2.00mm)
Number of Positions: 38
Number of Rows: 2
Row Spacing - Mating: 0.079" (2.00mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.157" (4.00mm)
Contact Length - Post: 0.102" (2.60mm)
Overall Contact Length: -
Insulation Height: 0.169" (4.30mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: -
Operating Temperature: -
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): -
Voltage Rating: -
