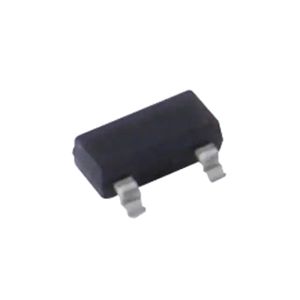

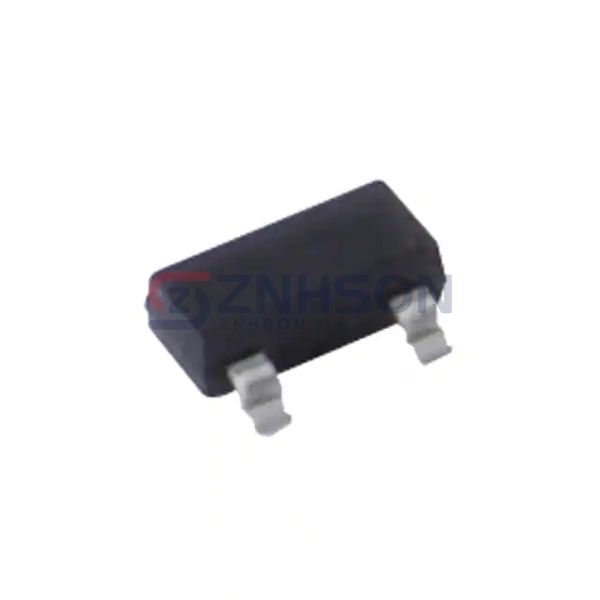

2N7002
NTE Electronics, Inc
NTE Electronics, Inc
MOSFET N-CHANNEL 60V 115MA SOT23
$0.28
Available to order
Reference Price (USD)
3,000+
$0.06629
6,000+
$0.05794
15,000+
$0.04959
30,000+
$0.04681
75,000+
$0.04402
150,000+
$0.03846
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2N7002 single MOSFET from NTE Electronics, Inc is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the 2N7002 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 115mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 7.5Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: -
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 50 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 200mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-3
- Package / Case: TO-236-3, SC-59, SOT-23-3
